MEASUREMENT FOUNDATION

GroundDrill - 3

4. Assembly

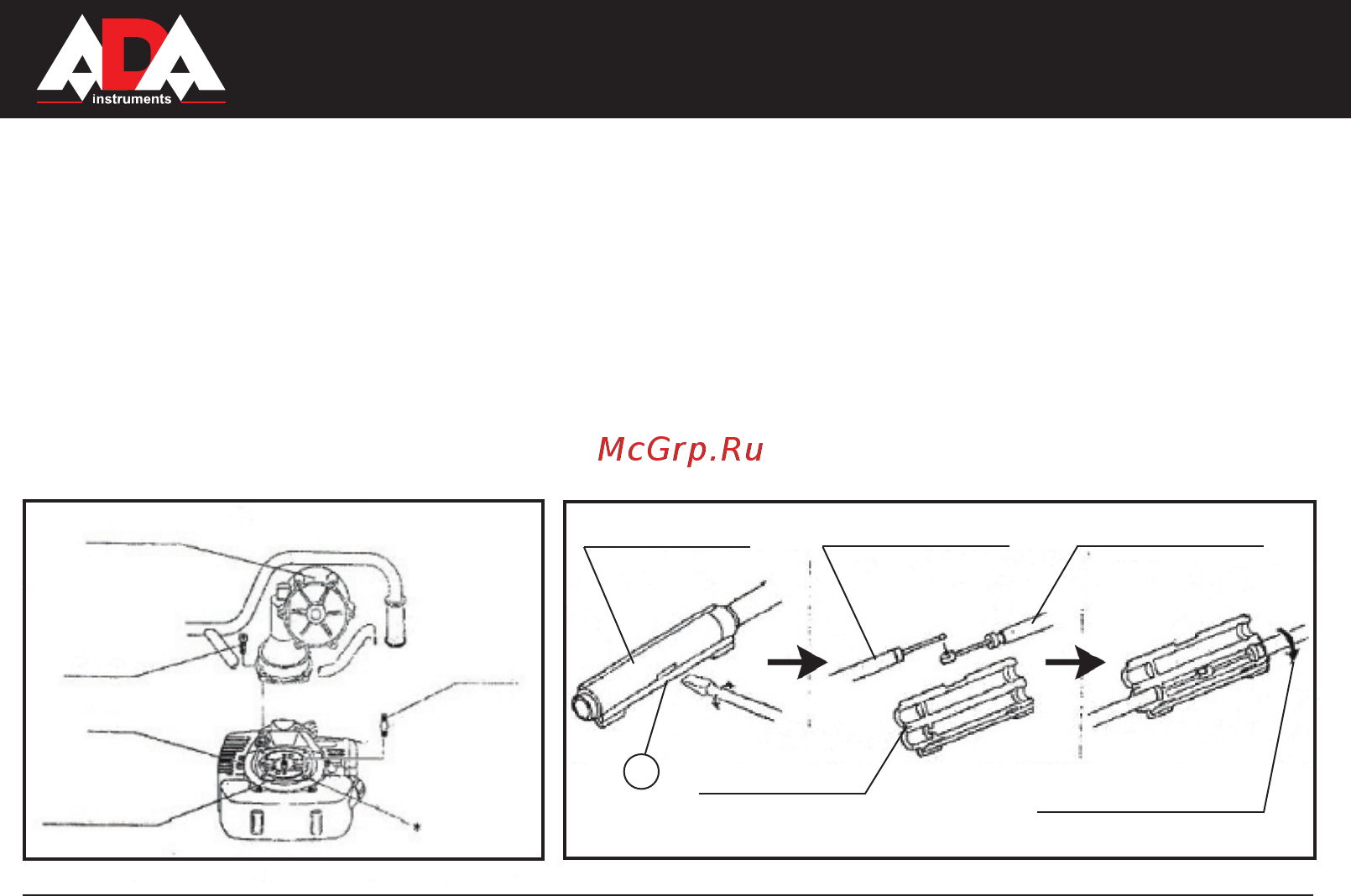

1) Gear case-to engine (Pic.1)

Gear case

Bolt x 3

Engine

Clutch shoe

Stud x 1

Pic.1

Pic.2

- Work open the connector case using a slotted

screwdriver at point A, and remove the case.

- Connect the throttle wire end on the e n g i n e

side to its counterpart on the gear case side.

- Reattach the connector case.

- Close the case securely.

- Lay the engine on the ground with the clutch

shoe facing upwards. Screw the stud into the

marked hole (1 spot only).

- Set the gear case on the engine and loosely

tighten the stud and nut.

- Screw the other 3 bolts into the remaining

3 holes, then tighten all 4 bolts securely and

evently.

2) Throttle wire engine-to-gear case connection (Pic.2)

Connector case

Throttle wire

(gear case side)

Throttle wire

(engine side)

Close in this direction
