MEASUREMENT FOUNDATION
GroundDrill - 3
7
Pic.4

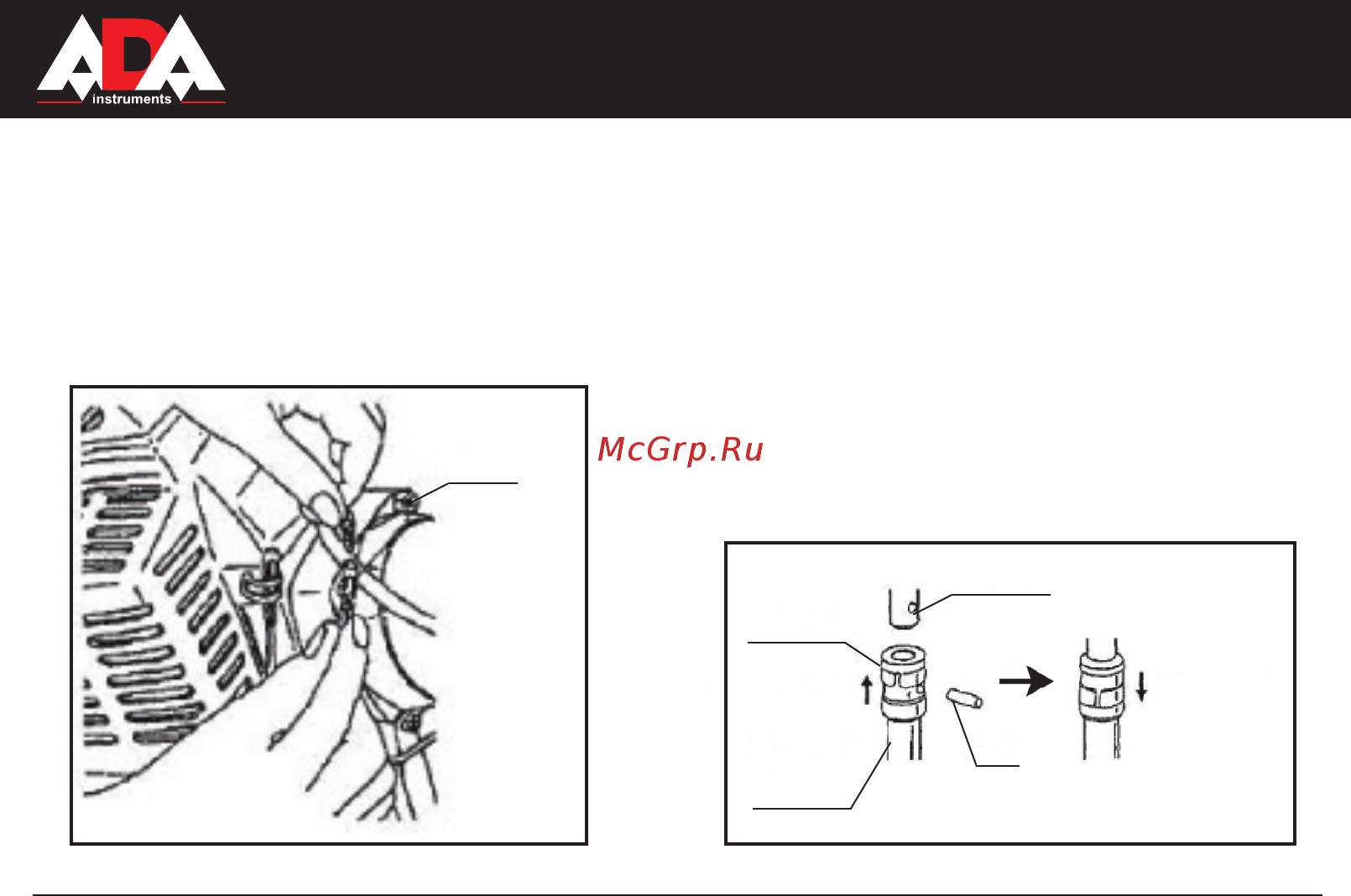

3) Wiring leads (Pic.3)
Connect the leads (x2) between the
engine and gear case. Make sure col-
ors are match and connections are se-
curely tight.
4) Drill-to-gear case (Pic.4)
- Slide the clip band urward and pull
the pin out from its hole.
- Align the pin holes on the gear shaft
and drill shank, and insert the drill
over the shaft.
- Reinsert the pin through the pin hole
and lower the band until the hole is
covered.
Gear shaft
Clip band
Slide the
band
upwards
Drill shank
Pin
Slide the
clip band
downwards
Leads
Pic.3
