CUEMIX FX
69
reverb Split Point is set to Mix to eliminate the
possibility for feedback loops created by reverb
send/return loops. See “Split point” on page 83.
The output reverb return (Figure 10-6) feeds the
output of the UltraLite-mk3’s global reverb
processor directly to the output. This includes any
other signals currently being fed to the reverb.
Both the send and return occur after EQ and
dynamics processing, but before listenback and
talkback.
Talkback/Listenback
Click the Ta lkback or Listenback buttons
(Figure 10-6) to toggle whether the output pair is
included in the Talkback or Listenback group. See
“Talkback and listenback” on page 85.
Monitor group assign
Click the Monitor buttons (Figure 10-6) to toggle
whether the output pair is included in the Monitor
group. See “The Monitor Group” on page 84.

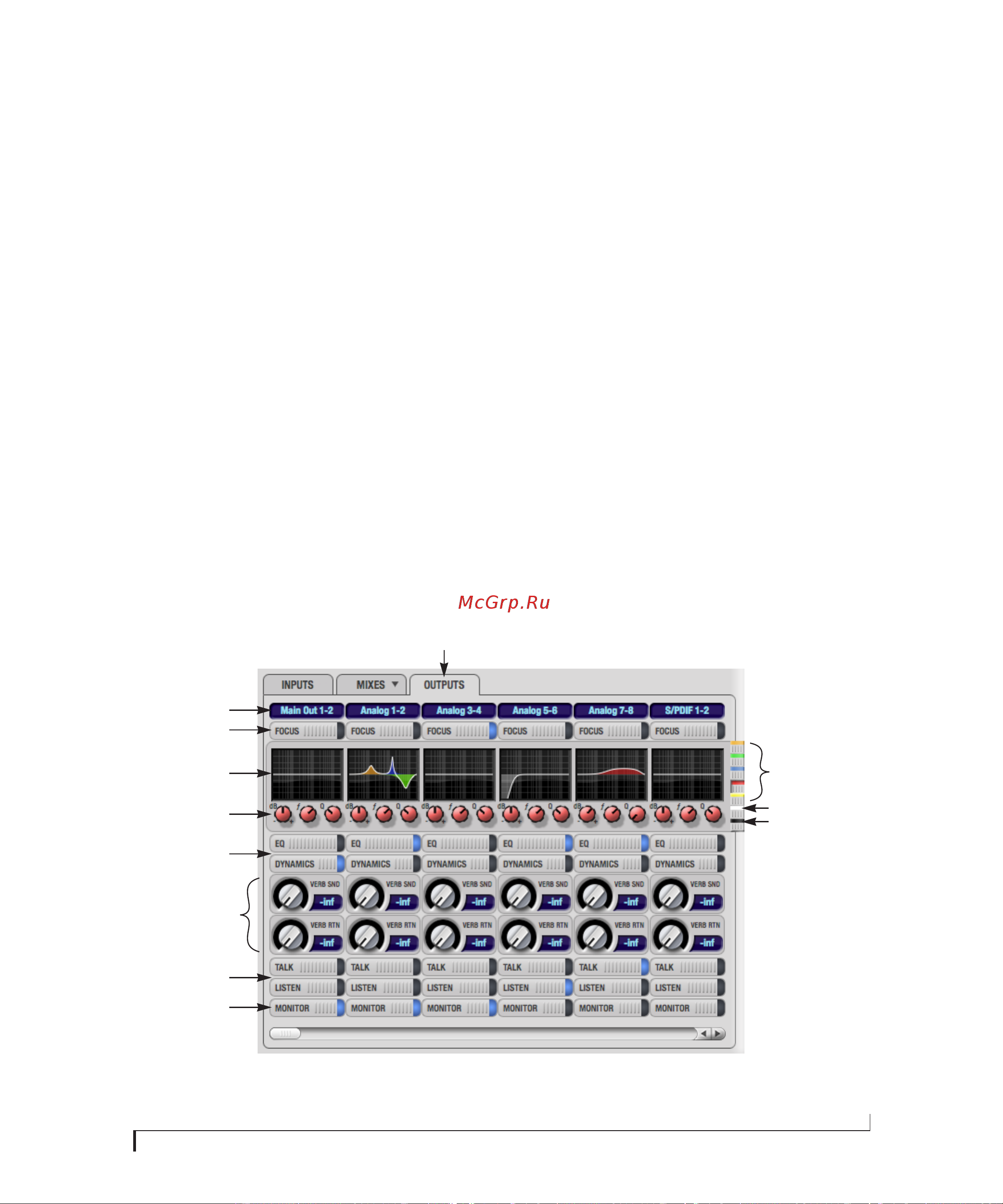

Figure 10-6: The Outputs tab.
Output name
Channel focus
Outputs tab
EQ band selectors
LP/HP filter selector
Compressor selector
EQ/Dynamics graph
EQ/Dynamics controls
EQ/Dynamics
enable/disable
Output reverb
send/return
Talkback/listenback
enable/disable
Monitor group assign
