19 TASCAM GT-R1
3–Part Names and Functions

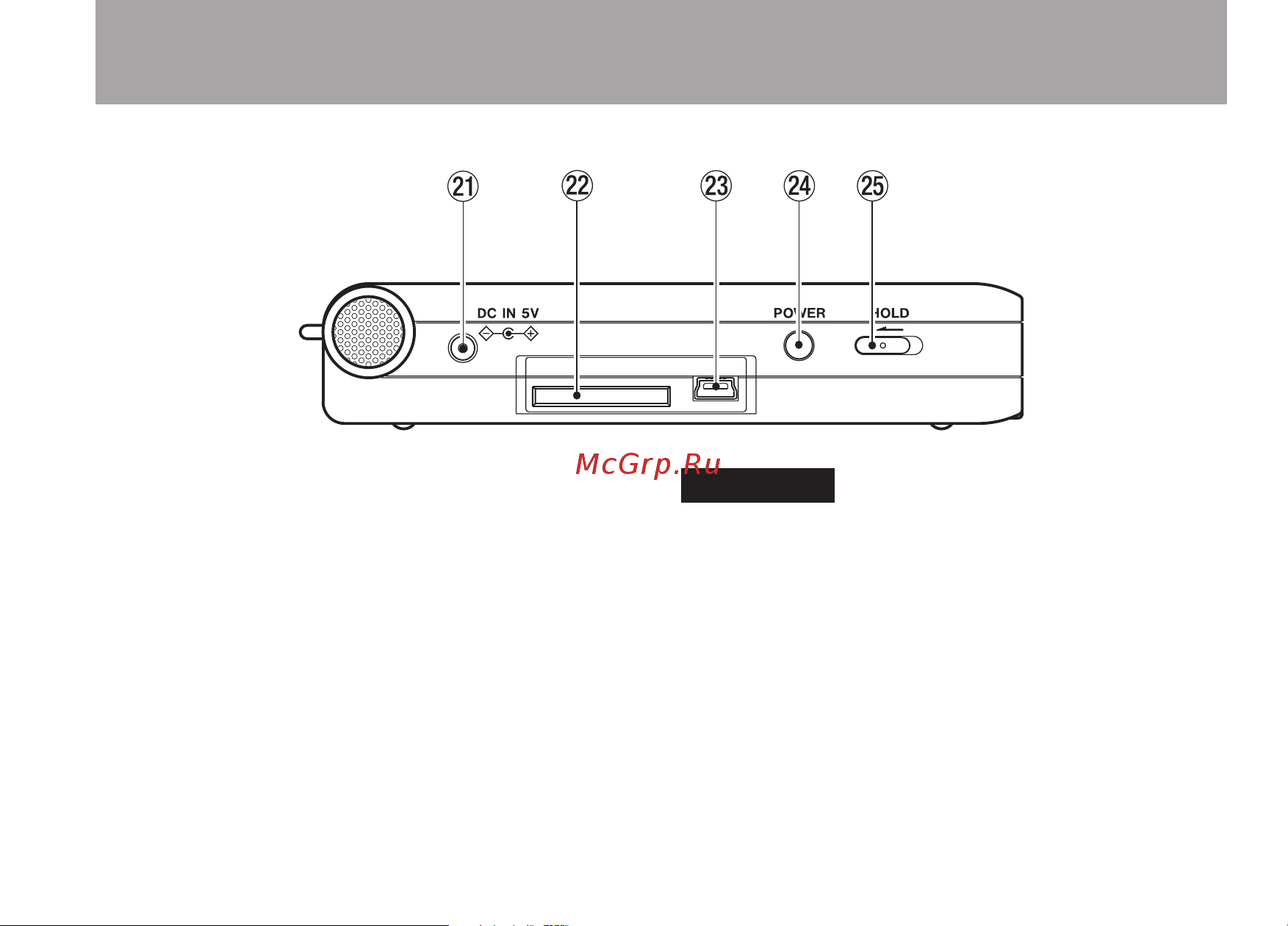

Left side panel
a DC IN 5V jack
Connect a TASCAM PS-P520 AC adapter
(purchased separately) to this jack.
s SD card slot
Insert an SD card into this slot. (See “About
SD cards” on page 7.)
d USB port
Use the included USB cable to connect with a
computer USB port. (See “Connecting with a
computer” on page 36.)
CAUTION
Please connect the unit directly to a computer
without using a USB hub.
f POWER key
Press and hold this key to turn the unit’s
power ON and OFF.
g HOLD switch
Slide this to the left to turn the hold function
ON. All keys are inoperative when hold is ON.
