25 TASCAM GT-R1

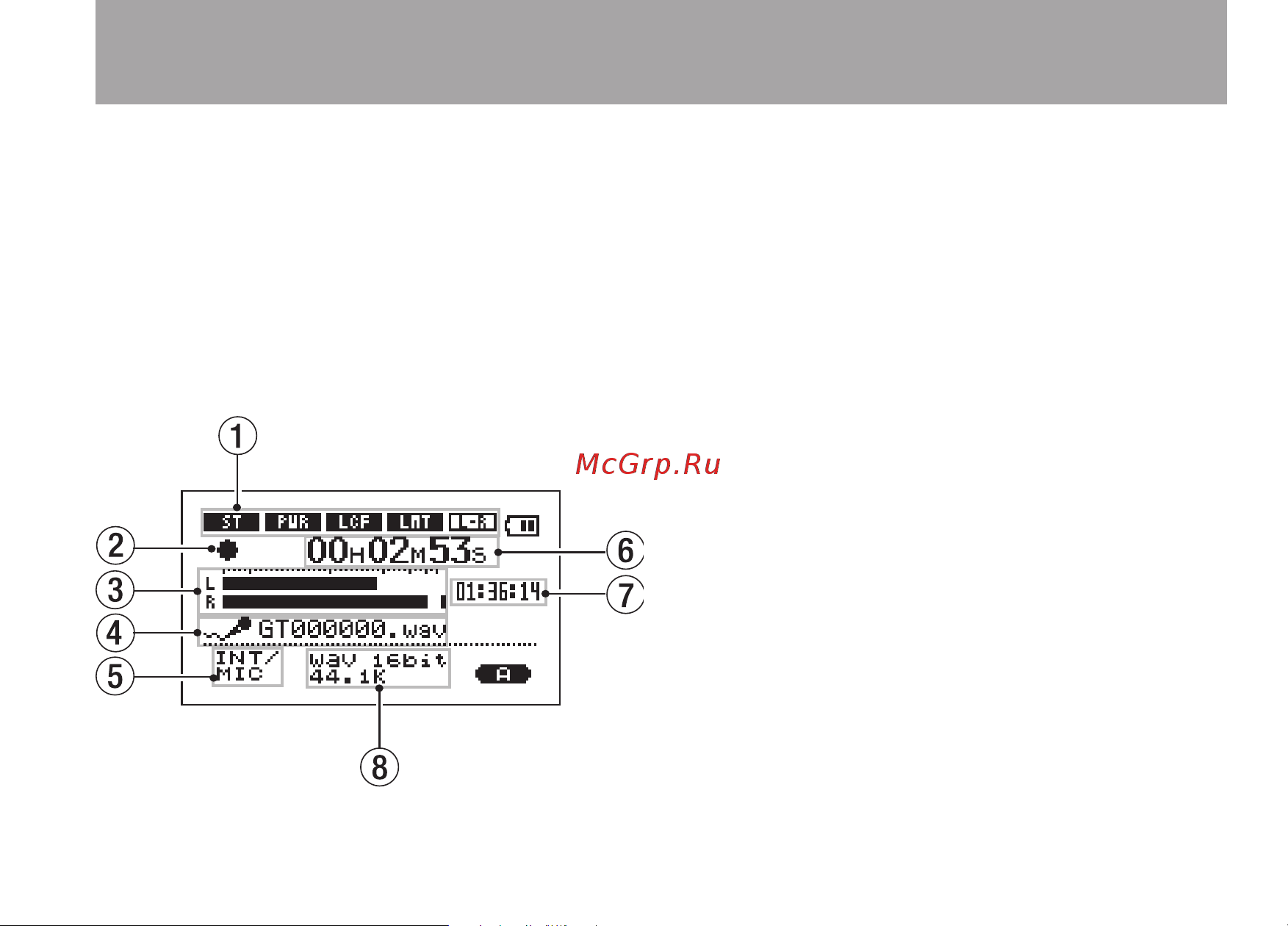

Record Screen
This screen opens when you press the REC/PAUSE
key to start recording standby mode and stays open
when you press the REC/PAUSE key again to start
recording.
This status of the power and the effect use appears
the same as on the Home Screen. This screen also
shows the following.
1 INT/MIC IN setting status
Shows the status of settings related to the
built-in microphone and MIC IN (stereo
recording, plug-in power, low cut filter, level
control and LR swap).
2 Recorder operation
º Recording
π Recording paused
ª Recording stopped
3 Record level meter
The input signal level of the selected input
appears as separate L and R channels.
4 File name
Shows the file name that is automatically
assigned to the file being recorded.
5 Input selection
Shows the input source.
6 Elapsed recording time
The elapsed recording time of the track
appears as hours: minutes: seconds. During
