36 TASCAM GT-R1
6–Making Connections

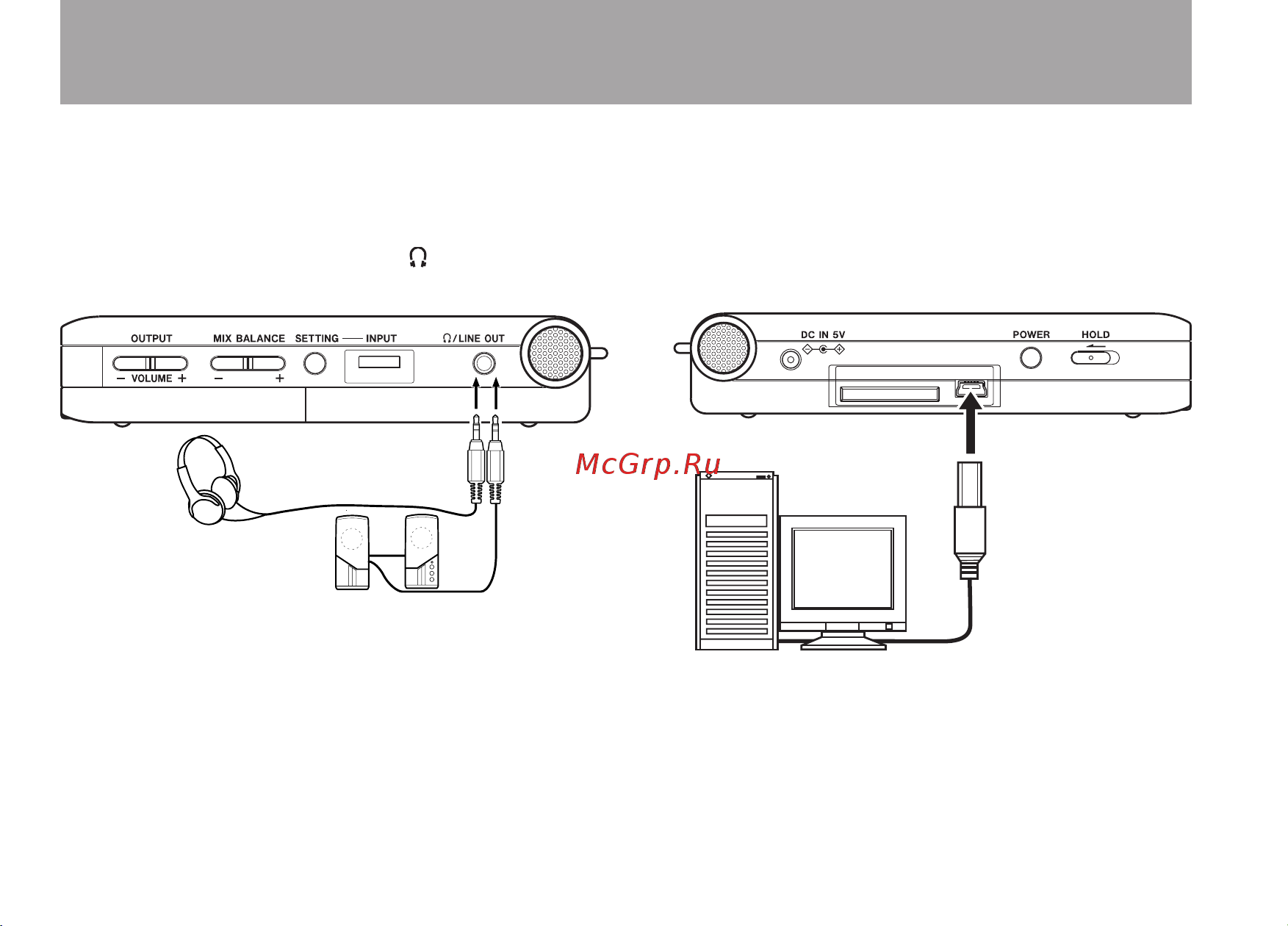

Connecting monitors
Connect headphones, speakers with built-in
ampliers, an amp and speaker system or other
monitoring system to the GT-R1 /LINE OUT jack.
Headphones
Speakers with built-in amplifiers,
stereo systems, etc.
Connecting with a computer
By connecting this unit with a computer, you can
copy WAV or MP3 music les from the computer
to this unit. From the computer you can also erase
les on this unit and manipulate folders.
Computer
USB
To connect to a computer, open the left side panel
cover and use the included USB cable to connect
the USB ports of the GT-R1 and the computer.
When connected, “
USB connected
” appears
on the GT-R1 screen.
