11
EN
DE
ES
FR
IT
JP

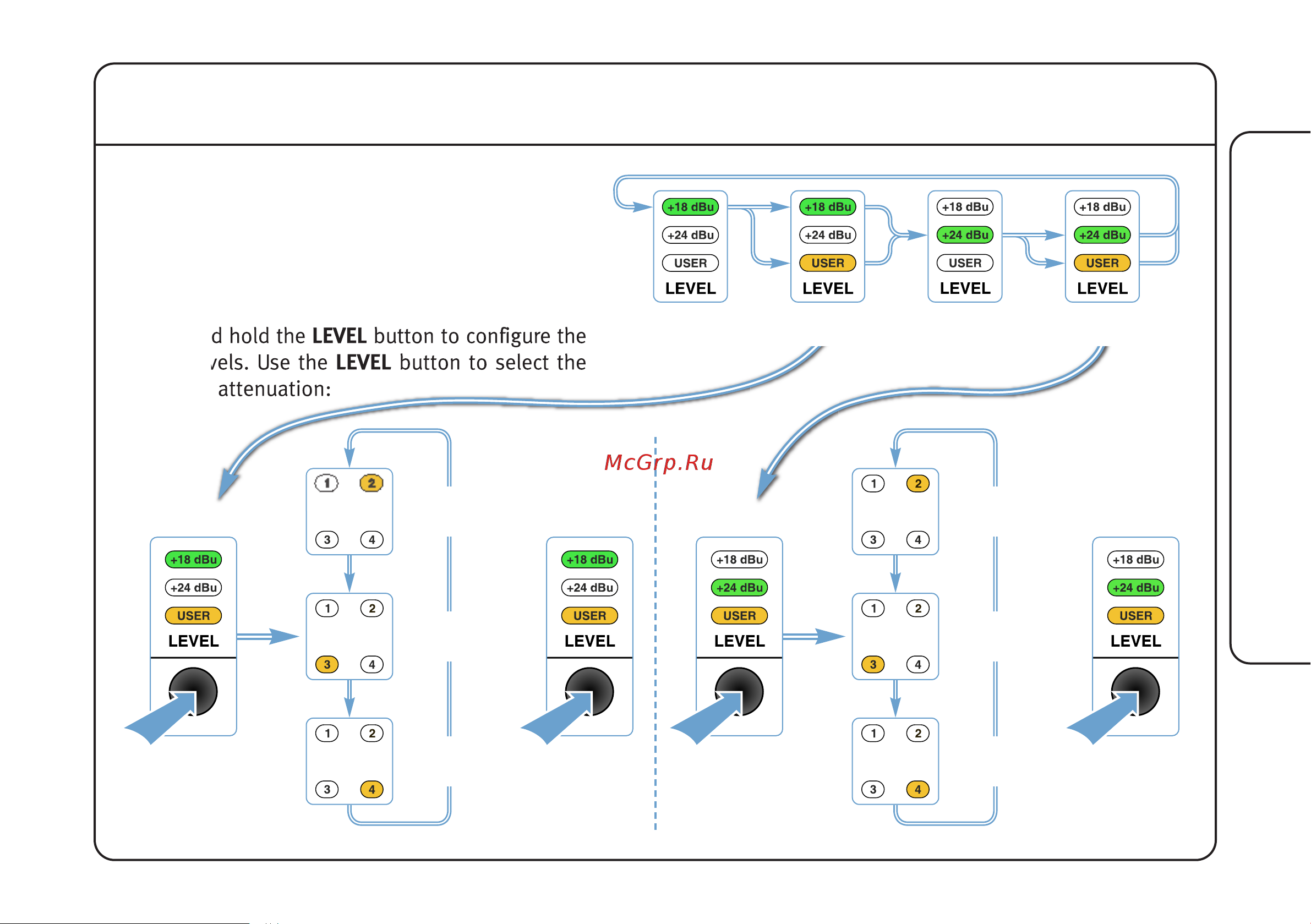

Analogue Level (‘LEVEL’ Button)
MX 16 can work at either of the ‘standard’ operating
levels; +18dBu or +24dBu = 0dB FS. Alternatively
one of a number of user-selectable levels between
+14dBu and +22dBu may be chosen.
• Press the LEVEL button to select the correct level.
• Press and hold the LEVEL button to configure the
USER levels. Use the LEVEL button to select the
required attenuation:
~2sec
(to set)
+18dBu +14dBu ~ +16dBu +24dBu +20dBu ~ +22dBu
+16dBu
(+18dBu – 2dB)
+15dBu
(+18dBu – 3dB)
+14dBu
(+18dBu – 4dB)
~2sec
(to store)
~2sec
(to set)
+22dBu
(+24dBu – 2dB)
+21dBu
(+24dBu – 3dB)
+20dBu
(+24dBu – 4dB)
~2sec
(to store)
