18

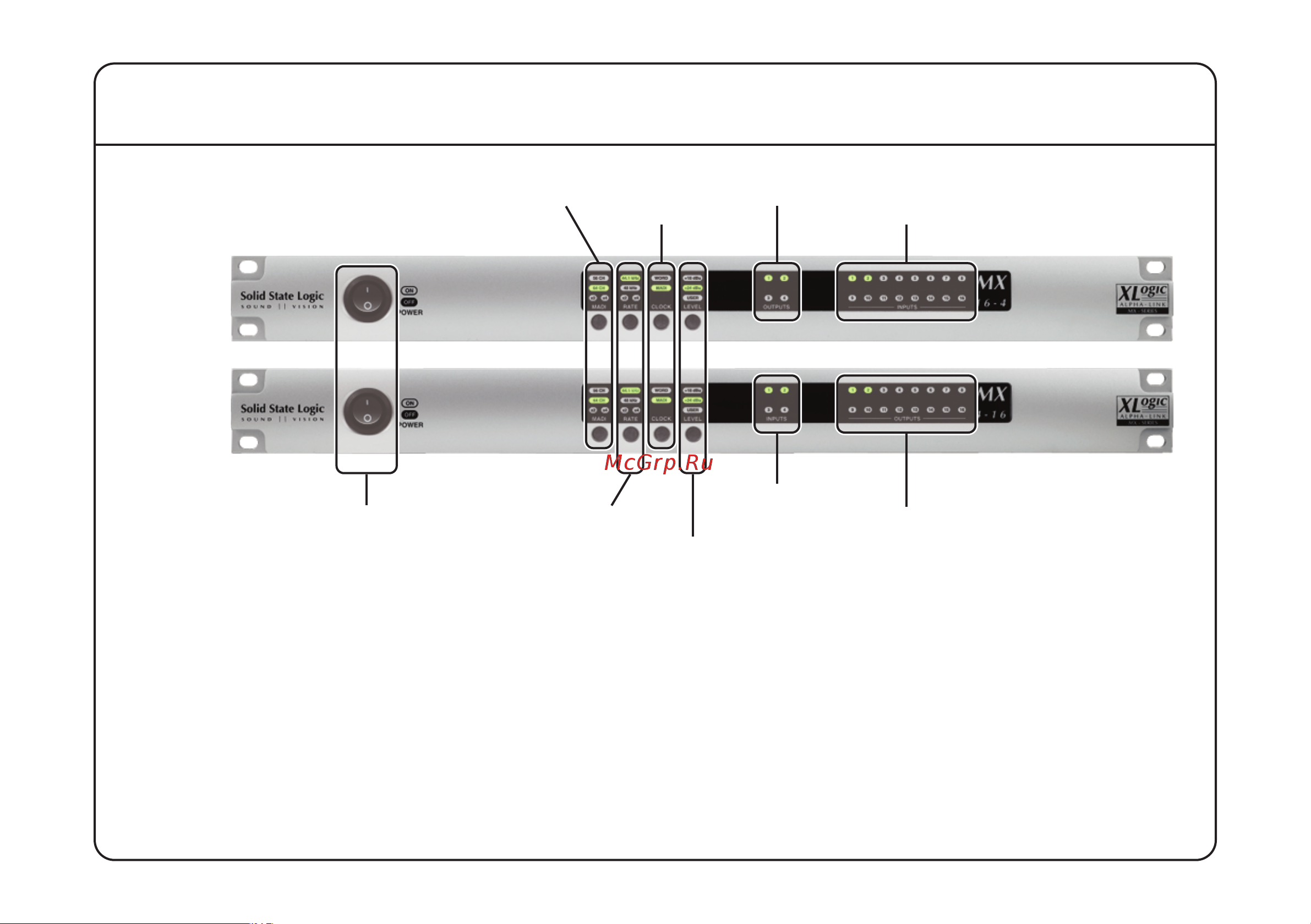

Vorderansicht
Schalter
Netzschalter: Netz Ein-/Ausschalter.
MADI Modus: MADI Modus Wahlschalter, Einstellungen müssen mit dem angeschlossenen System identisch sein.
Sample Rate: Sample Rate Wahlschalter, Einstellungen müssen zu angeschlossenem System passend
vorgenommen werden.
Clock Quelle: Auswahlschalter für die Clock Quelle. Mögliche Einstellungen sind Intern, Worclock oder MADI
Clock.
Analog Pegel: Umschaltung der Analog Pegel zwischen 0dB Fs= +24dBu und +18dBu, oder frei wählbar zwischen
+14dBu und +22dBu.
Netzschalter
Alpha-Link
MX 16-4
Alpha-Link
MX 4-16
Pegelanzeigen
Eingänge
Pegelanzeigen
Ausgänge
Pegelanzeigen
Eingänge
Pegelanzeigen
Ausgänge
Clock Quelle
Analog Pegel
MADI Modus
Sample Rate
