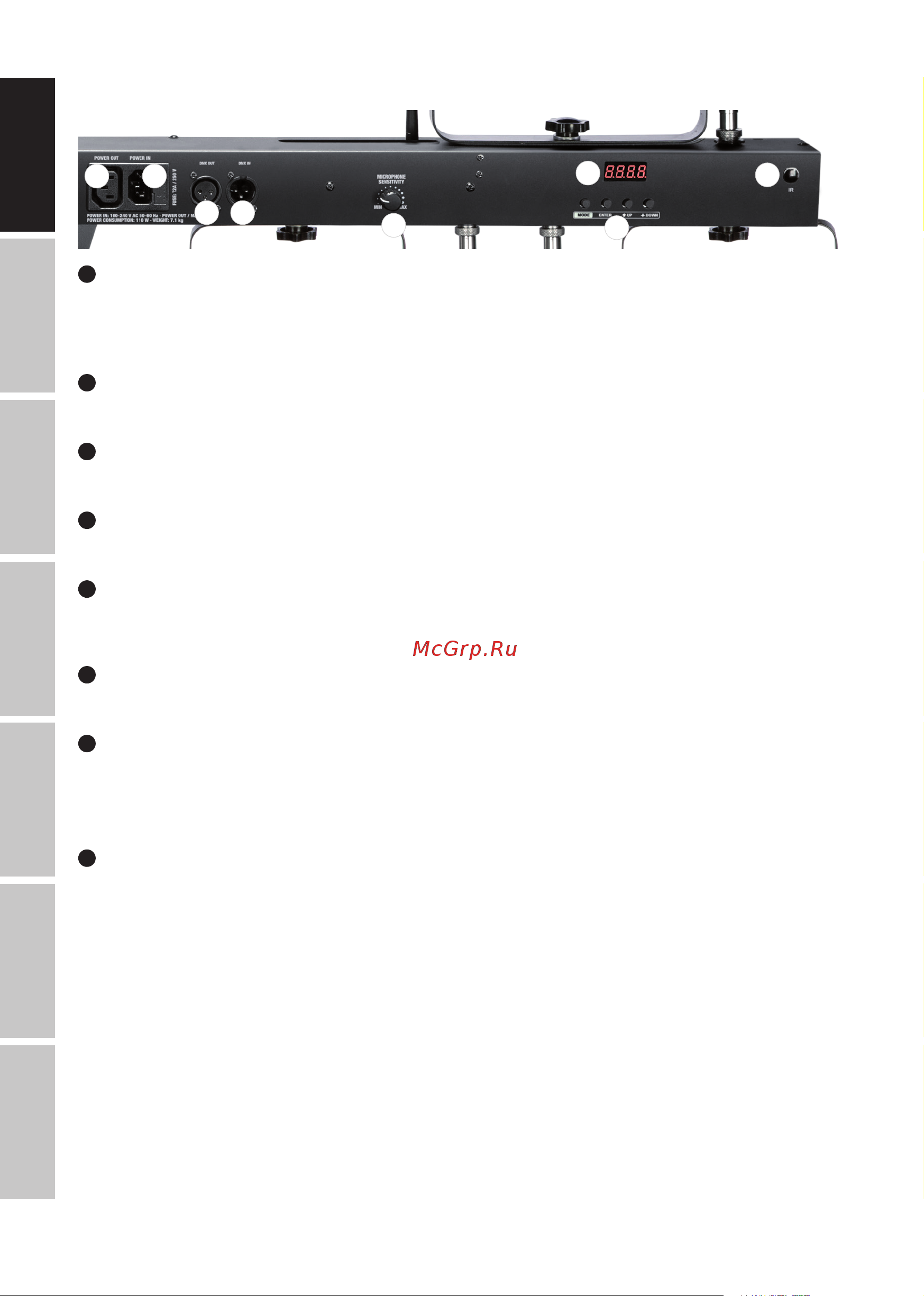

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS

POWER IN

IEC mains socket with built-in fuse holder. Connection via the supplied IEC mains coble.

IMPORTANT: Replace the fuse only with a fuse of the same type and value. In the event of repeated fuse failure, please contact an author-

ised service centre.

POWER OUT

IEC power output socket. Facilitates power supply to other CAMEO spotlights (max. current draw 5A).

DMX IN

Male 3-pin XLR socket for connection to a DMX control device (e.g. DMX console)

DMX OUT

Female 3-pin XLR socket for sending the DMX control signal.

MIC SENSITIVITY

Control dial for setting the microphone sensitivity in standalone sound-control model and in DMX sound-control mode. Turn anti-clockwise

to reduce sensitivity and clockwise to increase sensitivity.

LED DISPLAY

The four-digit LED display shows the operating mode and other system information.

CONTROL BUTTONS

MODE: Press MODE to go up one level in the menu structure to the main display.

ENTER: Move down one level in the menu structure. Conﬁrms mode selection, programme selection and value changes.

UP and DOWN: Selection of main menu items, programme selection, value changes such as programme speed and DMX address.

IR SENSOR

Infrared sensor for control via IR remote control (included).
