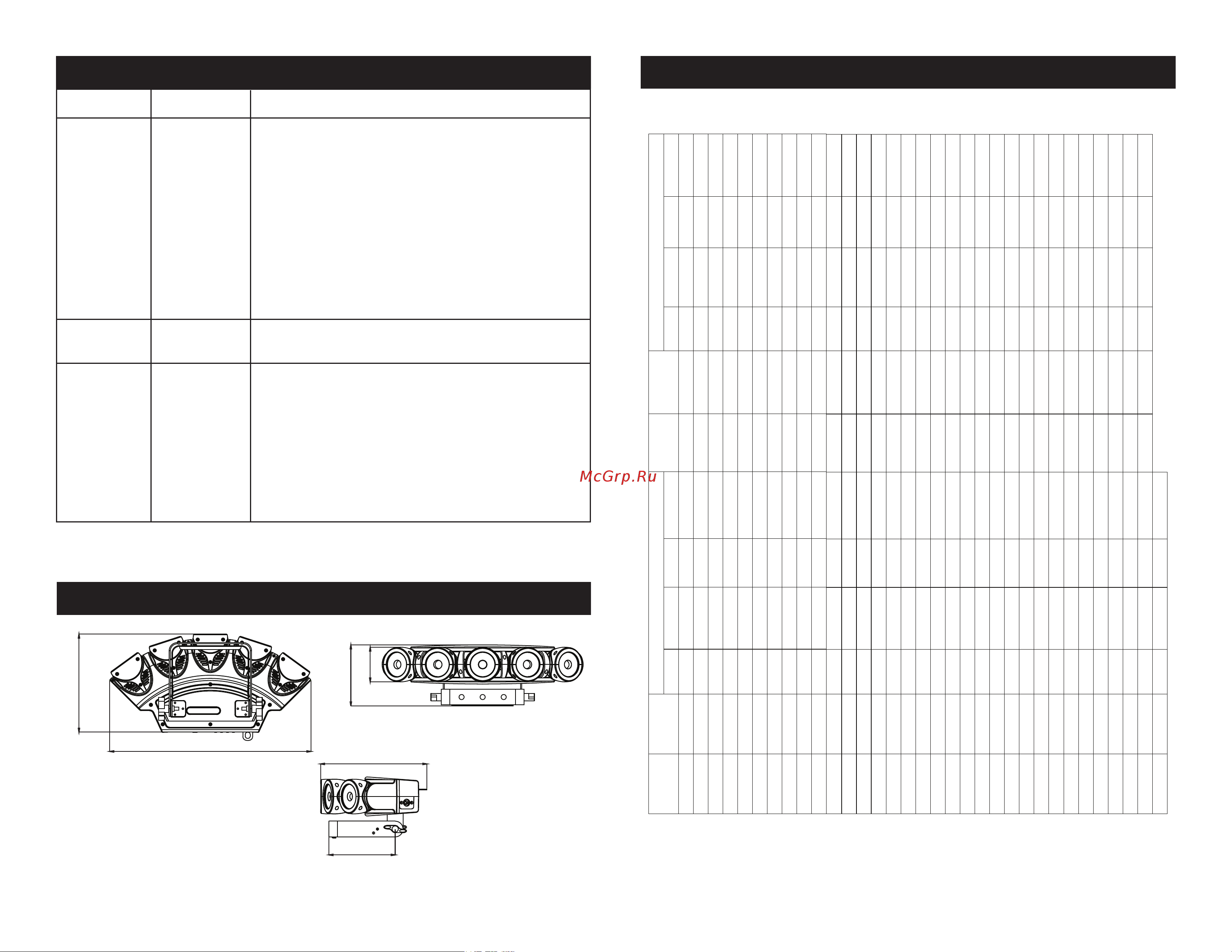

ADJ Products, LLC - www.adj.com - Penta Pix Instruction Manual Page 20 ADJ Products, LLC - www.adj.com - Penta Pix Instruction Manual Page 21
Channel Value Function
25 STROBING
0 - 31 OFF
32 - 63 LED ON
64 - 95 STROBING SLOW - FAST
96 - 127 LED ON
128 - 159 PULSE STROBING SLOW - FAST
160 - 191 LED ON
192 - 223 RANDOM STROBING
224 - 255 LED ON
26 MASTER DIMMER
0 - 255 0% - 100%
27 DIMMER MODE
0 - 20 STANDARD
21 - 40 STAGE
41 - 60 TV
61 - 80 ARCHITECTURAL
81 - 100 THEATRE
101 - 255 DEFAULT DIMMER SETTING
Penta Pix 27 Channel Mode
Penta Pix Color Macro Chart
Color No. DMX
VAULE
RGBW COLOR INTENSITY Color No. DMX
VAULE
RGBW COLOR INTENSITY
RED GREEN BLUE WHITE RED GREEN BLUE WHITE
OFF 0 0 0 0 0 Color33 129-132 255 206 143 0
Color1 1-4 80 255 234 80 Color34 133-136 254 177 153 0
Color2 5-8 80 255 164 80 Color35 137-140 254 192 138 0
Color3 9-12 77 255 112 77 Color36 141-144 254 165 98 0
Color4 13-16 117 255 83 83 Color37 145-148 254 121 0 0
Color5 17-20 160 255 77 77 Color38 149-152 176 17 0 0
Color6 21-24 223 255 83 83 Color39 153-156 96 0 11 0
Color7 25-28 255 243 77 77 Color40 157-160 234 139 171 0
Color8 29-32 255 200 74 74 Color41 161-164 224 5 97 0
Color9 33-36 255 166 77 77 Color42 165-168 175 77 173 0
Color10 37-40 255 125 74 74 Color43 169-172 119 130 199 0
Color11 41-44 255 97 77 74 Color44 173-176 147 164 212 0
Color12 45-48 255 71 77 71 Color45 177-180 88 2 163 0
Color13 49-52 255 83 134 83 Color46 181-184 0 38 86 0
Color14 53-56 255 93 182 93 Color47 185-188 0 142 208 0
Color15 57-60 255 96 236 96 Color48 189-192 52 148 209 0
Color16 61-64 238 93 255 93 Color49 193-196 1 134 201 0
Color17 65-68 196 87 255 87 Color50 197-200 0 145 212 0
Color18 69-72 150 90 255 90 Color51 201-204 0 121 192 0
Color19 73-76 100 77 255 77 Color52 205-208 0 129 184 0
Color20 77-80 77 100 255 77 Color53 209-212 0 83 115 0
Color21 81-84 67 148 255 67 Color54 213-216 0 97 166 0
Color22 85-88 77 195 255 77 Color55 217-220 1 100 167 0
Color23 89-92 77 234 255 77 Color56 221-224 0 40 86 0
Color24 93-96 158 255 144 144 Color57 225-228 209 219 182 0
Color25 97-100 255 251 153 153 Color58 229-232 42 165 85 0
Color26 101-104 255 175 147 147 Color59 233-236 0 46 35 0
Color27 105-108 255 138 186 138 Color60 237-240 8 107 222 0
Color28 109-112 255 147 251 147 Color61 241-244 107 156 231 0
Color29 113-116 151 138 255 138 Color62 245-248 165 198 247 0
Color30 117-120 99 0 255 100 Color63 249-252 0 0 189 0
Color31 121-124 138 169 255 138 Color64 253-255 255 255 255 0
Color32 125-128 255 255 255 255
248.97mm/9.8”
510.7mm/20.1”
154.92mm/6.10”
88mm/3.46”
270.06mm/10.63”
168mm/6.61”
Penta Pix CAD Drawing
