Penta Pix Cleaning
Due to fog residue, smoke, and dust cleaning the internal and exter-
nal optical lenses must be carried out periodically to optimize light
output.
1. Use a soft cloth to wipe down the outside casing.
Cleaning frequency depends on the environment in which the fixture
operates (i.e. smoke, fog residue, dust, dew).
Listed below are a few common problems the user may encounter,
with solutions.
Unit not responding to DMX:
1. Check that the DMX cables are connected properly and are
wired correctly (pin 3 is “hot”; on some other DMX devices
pin 2 may be ‘hot’). Also, check that all cables are connected
to the right connectors; it does matter which way the inputs
and outputs are connected.
Unit does not respond to sound:
1. Quiet or high pitched sounds will not activate the unit.
If problems are not resolved; Contact ADJ Products, LLC for service.
1-800-322-6337
Penta Pix Trouble Shooting
Penta Pix Fuse Replacement
With this feature you can connect the xtures to one another
using the powerCON input and output sockets. The quantity
that can be connected is 13 xtures maximum for 120V, and 25
xtures maximum for 230V. After the maximum xtures has been
reached you will need to use a new power outlet. They must be
the same xtures. DO NOT mix xtures.
Penta Pix Power Cord Daisy Chain
Locate and remove the unit’s power cord. Once the cord has been
removed locate the fuse holder next to the powerCON input. Using a
flat head screwdriver, unscrew the fuse housing. Remove the bad fuse
and replace with a new one.
ADJ Products, LLC - www.adj.com - Penta Pix Instruction Manual Page 22 ADJ Products, LLC - www.adj.com - Penta Pix Instruction Manual Page 23

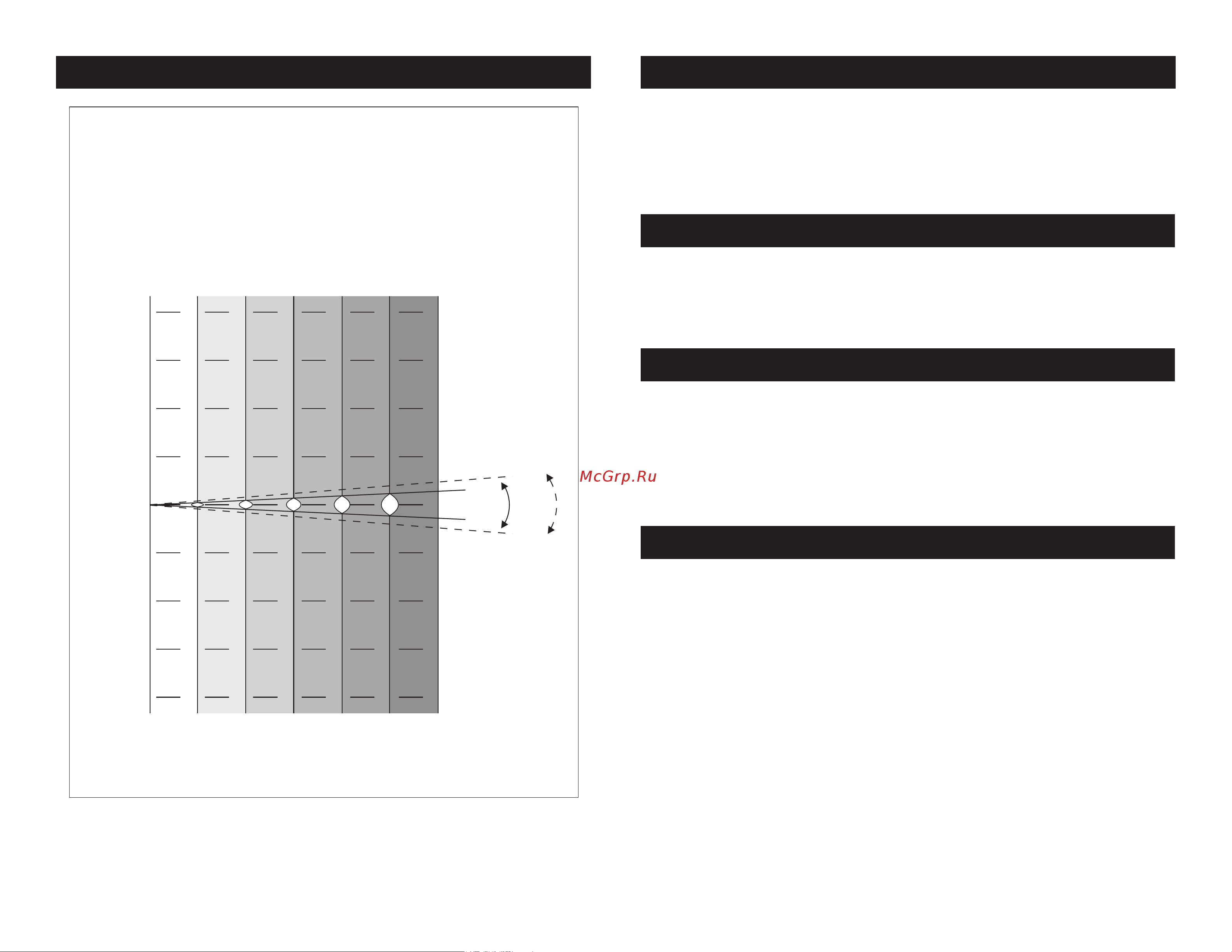

Penta Pix Photometric Chart
Intensity(LUX)
Beam angle 6°
Red LEDs
Green LEDs
Blue LEDs
White LEDs
Full LEDs
7808
19770
4111
25250
46230
1972
4323
914
5754
12440
863
2011
409
2765
5411
489
1025
230
1572
2951
298
705
142
1011
1930
Field angle 9°
9°
6°
0
0 1 2 3 4 5
1
1
2
2
3
4
Beam opening(m)
3
4
0.19
0.10
0.28 0.37 0.45 6°
Diameter
(m)
0.33
0.15
0.50 0.68 0.85 9°
Diameter
(m)
