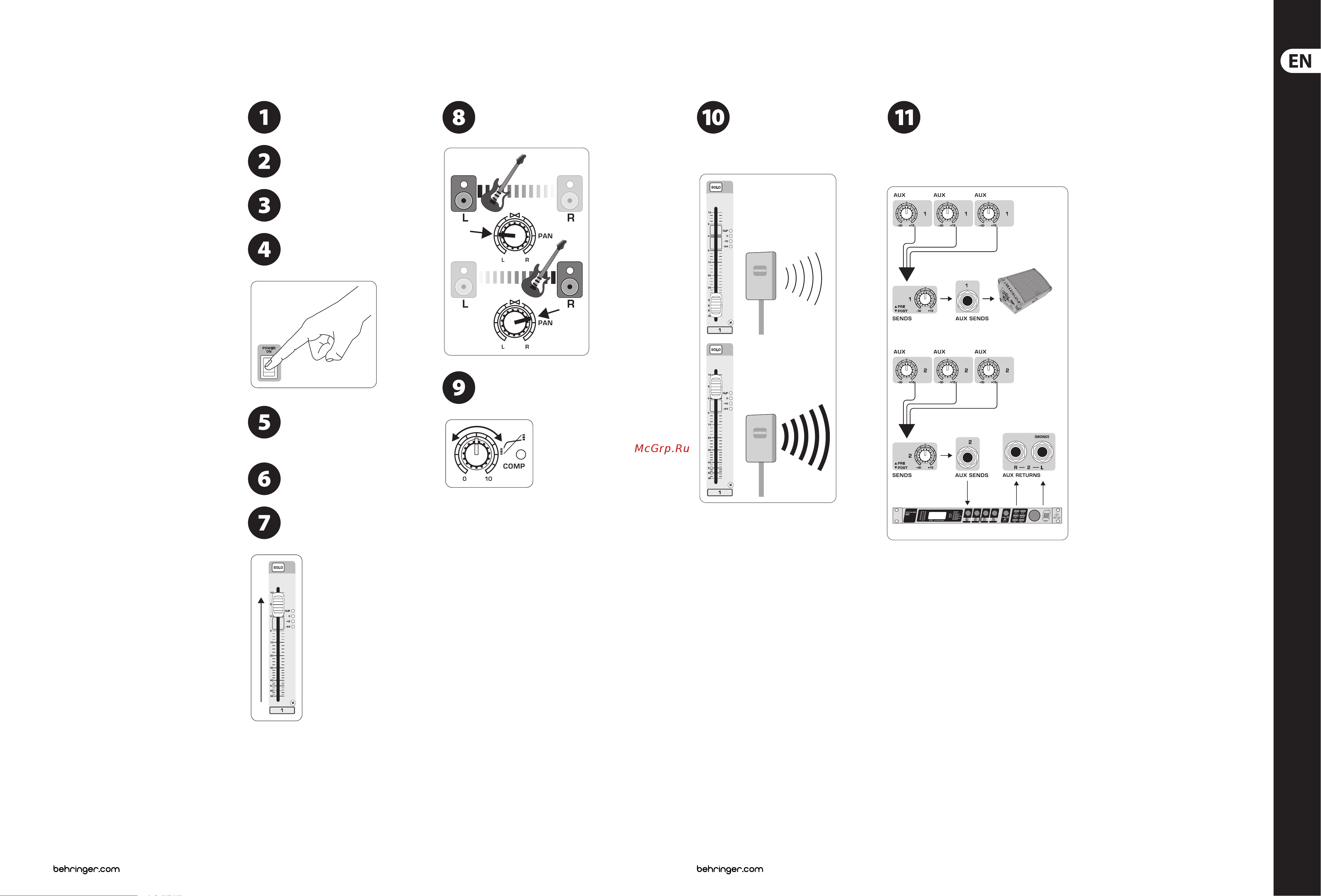

XENYX UFX1604 Getting started

Make sure the power to all devices is

turned o.

Connect all appropriate power, audio and

FireWire/USB cables to the mixer.

Set all faders to the down position,

PAN/BAL knobs centered and all other

knobs (except EQ) all the way left.

Turn the mixer on.

With the MAIN MIX fader, PHONES,

CONTROL RM, and ALT 3-4 knobs all the

way down, turn your PA system or

powered monitors on.

Slowly raise the MAIN MIX fader,

PHONES,CONTROL RM and ALT 3-4

knobsto 0 or the desired level.

Adjust the level of connected

microphones and instruments by raising

each CHANNEL FADER.

Adjust the left-right position of a channel

in the stereo eld if necessary by turning

the channel’s PAN or BAL knob.

Adjust the COMP knob to add

compression to an input if necessary.

(EN) Step 3: Getting

started

For live applications, adjust the overall

output from the mixer to the power

amp or powered speakers by raising

the MAIN MIX fader. If the CLIP LEDs on the VU

METER light, lower the MAIN MIX fader.

Use the channel AUX knobs and master

AUX SEND knobs to send the channel

signals to an eects processor or stage

monitor connected to the AUX SEND jacks. If used

for eects, route the signal back from the processor

to the AUX RETURN jacks.
