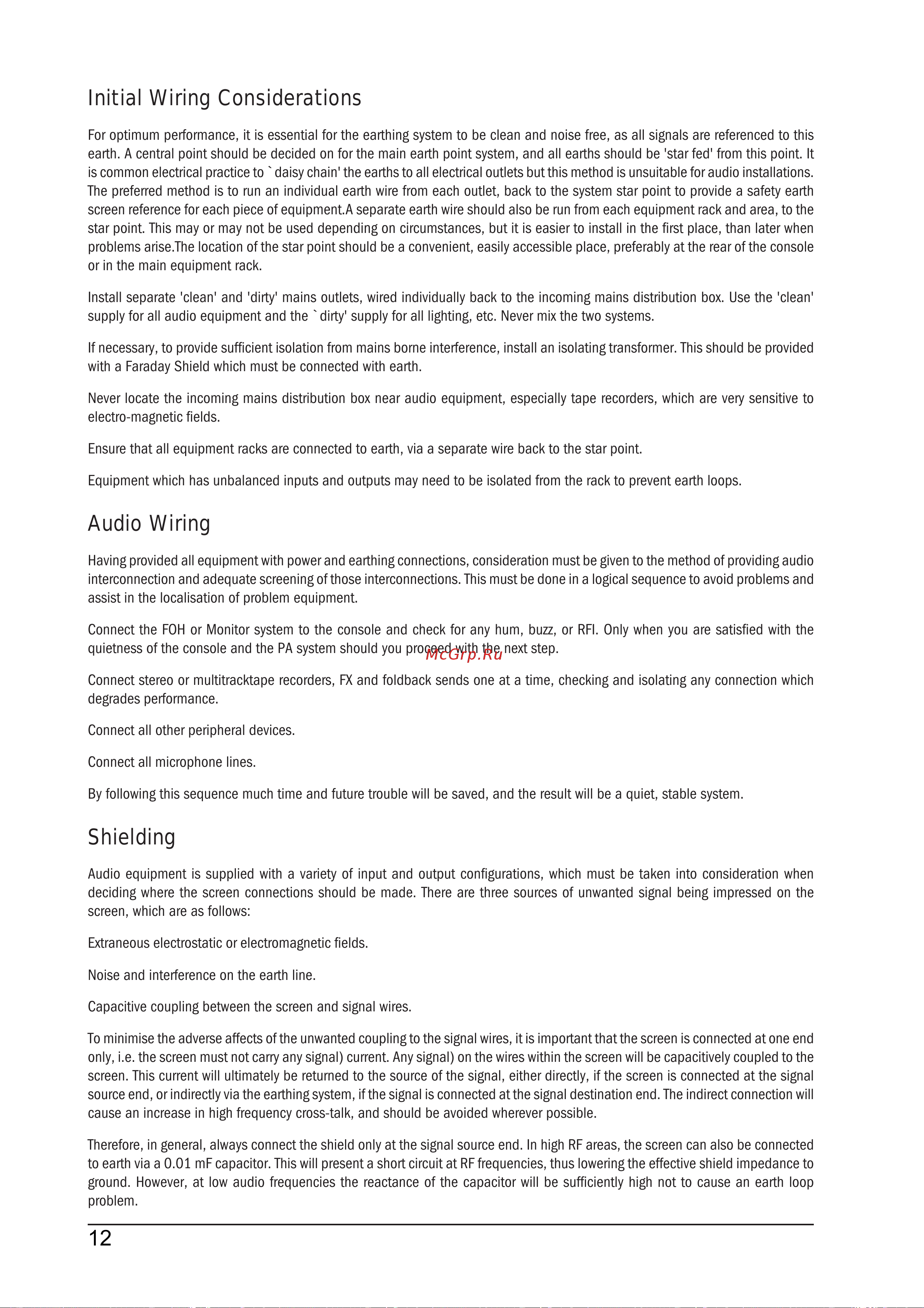

Initial Wiring Considerations

For optimum performance, it is essential for the earthing system to be clean and noise free, as all signals are referenced to this

earth. A central point should be decided on for the main earth point system, and all earths should be 'star fed' from this point. It

is common electrical practice to `daisy chain' the earths to all electrical outlets but this method is unsuitable for audio installations.

The preferred method is to run an individual earth wire from each outlet, back to the system star point to provide a safety earth

screen reference for each piece of equipment.A separate earth wire should also be run from each equipment rack and area, to the

star point. This may or may not be used depending on circumstances, but it is easier to install in the first place, than later when

problems arise.The location of the star point should be a convenient, easily accessible place, preferably at the rear of the console

or in the main equipment rack.

Install separate 'clean' and 'dirty' mains outlets, wired individually back to the incoming mains distribution box. Use the 'clean'

supply for all audio equipment and the `dirty' supply for all lighting, etc. Never mix the two systems.

If necessary, to provide sufficient isolation from mains borne interference, install an isolating transformer. This should be provided

with a Faraday Shield which must be connected with earth.

Never locate the incoming mains distribution box near audio equipment, especially tape recorders, which are very sensitive to

electro-magnetic fields.

Ensure that all equipment racks are connected to earth, via a separate wire back to the star point.

Equipment which has unbalanced inputs and outputs may need to be isolated from the rack to prevent earth loops.

Audio Wiring

Having provided all equipment with power and earthing connections, consideration must be given to the method of providing audio

interconnection and adequate screening of those interconnections. This must be done in a logical sequence to avoid problems and

assist in the localisation of problem equipment.

Connect the FOH or Monitor system to the console and check for any hum, buzz, or RFI. Only when you are satisfied with the

quietness of the console and the PA system should you proceed with the next step.

Connect stereo or multitracktape recorders, FX and foldback sends one at a time, checking and isolating any connection which

degrades performance.

Connect all other peripheral devices.

Connect all microphone lines.

By following this sequence much time and future trouble will be saved, and the result will be a quiet, stable system.

Shielding

Audio equipment is supplied with a variety of input and output configurations, which must be taken into consideration when

deciding where the screen connections should be made. There are three sources of unwanted signal being impressed on the

screen, which are as follows:

Extraneous electrostatic or electromagnetic fields.

Noise and interference on the earth line.

Capacitive coupling between the screen and signal wires.

To minimise the adverse affects of the unwanted coupling to the signal wires, it is important that the screen is connected at one end

only, i.e. the screen must not carry any signal) current. Any signal) on the wires within the screen will be capacitively coupled to the

screen. This current will ultimately be returned to the source of the signal, either directly, if the screen is connected at the signal

source end, or indirectly via the earthing system, if the signal is connected at the signal destination end. The indirect connection will

cause an increase in high frequency cross-talk, and should be avoided wherever possible.

Therefore, in general, always connect the shield only at the signal source end. In high RF areas, the screen can also be connected

to earth via a 0.01 mF capacitor. This will present a short circuit at RF frequencies, thus lowering the effective shield impedance to

ground. However, at low audio frequencies the reactance of the capacitor will be sufficiently high not to cause an earth loop

problem.
