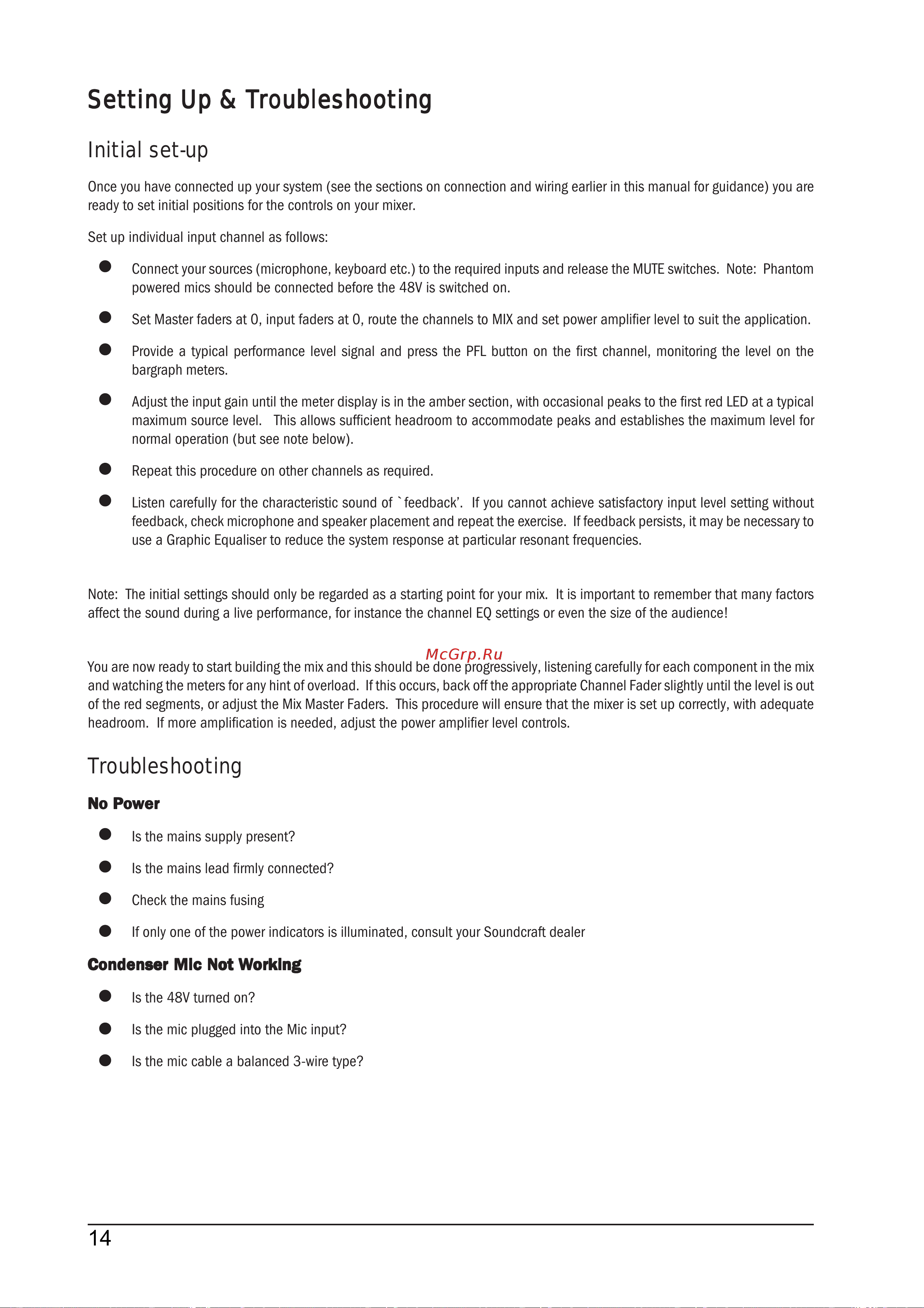

Soundcraft LX7ii-32 [14/32] Setting up t setting up t setting up t setting up t setting up trrrrroubleshooting oubleshooting oubleshooting oubleshooting oubleshooting

Setting Up & TSetting Up & T

Setting Up & T

oubleshootingoubleshooting

oubleshooting

Initial set-up

Once you have connected up your system (see the sections on connection and wiring earlier in this manual for guidance) you are

ready to set initial positions for the controls on your mixer.

Set up individual input channel as follows:

Connect your sources (microphone, keyboard etc.) to the required inputs and release the MUTE switches. Note: Phantom

powered mics should be connected before the 48V is switched on.

Set Master faders at 0, input faders at 0, route the channels to MIX and set power amplifier level to suit the application.

Provide a typical performance level signal and press the PFL button on the first channel, monitoring the level on the

bargraph meters.

Adjust the input gain until the meter display is in the amber section, with occasional peaks to the first red LED at a typical

maximum source level. This allows sufficient headroom to accommodate peaks and establishes the maximum level for

normal operation (but see note below).

Repeat this procedure on other channels as required.

Listen carefully for the characteristic sound of `feedback’. If you cannot achieve satisfactory input level setting without

feedback, check microphone and speaker placement and repeat the exercise. If feedback persists, it may be necessary to

use a Graphic Equaliser to reduce the system response at particular resonant frequencies.

Note: The initial settings should only be regarded as a starting point for your mix. It is important to remember that many factors

affect the sound during a live performance, for instance the channel EQ settings or even the size of the audience!

You are now ready to start building the mix and this should be done progressively, listening carefully for each component in the mix

and watching the meters for any hint of overload. If this occurs, back off the appropriate Channel Fader slightly until the level is out

of the red segments, or adjust the Mix Master Faders. This procedure will ensure that the mixer is set up correctly, with adequate

headroom. If more amplification is needed, adjust the power amplifier level controls.

Troubleshooting

o Po P

o P

erer

Is the mains supply present?

Is the mains lead firmly connected?

Check the mains fusing

If only one of the power indicators is illuminated, consult your Soundcraft dealer

Condenser Mic NCondenser Mic N

Condenser Mic N

t Wt W

t W

oror

kingking

king

Is the 48V turned on?

Is the mic plugged into the Mic input?

Is the mic cable a balanced 3-wire type?
