DBX goRack [24/31] Application diagrams

PERFORMANCE PROCESSOR

Application Diagrams

Use these diagrams and notes for reference when initially connecting and configuring the goRack for your application.

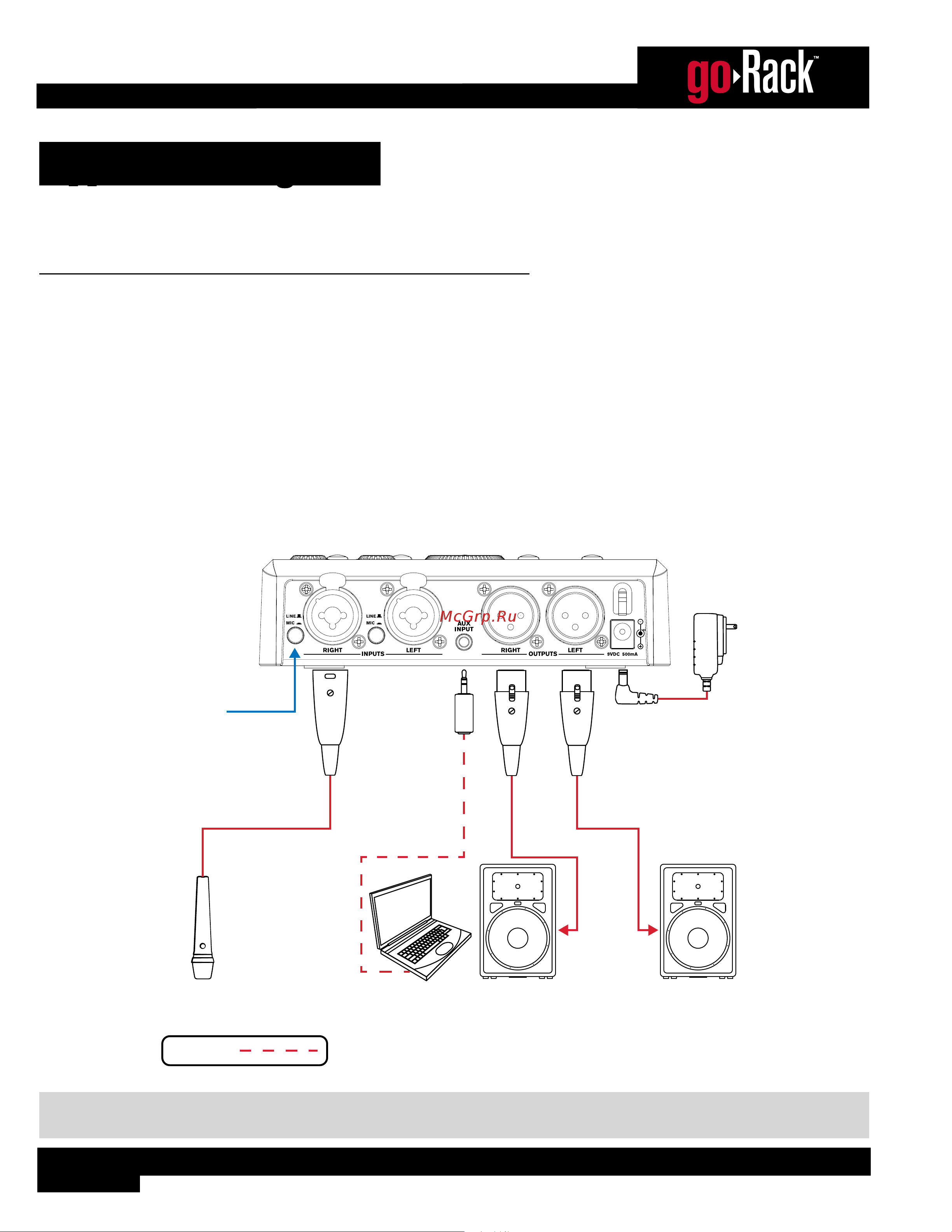

Application 1: Speech/Presentation

This application is suited for speech/presentation applications and provides a 2-channel mixer, aux input, and system

processing. The microphone can be connected to the goRack’s MIC/LINE 1 input. If a second microphone is required, the

MIC/LINE 2 input can be used. The AUX INPUT can be used for connecting a portable device for audio playback.

Application Notes:

• Make sure your powered speakers (or amplifiers) are turned off before making connections.

• Make connections as described in ‘Making Connections’ on page 5 then apply power to the system according

to the instructions described in ‘Applying Power’ on page 5.

• The routing 3 option will work best for this application. See ‘Configuring The goRack’s Routing’ on page 6 for

information on goRack routing options.

Powered

Speaker

Powered

Speaker

Microphone

Set to

MIC

Portable

Device

Line Inputs

Speech/Presentation Connections

Stereo Cable

Included Harman

Power Adapter

Optional

NOTE: A stereo (Tip-Ring-Sleeve) Mini cable should be used for the connection between the portable device and AUX

INPUT. See ‘Audio Cable Diagrams’ on page 26 for more information on these cable types.
