DBX goRack [7/31] Making connections

PERFORMANCE PROCESSOR

Setup

Making Connections

Audio Connections

1� Ensure the power is turned off on all interconnecting equipment and the goRack before making audio connections.

2� Connect the outputs of the mixing console, microphones, or instruments to the inputs of the goRack and set the goRack’s

MIC/LINE input switches accordingly. Use the highest quality cable available with the shortest possible cable runs.

3� Connect the goRack’s outputs to the amplifier or powered speaker inputs.

TIP: See ‘Application Diagrams’ on page 22 for application notes and system diagrams which can be used for

reference when connecting the goRack to your system. See ‘Audio Cable Diagrams’ on page 26 for information on

cable wiring.

Applying Power

1� Ensure your power amplifiers or powered speakers are turned off.

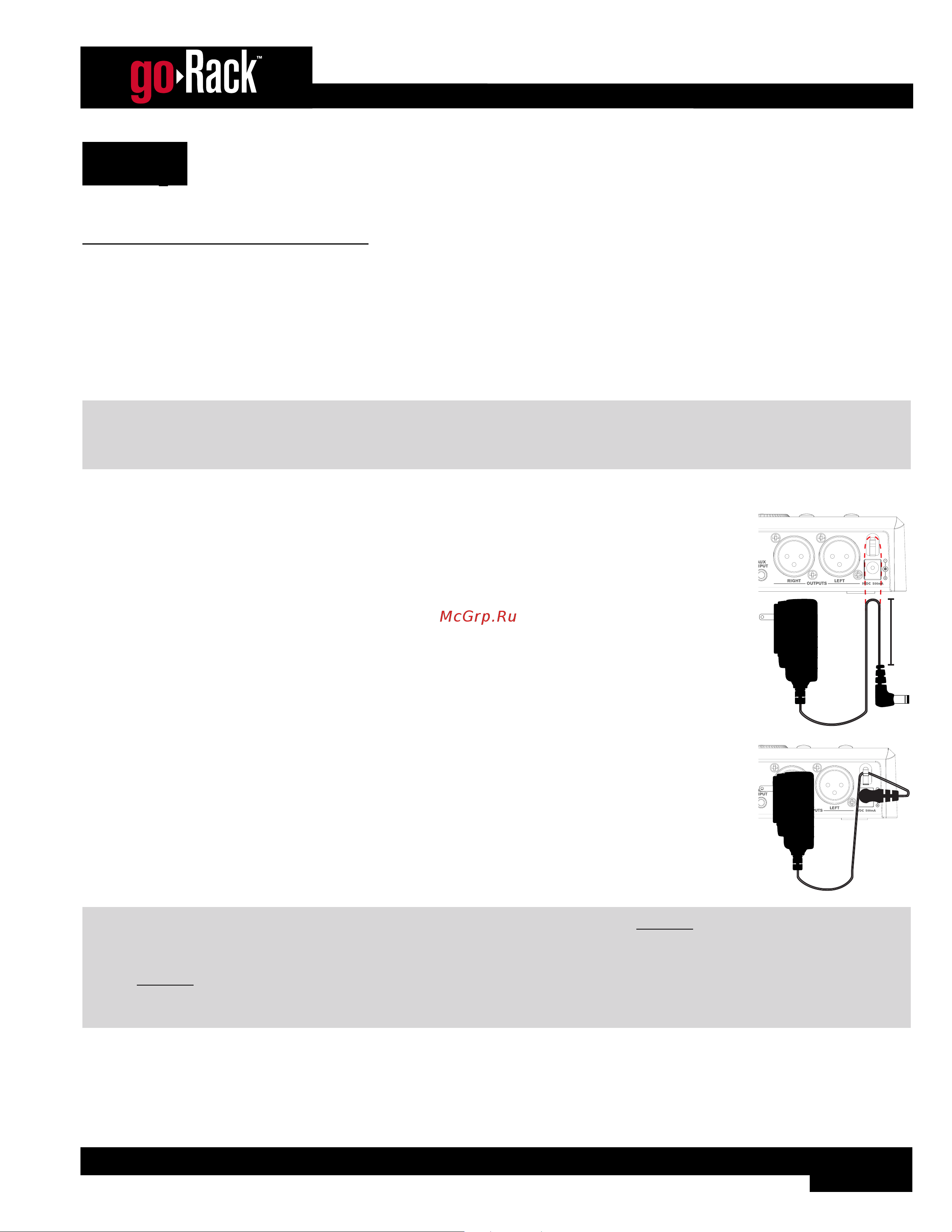

2� As shown in the illustration to the right, pinch the power adapter cord together, leaving

approximately 2 inches of cable before the power plug, then route the cord into the cord

retaining clip on the goRack’s rear panel.

2”

3� Connect the power adapter jack to the DC power input.

4� Apply power to the goRack by connecting the other end to an available AC power outlet. Since

the goRack does not have a power switch, an AC power strip or power conditioner can be used

for switching power to the goRack on or off.

5� Apply power to your mixer then your power amplifiers or powered speakers.

WARNING! When powering up a fully connected PA system, it is advisable to ALWAYS turn on the goRack (and

mixer if applicable) first then turn on your amplifiers or powered speakers last. It’s also a good idea to ensure the goRack

VOLUME or mixer output gains are reduced before applying power to the amplifiers. When powering down the system, you

should ALWAYS power down the amplifiers/powered speakers first, wait about 10 seconds to allow them to discharge, then

power down the goRack (and mixer if applicable). In short, every time you use your system, the power amps should be the

last components turned on and the first components turned off.
