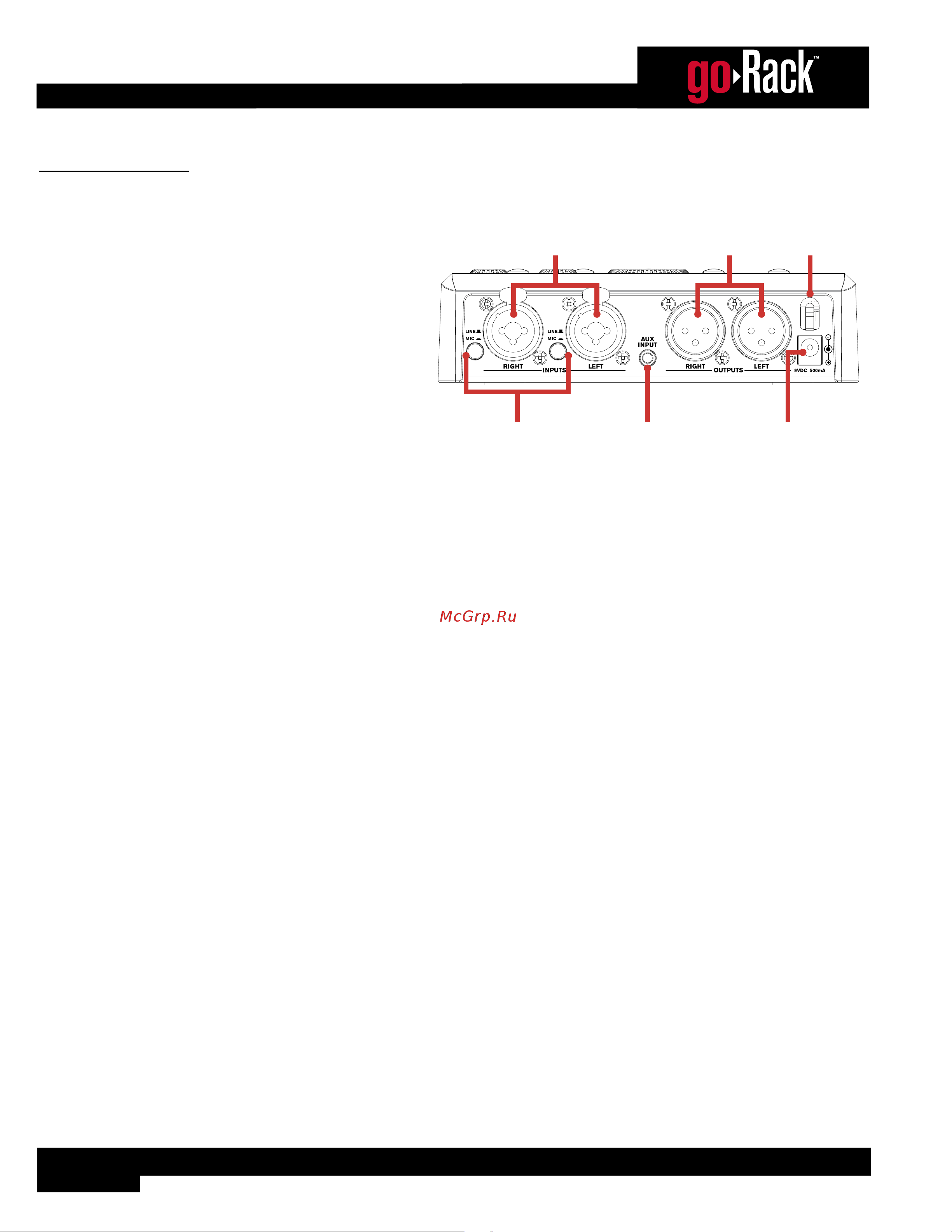

Rear Panel

1. LEFT / RIGHT Combination Input Jacks

Connect your mixer, microphone, or instrument

outputs to these combination 1/4” / XLR input

jacks. The input sensitivity of these jacks are set

using the MIC/LINE switches next to each jack

and the input gain can be adjusted using to the

top-panel LEFT/RIGHT input gain knobs.

The input signals can be routed in stereo or mono

summed to the output jacks. See ‘Configuring

The goRack’s Routing’ on page 6 for

more information on the Routing modes available

in the goRack.

2. MIC / LINE Switches

Match these swtches to the type of connections being made to the input jacks. Select the LINE option when connecting

the outputs of a line-level device, such as a mixer or the output of an instrument with a built-in pickup. Select the MIC

option when connecting a microphone.

3. AUX INPUT Jack

Connect a mobile device or portable music player to this 1/8” (3.5mm) stereo Mini jack. There are a couple of different

processing routing options available for this jack (see ‘Configuring The goRack’s Routing’ on page 6 for more

information).

4. XLR Output Jacks

Connect these electronically balanced XLR outputs to the amplifier or powered speaker inputs.

5. DC Power Input Jack

Connect the included Harman power adapter to this power input jack.

6. Power Adapter Cord Retaining Clip

Route the power adapter cord through this retaining clip to prevent accidental removal of the power plug (see ‘Applying

Power’ on page 5 for more information).
