DBX goRack [8/31] Configuring the gorack s routing
![DBX goRack [8/31] Configuring the gorack s routing](/views2/2008518/page8/bg8.png)
6
PERFORMANCE PROCESSOR

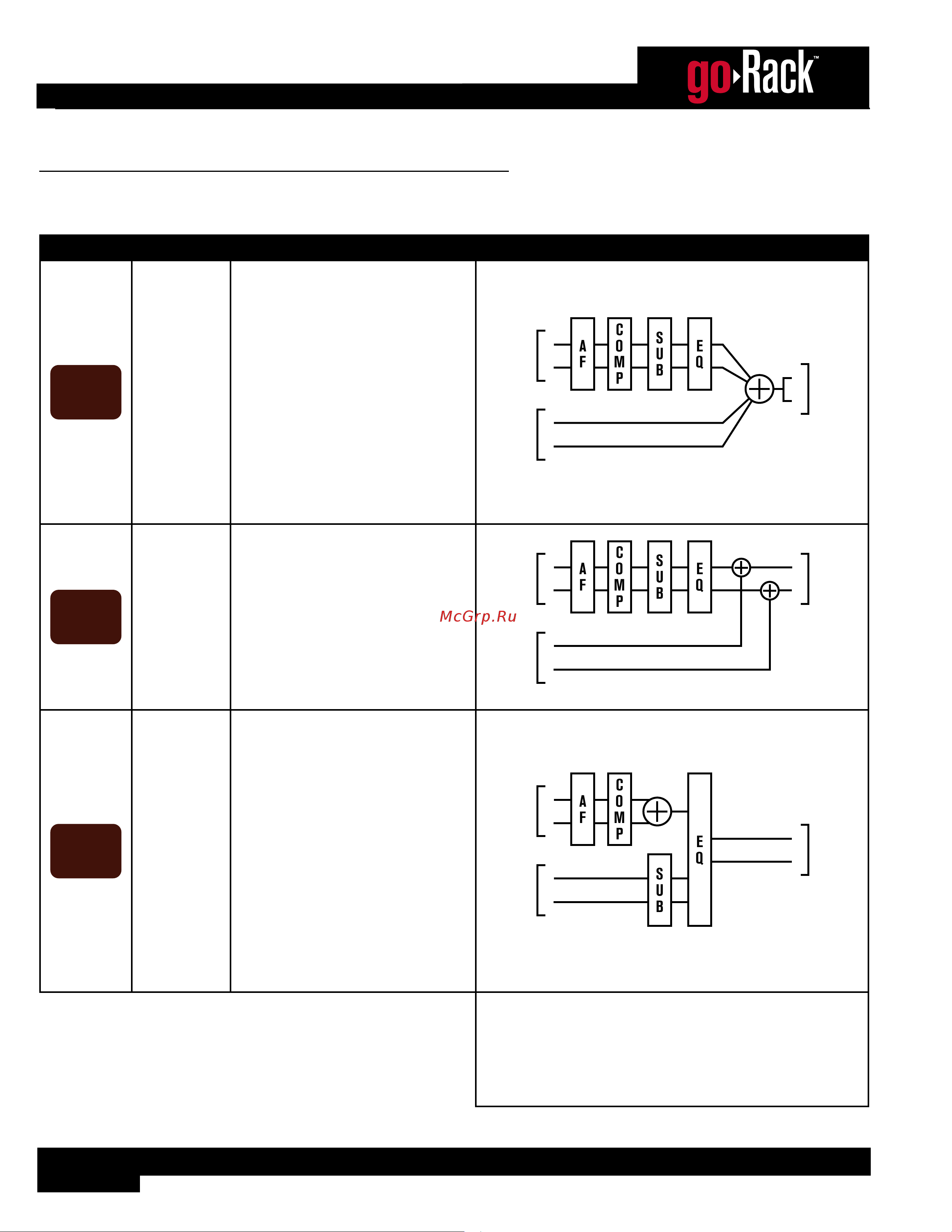

Configuring The goRack’s Routing
The goRack offers 3 routing options to select from. The following table provides a description of each of these routing options.
Routing Options
Option Type Description Routing Diagram
0
0
1
Mono
This is the default setting from
the factory. This option mono
sums all input signals and feeds
them to both outputs. This
option is ideal for the solo artist
or duo. For example, one input
could be used for connecting a
microphone and the other for an
instrument, such as an acoustic
guitar with a built-in pickup.
This option is also well-suited
for speech/presentation
applications.
OUTPUTS
L
R
AF
COMP
SUB
EQ
MIC/LINE
INPUTS
L
R
AUX
INPUT
L
R
OUTPUTS
L
R
AF
COMP
SUB
EQ
MIC/LINE
INPUTS
L
R
AUX
INPUT
L
R
OUTPUTS
L
R
AF
COMP
SUB
MIC/LINE
INPUTS
L
R
AUX
INPUT
L
R
EQ
0
0
2
Stereo
This option maintains stereo
imaging through the goRack.
Select this option when
connecting the goRack between
the mixer and powered speakers
or amplifier in a conventional,
stereo PA system.
OUTPUTS
L
R
AF
COMP
SUB
EQ
MIC/LINE
INPUTS
L
R
AUX
INPUT
L
R
OUTPUTS
L
R
AF
COMP
SUB
EQ
MIC/LINE
INPUTS
L
R
AUX
INPUT
L
R
OUTPUTS
L
R
AF
COMP
SUB
MIC/LINE
INPUTS
L
R
AUX
INPUT
L
R
EQ
0
0
3
Advanced
This option mono sums the
MIC/LINE inputs just like
option 1, but maintains stereo
imaging in the AUX INPUT. It
also moves the Subharmonic
Synthesis processing and adds
EQ processing to the AUX
INPUT. Use this option when you
don’t want signals connected
to the MIC/LINE inputs to be
processed with Subharmonic
Synthesis and want to add
equalization to the AUX INPUT
signal.
OUTPUTS
L
R
AF
COMP
SUB
EQ
MIC/LINE
INPUTS
L
R
AUX
INPUT
L
R
OUTPUTS
L
R
AF
COMP
SUB
EQ
MIC/LINE
INPUTS
L
R
AUX
INPUT
L
R
OUTPUTS
L
R
AF
COMP
SUB
MIC/LINE
INPUTS
L
R
AUX
INPUT
L
R
EQ
LEGEND
AF = Anti-Feedback
COMP = Compressor
SUB = Subharmonic Synthesiser
EQ = Equalizer
