User Interface & Connectors

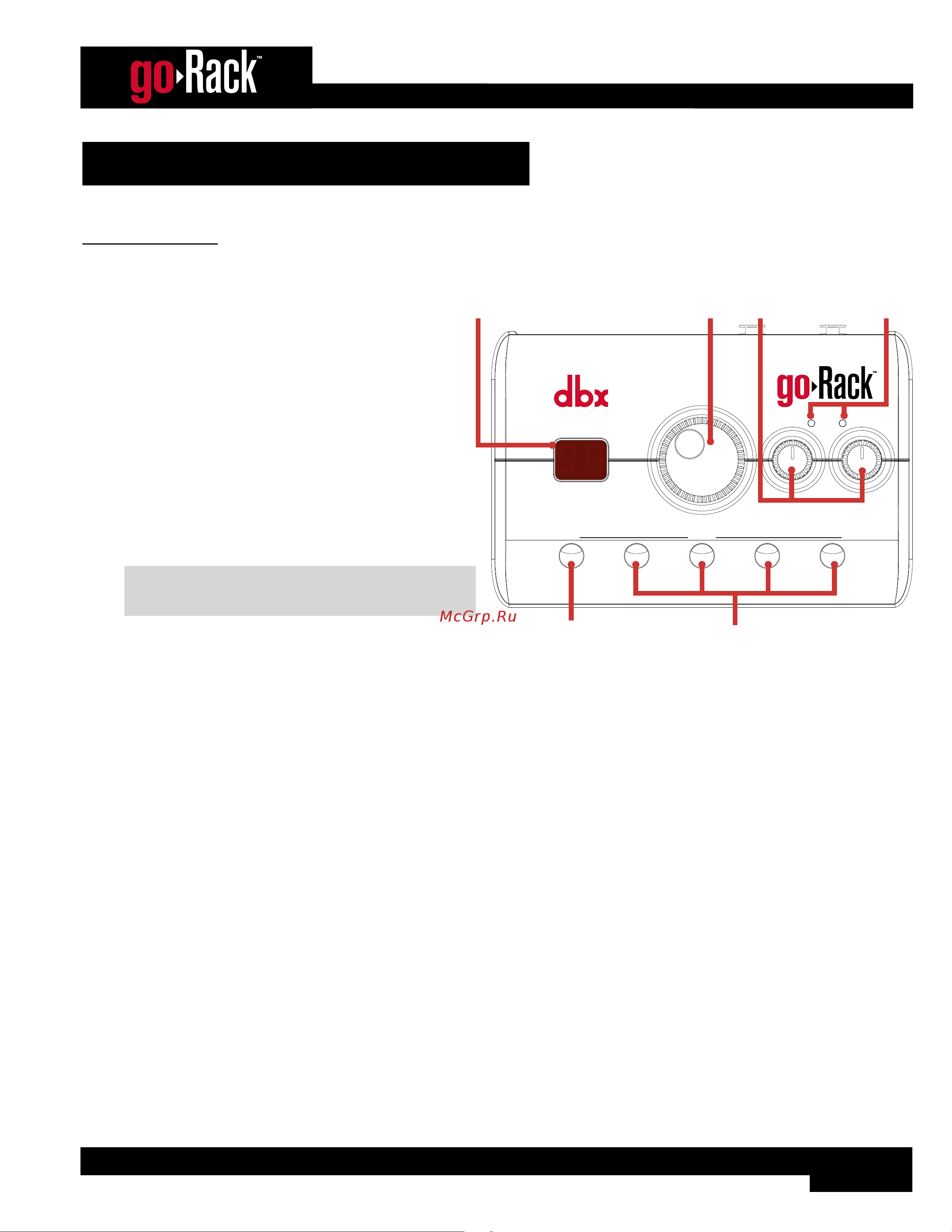

Top Panel

1. 7-Segment Display

This display shows selected options and

processor settings.

2. VOLUME (EDIT) Encoder

for the main LEFT/RIGHT inputs. The MIC/

LINE switches on the rear panel should be set

to the correct position for the application before

adjusting these knobs.

NOTE: AUX INPUT signals are not affected by

the Input Gain knobs.

4. INPUT SIGNAL LEDs

These multi-colored LEDs display the input signal

level strength and available headroom.

•

Indicates the input signal is clipping and the input gain should be reduced.

5. MUTE (MODE) Button

Pressing this button will mute/unmute the goRack’s outputs. Pressing and holding this button for 2 seconds enters

Routing mode (indicated by a flashing LED), where you can select a routing option. See ‘Configuring The goRack’s

Routing’ on page 6 for more information on the routing options available in the goRack.

6. Processor Buttons

Pressing each of these buttons will enable/disable the corresponding processor type (LED off = processor disabled,

LED on = processor enabled). Pressing and holding each button for 2 seconds will enter Edit mode (indicated by a

flashing LED), where the selected processor can be edited using the VOLUME (EDIT) encoder.
