ADJ Products, LLC - www.adj.com - Quad Phase HP Instruction Manual Page 7 ADJ Products, LLC - www.adj.com - Quad Phase HP Instruction Manual Page 8

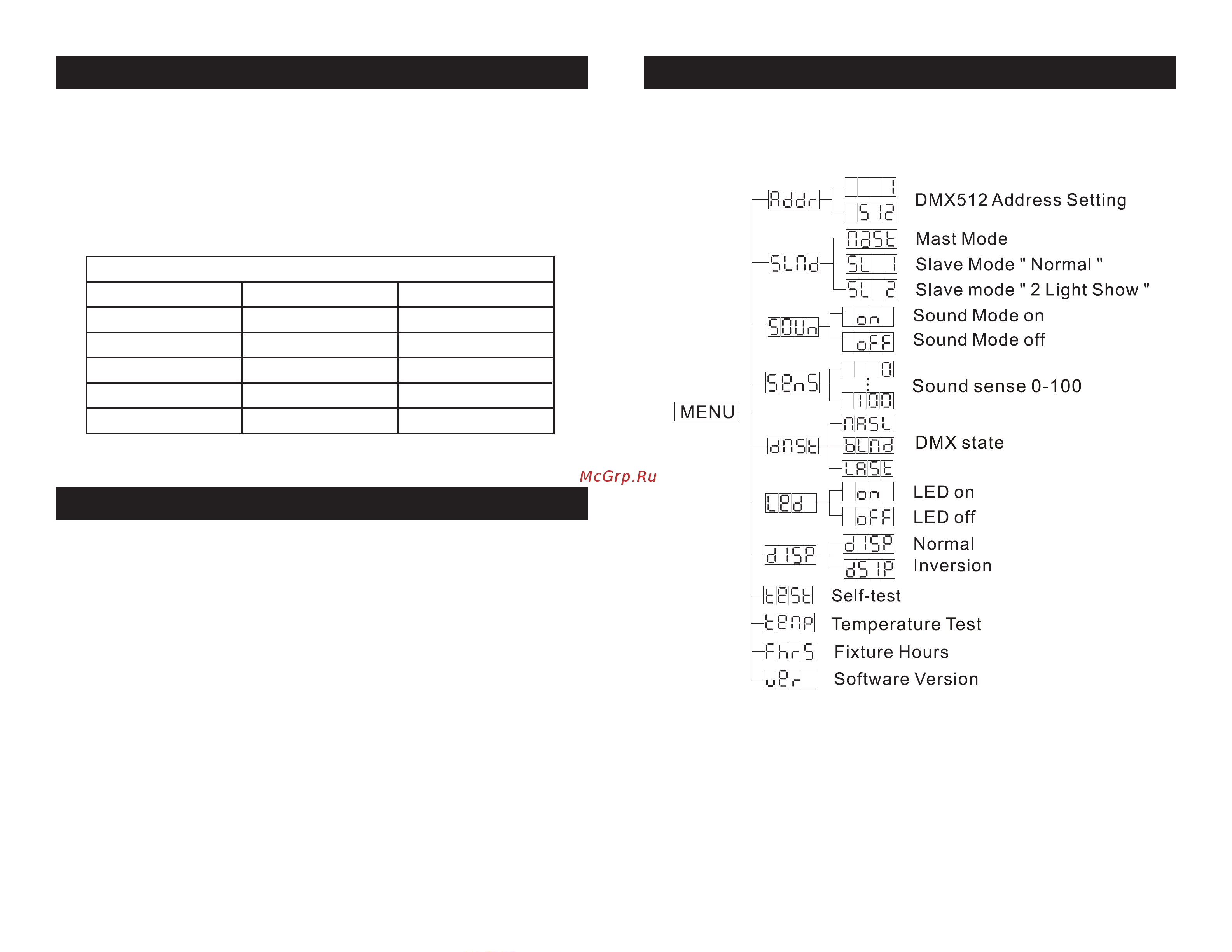

Quad Phase HP System Menu

5-Pin XLR DMX Connectors.

Some manufactures use 5-pin XLR

connectors for DATA transmission in place of 3-pin. 5-pin XLR xtures

may be implemented in a 3-pin XLR DMX line. When inserting stan-

dard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be

used, these adaptors are readily available at most electric stores. The

chart below details a proper cable conversion.

Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)

Pin 1

Pin 5 - Do Not Use

Pin 4 - Do Not Use

Pin 3

Pin 2

Pin 1

Pin 3

Pin 2

Not Used

Data True (+ signal)

Data Compliment (- signal)

Ground/Shield

3-Pin XLR to 5-Pin XLR Conversion

Quad Phase HP Set Up

The unit should be mounted using a mounting clamp (not provided),

afxing it to the mounting bracket that is provided with the unit.

Always ensure that the unit is rmly xed to avoid vibration and slip-

ping while operating. Always ensure that the structure to which you

are attaching the unit is secure and is able to support a weight of 10

times the unit’s weight. Also, always use a safety cable that can hold

12 times the weight of the unit when installing the xture.

The equipment must be installed by a professional, and it must be

installed in a place where it is out of the reach of people’s grasp.

Quad Phase HP Installation
