GETTING SET UP: SCENARIO TWO – POD PLAYS LIVE

3 • 14

POD Live Hook-up Illustrations

Pictures are handy. Here are a few you may appreciate. In all cases, plug the left

output of your POD into your amp’s input for mono operation. Experiment to get

the best from your setup; try the A.I.R. switch in the DIRECT position (this can

work great with smaller amps) and also try other knob settings on your amp:

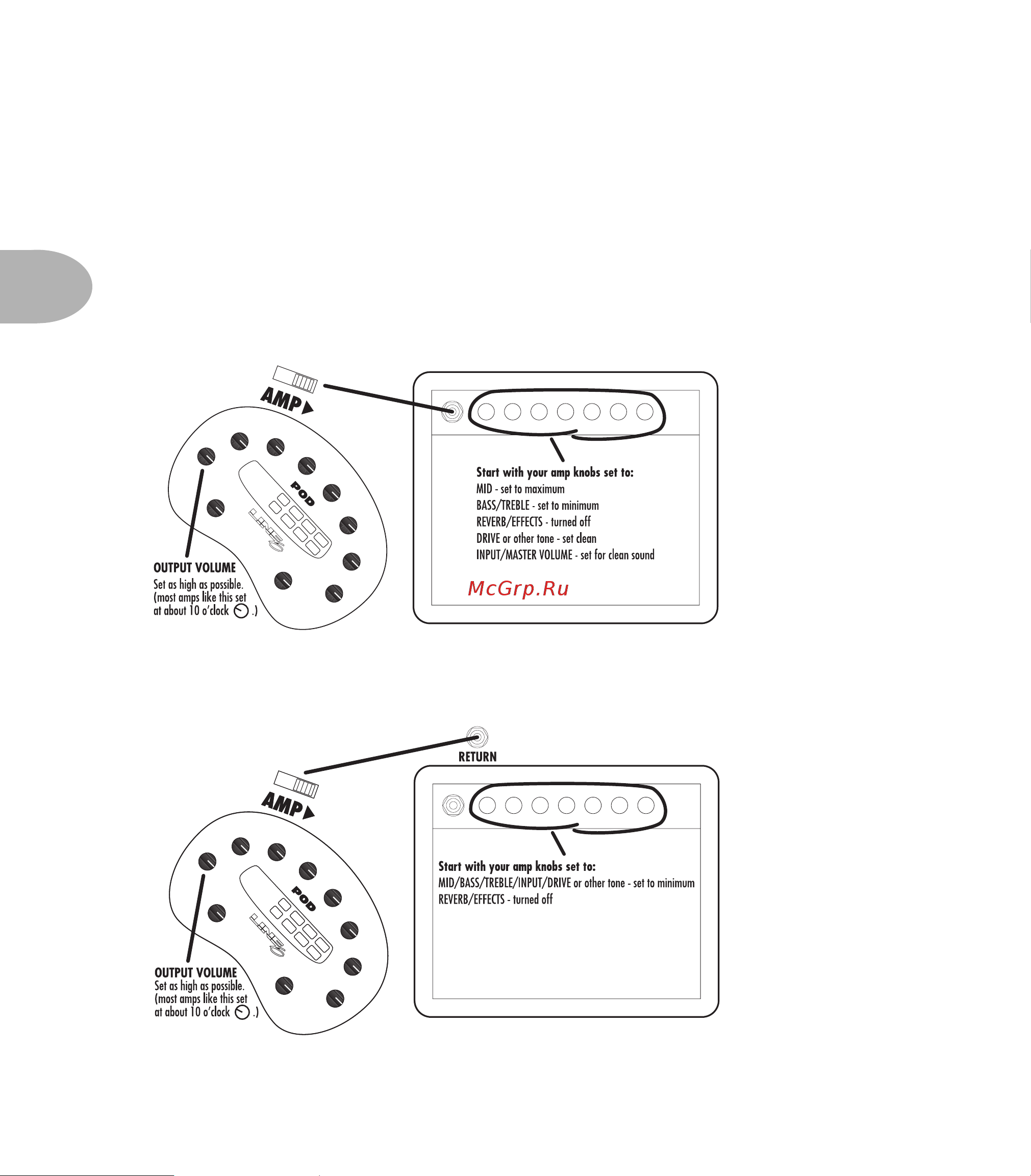

POD As Front End for a Combo Amp or Head

POD In Insert/Return of a Combo Amp or Head
