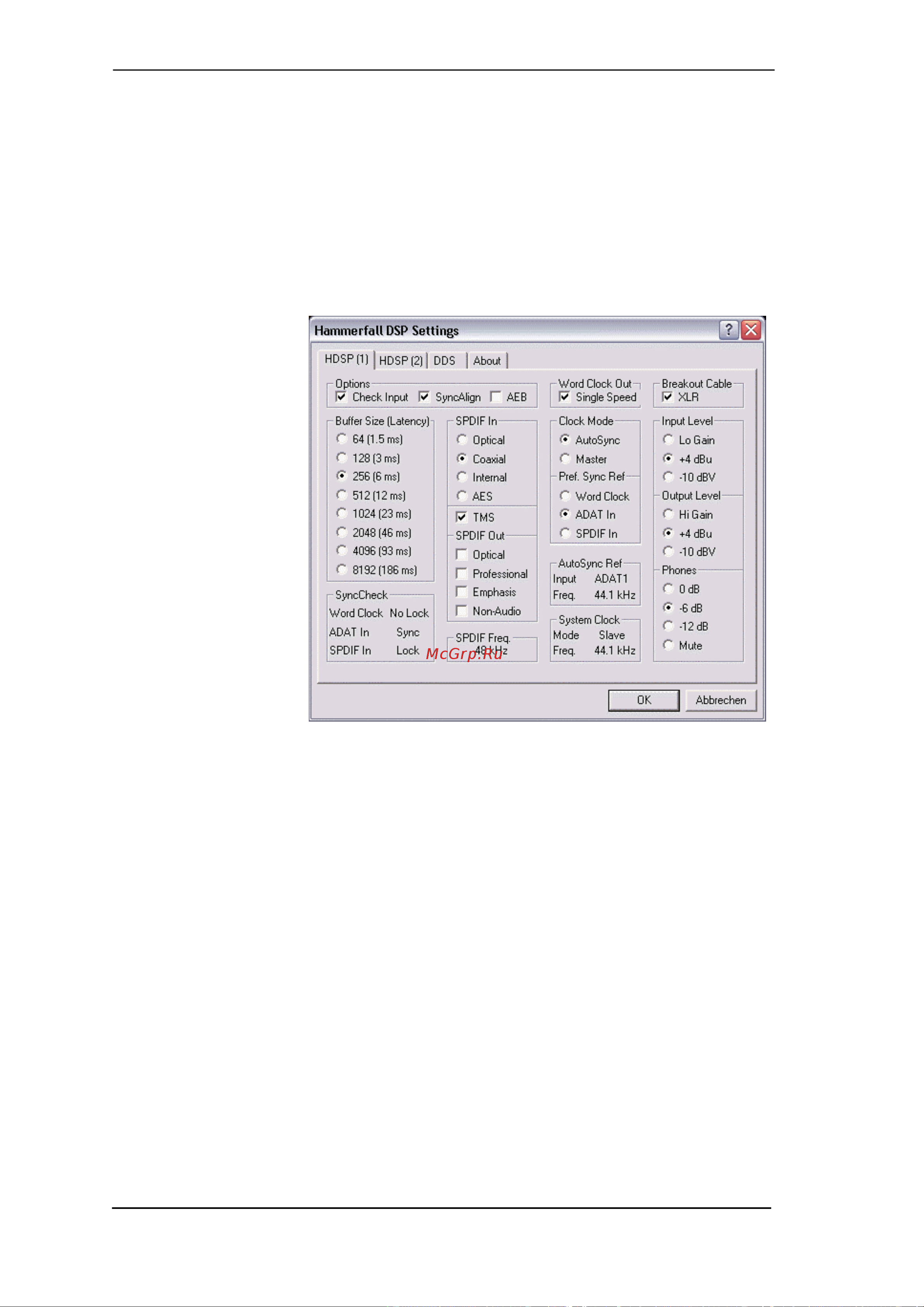

User's Guide HDSP System HDSP 9632 © RME
Options
SyncAlign guarantees synchronous channels when using WDM multitrack software. This option
should only be switched off in case the used software does not work correctly with SyncAlign
activated.
AEB activates the internal connector as ADAT input instead of the optical TOSLINK. An expan-
sion board (AEB4-I, AEB8-I, TEB) can be connected here.
Buffer Size
The setting Buffer Size determines the latency between incoming and outgoing ASIO and GSIF
data, as well as affecting system stability (see chapter 13/14). Under Windows MME this setting
determines the DMA buffer size (see chapter 12.3).
SyncCheck
SyncCheck indicates
whether there is a valid
signal (Lock, No Lock) for
each input (Word Clock,
ADAT, SPDIF), or if there
is a valid and synchronous
signal (Sync). The Auto-
Sync Reference display
shows the input and fre-
quency of the current sync
source.
SPDIF In
Defines the input for the
SPDIF signal. 'Optical'
relates to the optical
TOSLINK input, 'Coaxial'
to the RCA socket, 'Inter-
nal' to the jumper
CD/AEB/SYNC IN, 'AES'
to the optional XLR cable.
TMS activates the transmission of Channel Status data and Track Marker information of the
SPDIF input.
SPDIF Out
The SPDIF output signal is constantly available at the phono plug. After selecting 'Optical' it is
also routed to the optical TOSLINK output. For further details about the settings ‘Professional’,
‘Emphasis’ and ‘Non-Audio’, please refer to chapter 25.2.
SPDIF Freq.
Displays the sample rate of the signal at the SPDIF input.
Word Clock Out
The word clock output signal usually equals the current sample rate. Selecting Single Speed
causes the output signal to always stay within the range of 32 kHz to 48 kHz. So at 96 kHz
sample rate, the output word clock is 48 kHz.
Clock Mode
The unit can be configured to use its internal clock source (Master), or the clock source pre-
defined via Pref. Sync Ref (AutoSync).
