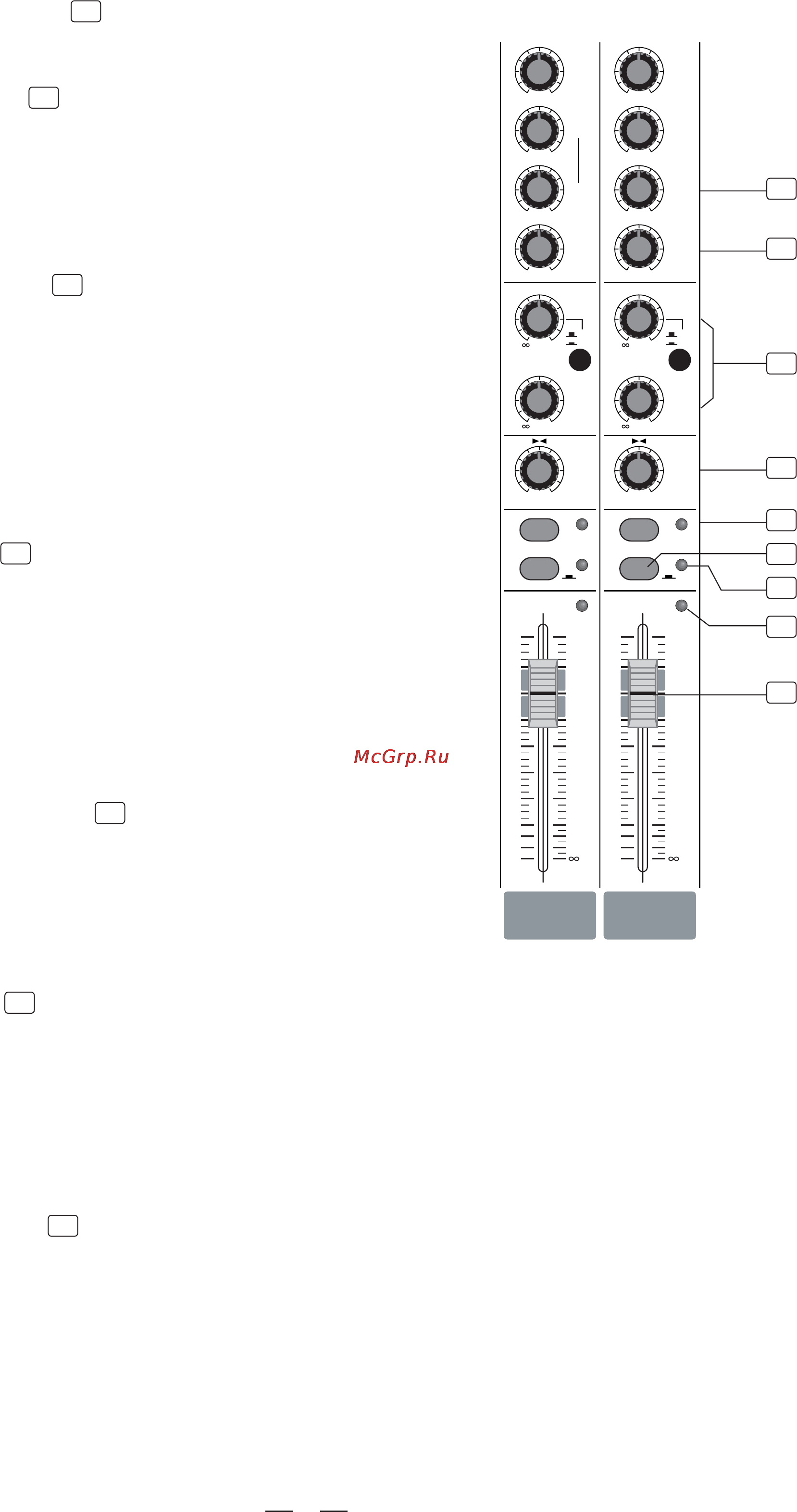

10
Each channel is equipped with the MUTE / ALT 3-4 switch. Pressing
this switch is used to route the channel signal to ALT 3-4 output
instead of the main mix and the LED beside MUTE/ ALT 3-4 will
illuminate.
4.10 MUTE / ALT 3-4
15
4.11 SOLO
Pressing this switch allows you to monitor the signals through headphone or CONTROL ROOM, then the SOLOyour
signal will replace other signals, and be also sent to the CONTROL ROOM, PHONES and METERs. Usually use the
solo in live work to preview channels before they are let into the mix.
It is useful to set instruments's input level and EQ, and you can also solo any channel that you want to. The SOLOan
switch never affects any mix other than the CONTROL ROOM mix.
16
Each channel is equipped with the SOLO LED display. When the SOLO was engaged, the LED on corresponding
channel will illuminate.
4.12 SOLO LED
17
PEAK PEAK
8 9/10
RIGHT
LEFT
ALT 3-4
MUTE /
SOLO
+15
+15
0
2
-15
0
0
1
-15
POST
(PRE)
BAL
AUX
+15
0
0
-15
0
RIGHT
LEFT
ALT 3-4
MUTE /
SOLO
+15
0
2
0
0
1
-15
POST
(PRE)
PAN
80Hz
LOW
AUX
+15
0
-15
0
EQ
HI
12kHz
MID
+15-15+15-15
+15
-
+15
-
800
8kHz100Hz
FREQ
+15
-
+15
-
500Hz
80Hz
LOW
EQ
3kHz
HI
12kHz
HI-MID
MID-LOW
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
10
dB
-5
-10
-15
-20
-30
-40
-60
0
5
PRE
POST
PRE
POST
4.7.5 LOW
12
4.7.4 MID-LOW
11
This control gives you up to 15dB boost or cut at 500Hz.
11
12
13
14
15
17
16
18
19
This is the Bass control. Boost male voice or kickdrum and bass
guitar. Your system will sound much bigger than what it is. The
gain range goes from -15dB to +15dB and the center frequency
is 80 Hz.
4.8 AUX SEND
13
These two controls will send the audio signal out to Auxiliary busses.
AUX 1 can be configured as PRE/POST Fader via the PRE/POST switch:
Up for POST Fader, the audio signal will be affected by the main Channel
Fader; Down for PRE Fader, the signal is sent out before reaching the
main fader. AUX 2 is configured as POST-Fader; However, AUX 2 can
also be configure as PRE-Fader through any internal modification.
(For more detail, please see chapter 6.)
4.9 PAN/BAL
14
The PANORAMA control for the MONO channels, and BALANCE
for the STEREO channels. You can adjust the stereo image of the
signal via these Control. Keep the control in center position and
your signal will be positioned in the middle of stage. Turn the control
fully counterclockwise and the signal will be present only on the left
speaker and vice-versa. Of course a wide number of intermediate
positions is available.
