11
20
CH1
CH2
CH4 CH3CH5CH7
CH6
CH8

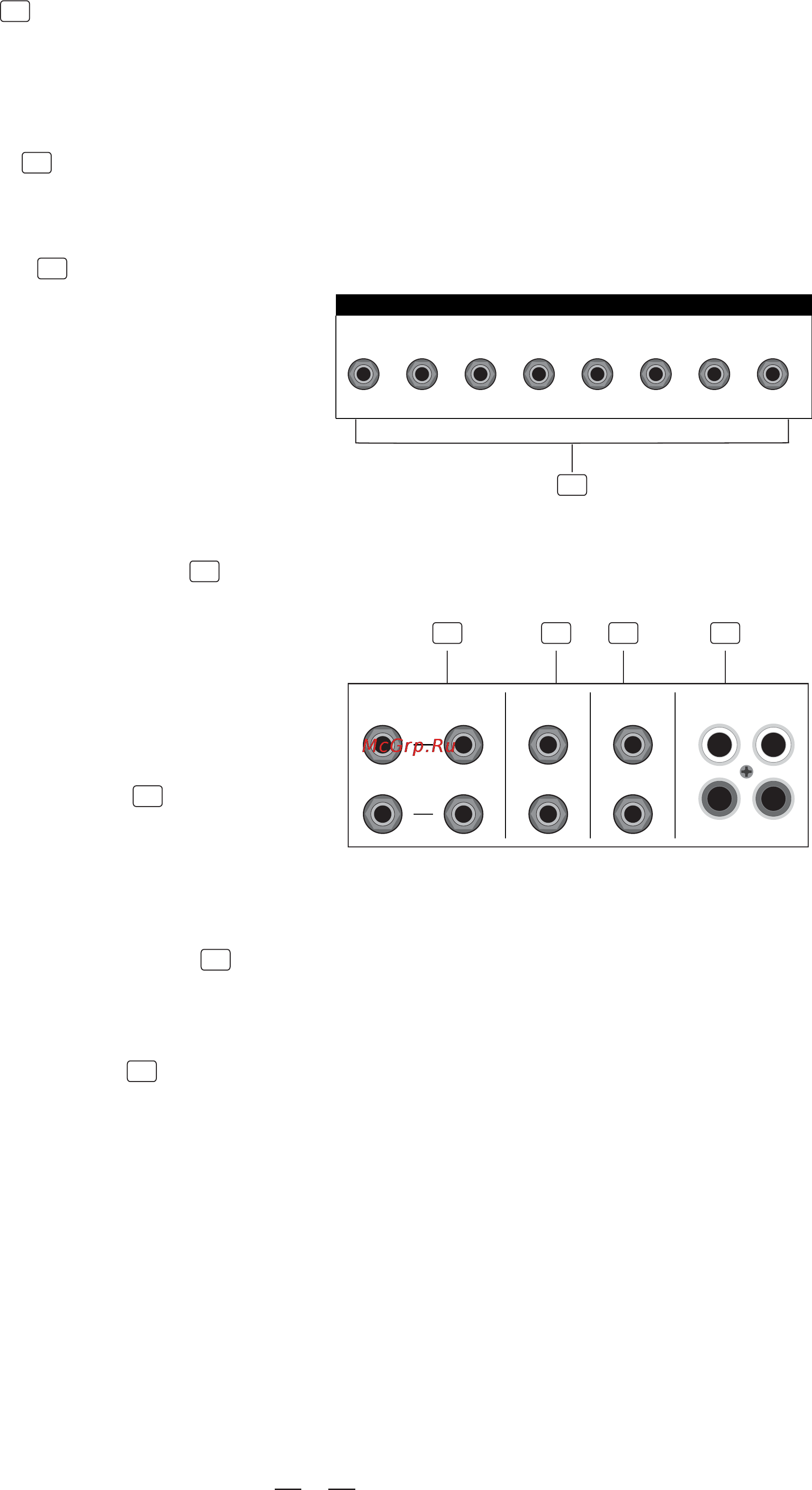

( PRE-FADER/PRE-EQ TIP SEND/RING RETURN )
CHANNEL INSERT
4.13 PEAK
18
Inside your S-16 the audio signal is monitored in several different stages and then sent to the PEAK Led. When this
Led blinks, it warns you that you are reaching signal saturation and possible distortion. The PEAK Led will blink with
a level that is 6dB before actual clipping.
4.14 FADER
19
This Fader will adjust the overall level of this channel and set the amount of signal sent to the Main output.
4.15 INSERT
20
Insert points are provided for the Mono Mic Chann-
els. When you insert a jack in the insert socket, the
signal will be taken out after the Input Gain Control
(Trim), sent to an external processor such a com-
pressor-limiter, and returned into the channel strip
immediately before the EQ section. Of course, the
jacks used must be stereo (Tip Send/Ring Return).
4.16 MAIN SECTION
These two unbalanced TRS jacks should be connected to the input of your control room amplifier.
-. CONTROL ROOM OUTPUT
23
21
22
23
24
LEFT
1
2
RIGHT
STEREO AUX RETURN
LEFT(MONO)
RIGHT
LL1
TAPE IN
2
RR
TAPE OUT
AUX SEND
CTRL ROOM
OUTPUT
2-TRACK IN/OUT
-. STEREO AUX RETURN
21
Use these stereo 1/4" phone socket to return the
sound of an effect unit or sound processor to the
Main Mix.
Alternatively you can use them as an extra auxiliary
input.
-.AUXSEND1&2
22
This 1/4" phone socket is used to send out the
signal from the AUX Bus to external devices such
as effects and sound processors.
-. 2-TRACK IN / OUT
24
Use the Tape input if you wish to listen to your Mix from a Taper Recorder or DAT, You can assign the signal coming
form the Taper Recorder either to a pair of studio monitor using the Control Room assignment on the front panel or
you can also send the signal directly to the Main Mix.
Input
Output
These 1/4" TRS sockets will route the main mix into a tape recorder.
