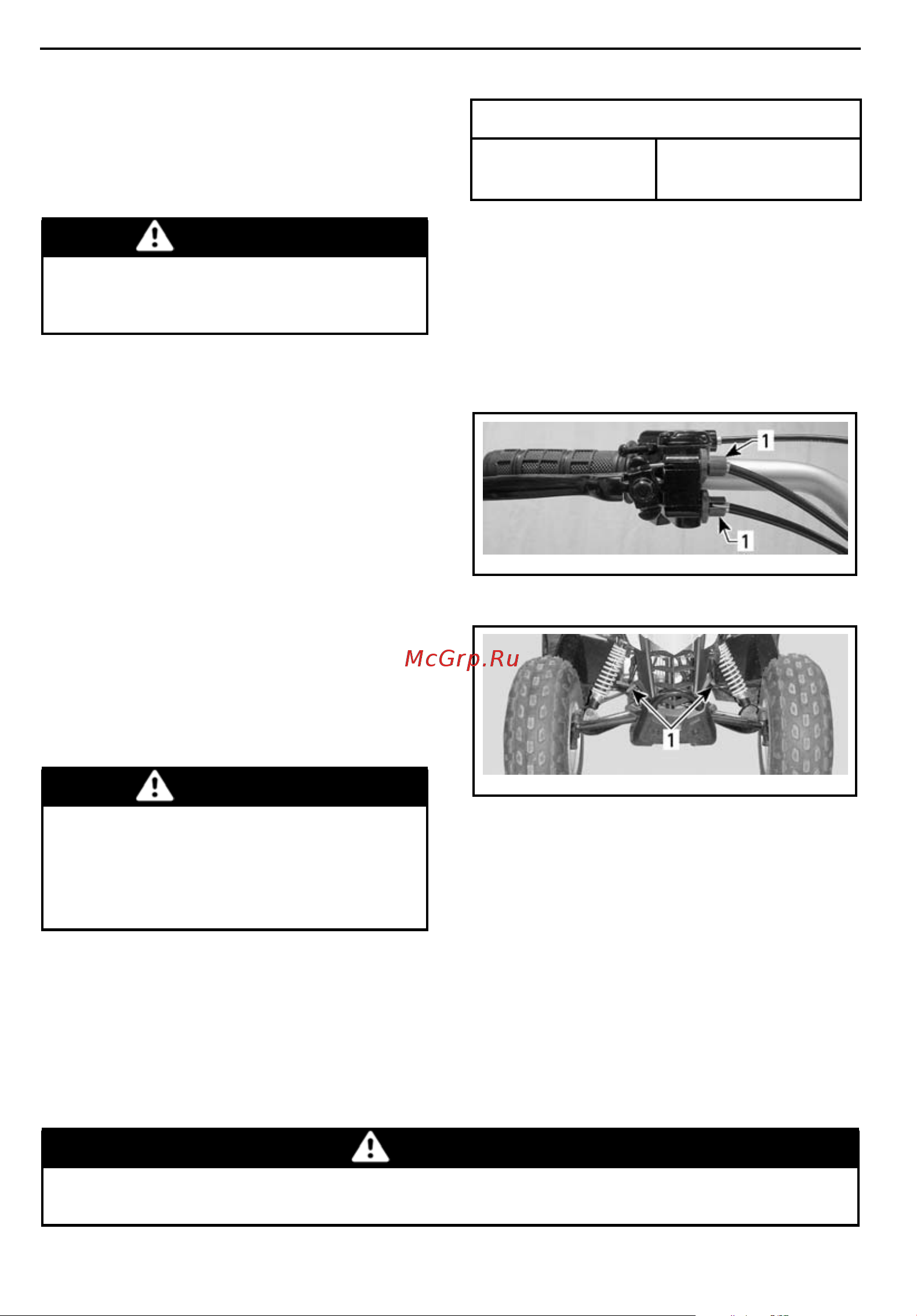

MAINTENANCE PROCEDURES
Mechanical Brakes (DS 70
and DS 90)
Mechanical Brake Inspection
WARNING
Any brake system repair should
be performed by an authorized
Can-Am Dealer.
Check brake lever free-play (both
levers), adjust if necessary.
Check for lever operation, they should
move freely and have a firm feel when
brakes are applied.
If correct adjustment is unattainable,
see an authorized Can-Am dealer.
Inspect brake cables for excessive
wear, kinking or fraying.
Replace any cable that show signs of
wear, fraying or other damages.
Lubricate cables using CABLE LUBRI-
CANT (P/N 293 600 041) to reduce
premature wear and to ensure proper
movement of the cable.
WARNING
Always use a silicone-based lu-
bricant. Using any other lubricant
(such as a water-based lubricant)
may cause the brake cables to stick
or become stiff.
Have your authorized Can-Am dealer
inspect brake shoes for wear or dam-
age.
BRAKE SHOE MINIMUM THICKNESS
FRONT AND
REAR
1.5 mm (.06 in)
See your authorized Can-Am dealer if
a problem is detected concerning the
brake system.
Front Brake Cable Adjustment
Fully tighten all adjustment screws on
brake cables.
vmr2008-106-010_a
1. Adjustment screws on lever
vmr2008-102-009_a
1. Adjustment screws on cables
Press brake lever.
Adjust cable link so it is parallel to cable
support. Turn adjustment screws o
n
cable (not at lever) as required.
While reading this Operator’s Guide, remember that:
WARNING
Indicates a potential hazard that, if not avoided, could result in serious
injury or death.
100
