MAINTENANCE PROCEDURES

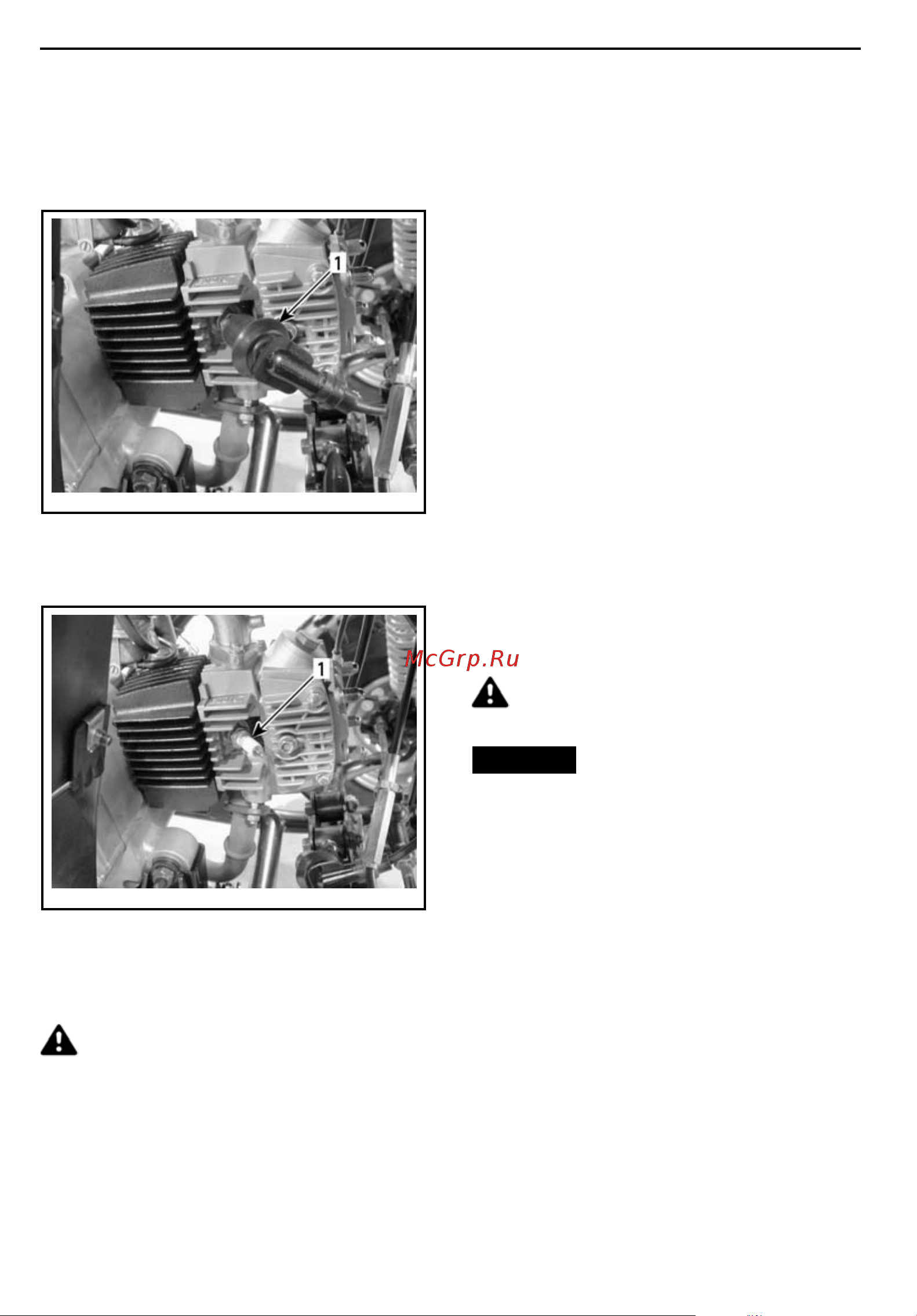

Spark Plug Removal
Disconnect spark plug cable from
spark plug.
vmo2008-008-034_a
1. Spark plug cable
Unscrew spark plug one turn.
vmo2008-008-035_a
1. Spark plug
If possible, clean spark plug and cylin-
der head with pressurized ai
r.
CAUTION Always wear safety
goggles when using press
urized air.
Unscrew and remove spark plug com-
pletely.
Spark Plug Installation
Priortoinstallation,makesurethecon-
tact surface of the cylinder head and
spark plug is free of grime.
Using a feeler gauge, set the spark
plug gap between 0.7 mm to 0.8 mm
(.028 in to .031 in).
Apply anti-seize lubricant over spark
plug threads to prevent a possible
seizure.
Screw spark plug into cylinder head by
hand and tighten with a torque wrench
and proper socket.
Torque spark plug to
11.0 N•m ± 1.1 N•m
(97 lbf•in ±10lbf•in).
Battery
To accessthebattery, removethe seat.
Battery Maintenance
CAUTION Never charge a bat-
tery while installed in vehicle.
NOTICE
Never remove the battery
sealing cap.
These vehicles are equipped with a
VRLA battery (Valve Regulated Lead
Acid). It is a maintenance-free type
battery, there is no need to add water
to adjust electrolyte level.
Clean battery post with a wire brush.
Apply dielectric grease on post to pro-
tect against oxidation.
Battery Inspection
Inspect battery connections for tight-
ness and cleanliness.
Inspect battery support.
94
