MAINTENANCE PROCEDURES

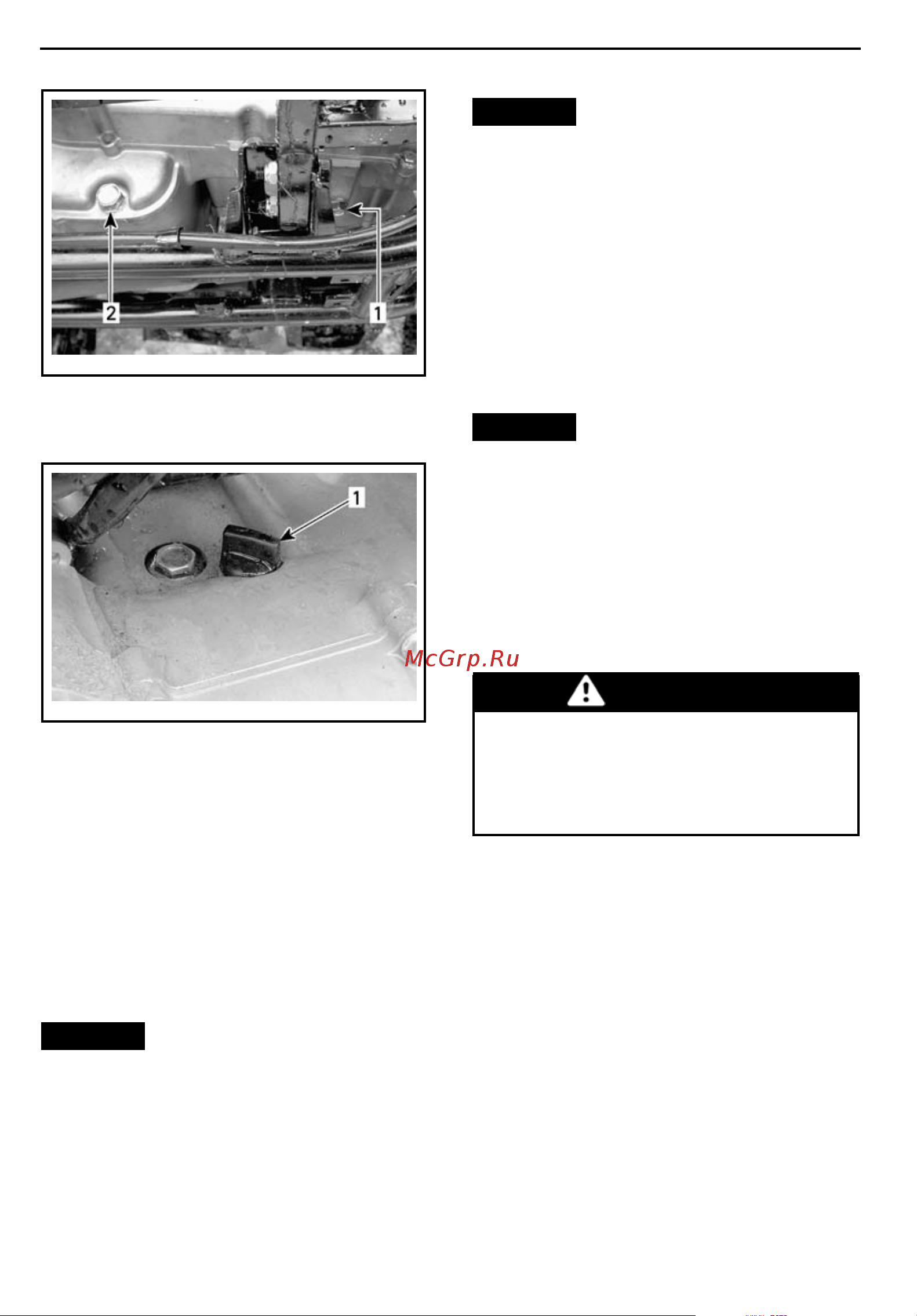

mmo2008-008-056_a
DRAIN PLUG — LH SIDE OF ENGINE
1. Gearbox drain plug
2. Engine oil drain plug
mmo2008-008-059_a
FILL PLUG — LH SIDE OF ENGINE
1. Gearbox oil filler plug
Allow enough time for oil to flow out of
gearbox.
Reinstall drain plug and
torque to 16.0 N•m ± 1.6 N•m
(142 lbf•in ±14lbf•in).
Remove gearbox oil filler plug an
dre-
fill gearbox using 165 ml (6 U.S. oz)
of (P/N 413 801 900) or an equivalent
SAE 75W90 chaincase oil.
NOTICE
There is no dipstick pro-
vided with this vehicle to check gear-
box oil level. Be sure gearbox is
completely drained befor
ereplen-
ishing it with the specified amount
of recommended oil.
NOTICE
Do not use other types of
oil when servicing the gearbox.
Reinstall oil filler plug.
Reinstall all other removed parts.
Throttle Cable
Throttle Cable Inspection
Inspect throttle cable for excessive
wear, kinking or fraying. Ensure cable
moves freely.
NOTICE
The throttle cable mustbe
replaced if any signs of wear, fraying
or other damages are found.
Throttle Cable Lubrication
Lubricate cable using CABLE LUBRI-
CANT (P/N 293 600 041) or an equiva-
lent silicone cable lubricant to reduce
premature wear and to ensure proper
movement of the cable.
WARNING
Always use a silicone-based lu-
bricant. Using another lubricant
(such as a water-based lubricant)
could cause the throttle lever/ca-
ble to stick or become stiff.
Throttle Cable Adjustment
Check throttle lever free-play, adjust if
necessary.
NOTE: If correct adjustment is
unattainable, see an authorized
Can-Am dealer.
The normal throttle free-play is
5 mm to 10 mm (.197in to .394 in).
