Jaguar Pro5 [20/96] Converting to free arm sewing

CONVERTING TO FREE-ARM SEWING

Your machine can be used either as a at- bed or as a free-arm model.

With the extension table in position, it provides a large working surface as a standard at-

bed model.

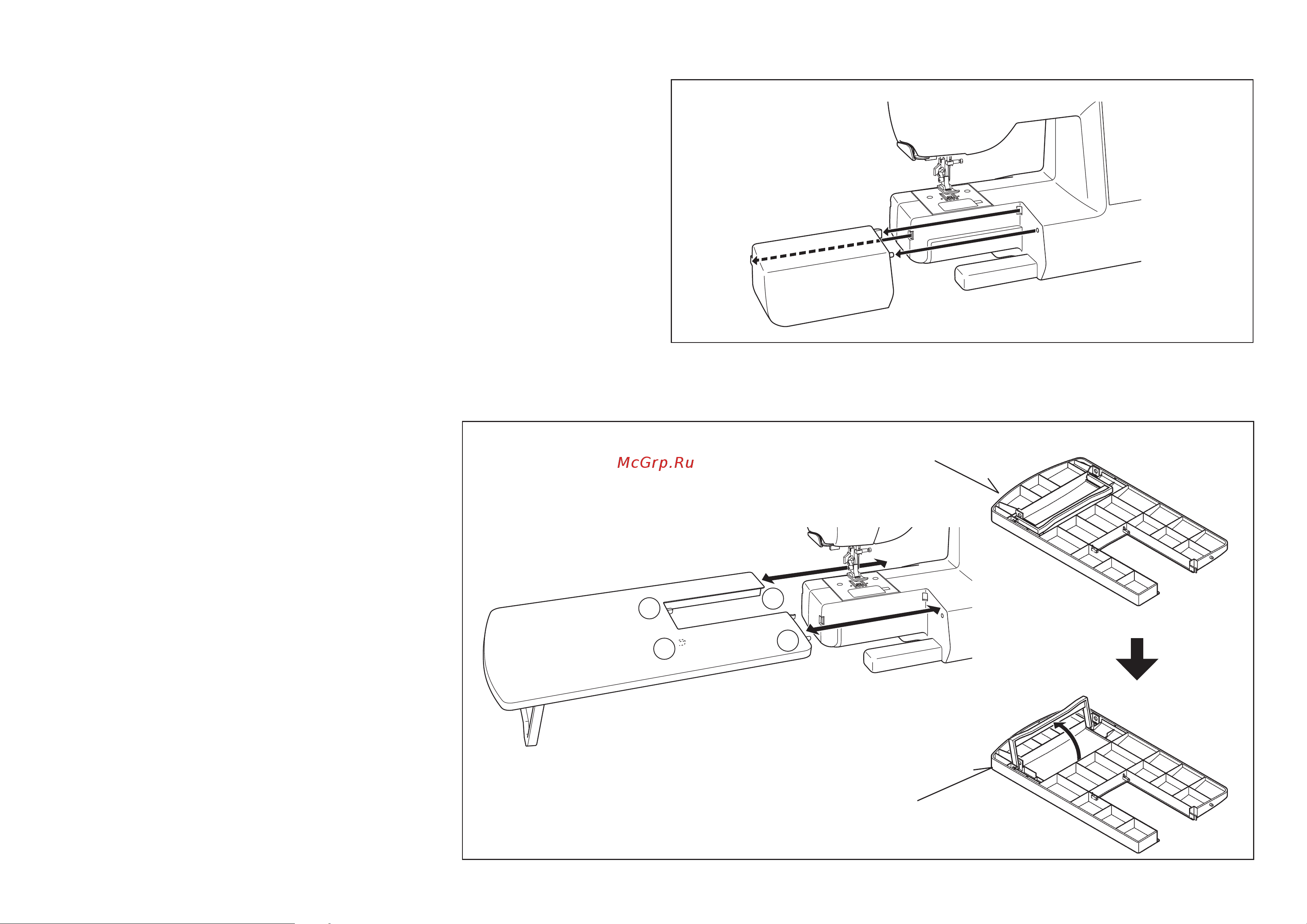

To remove the extension table, hold it rmly with both hands and pull it o󰀨 to the left as

shown. To replace, slide the extension table back into place until it clicks.

With the extension table removed the machine converts into a slim free-arm model for

sewing children’s clothes, cu󰀨s, trouser legs, and other awkward places.

LARGE EXTENSION TABLE (optional)

To place onto the machine, lift the supporting leg of the

extension table, and slide the table into place while tting the

guide pins A, B, C and D into machine as illustrated.

Extension table

Приставная платформа

Приставна платформа

Жалғамалы платформа

Supporting leg

Опорная стойка

Опорна стійка

Тіректік тіреу
