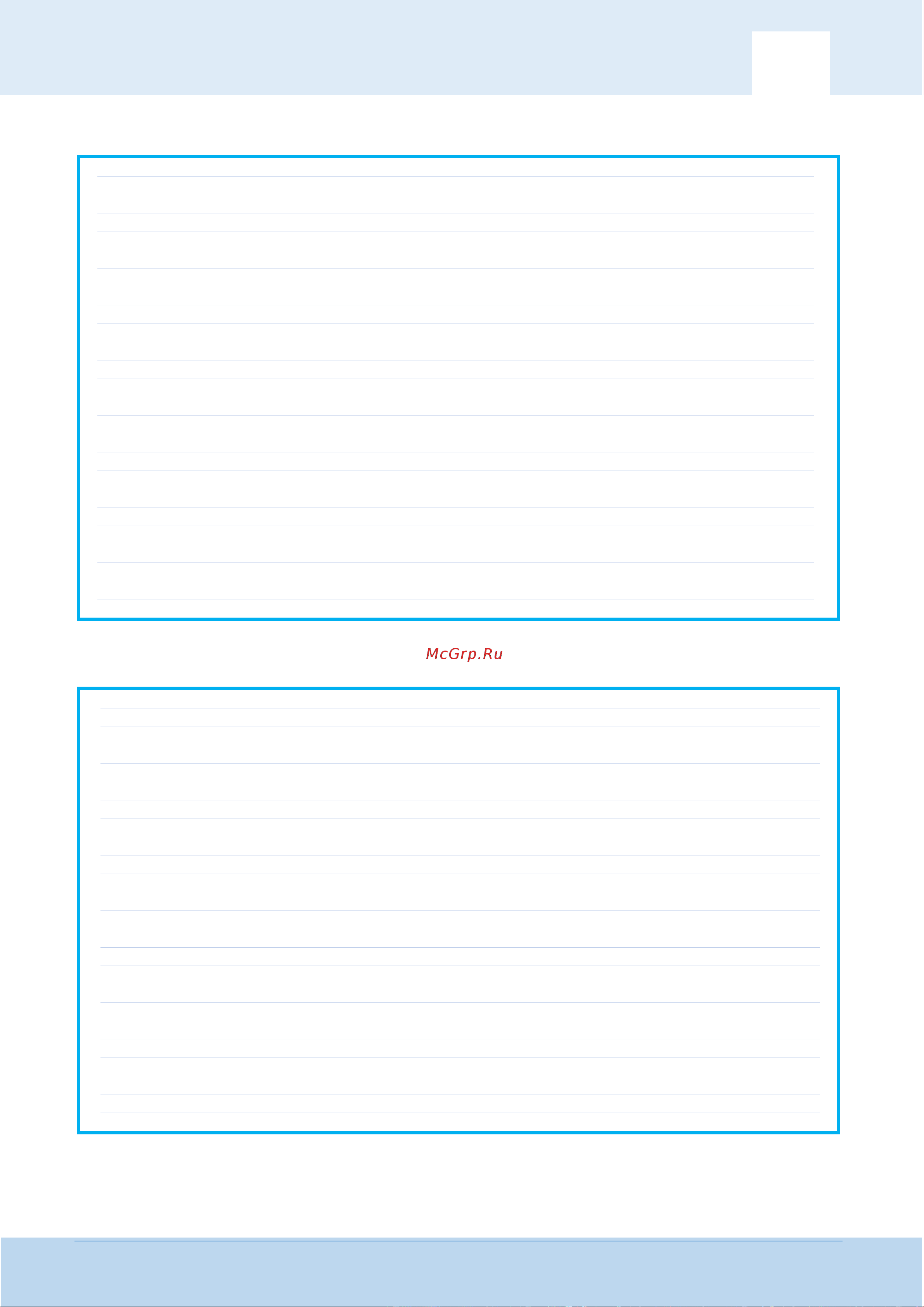

BlacklineX USERGUIDE
BlacklineXUserGuideV1.0 55
…………
X12
TYPE
Compact, passive two-way system
FREQUENCY RESPONSE (5)
62Hz-20kHz ± 3dB, -10dB @ 50Hz
DRIVERS LF: 12” (300mm)/2.5” (63.5mm) voice coil, ferrite motor system
HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
RATED POWER (2)
300W AES, 1200W peak
RECOMMENDED AMPLIFIER
MA2.0, MA3.0, MA5.0Q
SENSITIVITY (8)
97dB
MAXIMUM SPL (9)
122dB continuous, 128dB peak
NOMINAL IMPEDANCE
8 ohms
DISPERSION (-6dB)
80° H x 50° V (user-rotatable)
CROSSOVER
2.3kHz passive
ENCLOSURE Multi-angle birch/poplar ply
FINISH
Black textured paint
PROTECTIVE GRILLE Black perforated steel with scrim cloth backing
FITTINGS
Top hat for pole mounting
CONNECTORS
2 x NL4 type
PIN CONNECTIONS (INPUT
1+/1-
PIN CONNECTIONS (LINK)
1+/- to 1+/-
FITTINGS
20 x M8 inserts, pole-mount socket, 1 x bar handle
DIMENSIONS
(W) 358mm x (H) 574mm x (D) 337mm
(W) 14.1ins x (H) 22.6ins x (D) 13.7ins
WEIGHT
17kg (37.5lbs)
ACCESSORIES Wall bracket, eyebolts
X15
TYPE
High-power, passive two-way system
FREQUENCY RESPONSE (5)
55Hz-20kHz ± 3dB, -10dB @ 45Hz
DRIVERS
LF: 15” (380mm)/3” (75mm) voice coil, ferrite motor system
HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
RATED POWER (2)
400W AES, 1600W peak
RECOMMENDED AMPLIFIER
MA3.0, MA5.0Q
SENSITIVITY (8)
99dB
MAXIMUM SPL (9)
125dB continuous, 131dB peak
NOMINAL IMPEDANCE 8 ohms
DISPERSION (-6dB)
90° H x 50° V (user-rotatable)
CROSSOVER
2.2kHz passive
ENCLOSURE
Multi-angle birch/poplar ply
FINISH
Black textured paint
PROTECTIVE GRILLE
Black perforated steel with scrim cloth backing
CONNECTORS
2 x NL4 type
PIN CONNECTIONS (INPUT
1+/1-
PIN CONNECTIONS (LINK)
1+/- to 1+/-
FITTINGS 19 x M8 inserts, pole-mount socket, 2 x bar handle
DIMENSIONS
(W) 427mm x (H) 690mm x (D) 419mm
(W) 16.8ins x (H) 27.2ins x (D) 16.5ins
WEIGHT
24kg (52.9lbs)
ACCESSORIES
Wall bracket, eyebolts
