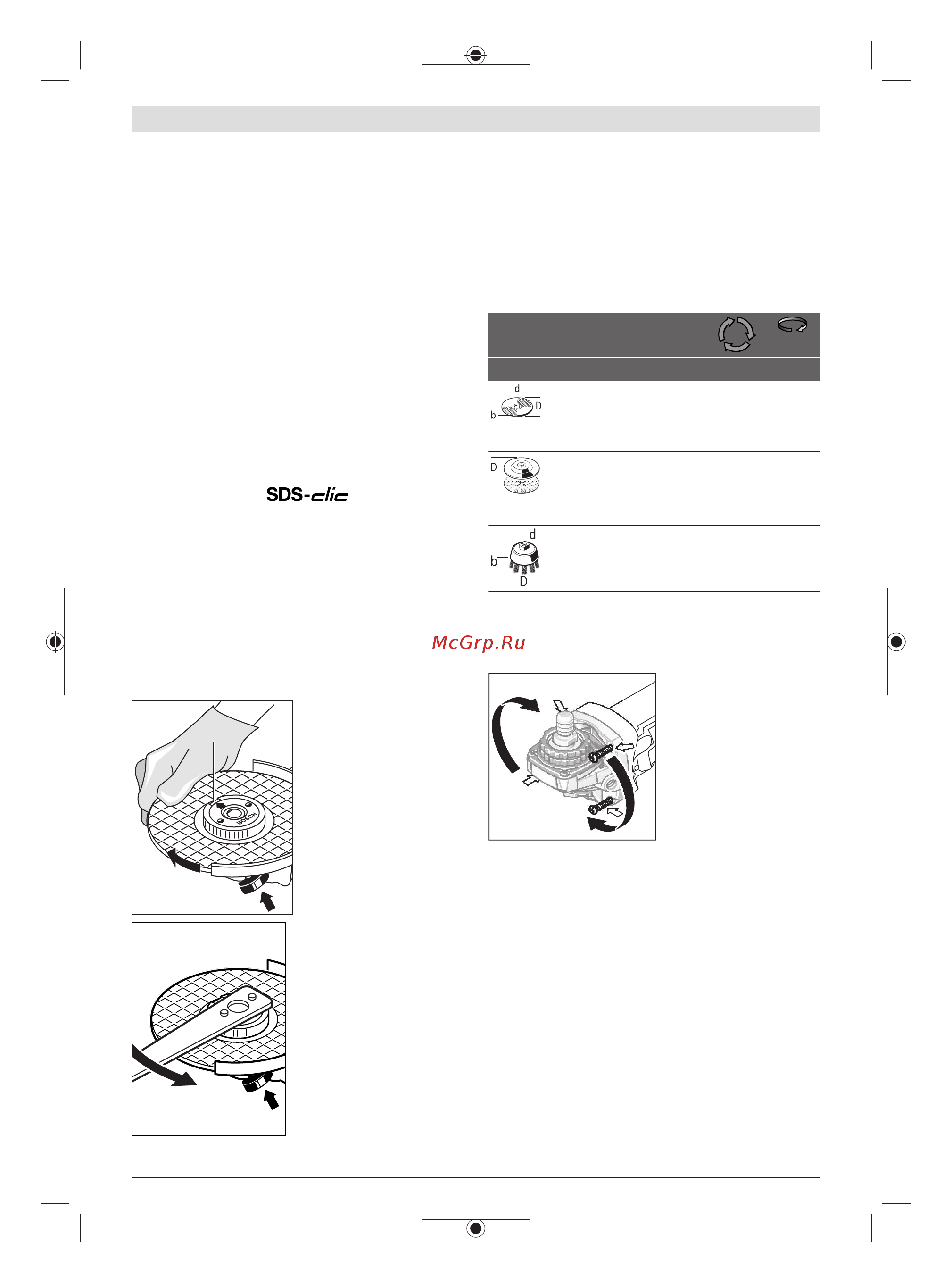

22 | English
Flap disc
u Always fit the hand guard (16) when working with the
flap disc.
Rubber sanding pad
u Always fit the hand guard (16) when working with the
rubber sanding pad (17).
See the graphics page for fitting instructions.
Screw on the round nut (19) and tighten with the combina-
tion wrench (4)/(5).
Cup brush/disc brush
u Always fit the hand guard (16) when working with the
cup brush or disc brush.
See the graphics page for fitting instructions.
The cup brush/disc brush must be screwed onto the grinding
spindle until it rests firmly against the grinding spindle flange
at the end of the grinding spindle thread. Tighten the cup
brush/disc brush with an open-ended spanner.
Quick-clamping nut
To change the abrasive tool easily without having to use any
additional tools, you can use the quick-clamping nut (12) in-
stead of the clamping nut (11).
u The quick-clamping nut (12) may be used only for
grinding or cutting discs.
Only use quick-clamping nuts (12) that are in good work-
ing order and not damaged.
When screwing on, make sure that the printed side of the
quick-clamping nut (12) is not facing the grinding disc;
the arrow must be pointing towards the index mark (23).
(23)
Press the spindle lock but-
ton (1) to lock the grinding
spindle. To tighten the
quick-clamping nut, turn
the grinding disc firmly
clockwise.
If the quick-clamping nut
has been attached correctly
and is not damaged, you
can loosen it by hand by
turning the knurled ring an-
ticlockwise. Never loosen a
tight quick-clamping nut
with pliers. Always use
the combination wrench.
Insert the combination
wrench as shown in the fig-
ure.
Approved abrasive tools
You can use all the abrasive tools mentioned in these operat-
ing instructions.
The permissible speed [min
-1
] or the circumferential speed
[m/s] of the abrasive tools used must at least match the val-
ues given in the table.
It is therefore important to observe the permissible rota-
tional/circumferential speed on the label of the abrasive
tool.
max. [mm] [mm]
D b d [min
-1
] [m/s]
100
115
125
6
7
7
16.0
22.2
22.2
11,000
11,000
11,000
80
80
80
100
115
125
–
–
–
–
–
–
11,000
11,000
11,000
80
80
80
70
75
30
30
M 10
M 14
11,000
11,000
45
45
Rotating the Machine Head
u Pull the plug out of the socket before carrying out any
work on the power tool.
The machine head can be
rotated in 90° increments.
In this way, the on/off
switch can be brought into
a more favourable handling
position for particular ap-
plications, e.g. for left-
handed tool users.
Completely unscrew the
four screws. Rotate the ma-
chine head carefully,
without removing it from the housing, into the new posi-
tion. Screw in and retighten the four screws.
Dust/Chip Extraction
The dust from materials such as lead paint, some types of
wood, minerals and metal can be harmful to human health.
Touching or breathing in this dust can trigger allergic reac-
tions and/or cause respiratory illnesses in the user or in
people in the near vicinity.
Certain dusts, such as oak or beech dust, are classified as
carcinogenic, especially in conjunction with wood treatment
additives (chromate, wood preservative). Materials contain-
ing asbestos may only be machined by specialists.
– Use a dust extraction system that is suitable for the ma-
terial wherever possible.
– Provide good ventilation at the workplace.
– It is advisable to wear a P2 filter class breathing mask.
1 609 92A 6KK | (07.06.2021) Bosch Power Tools
