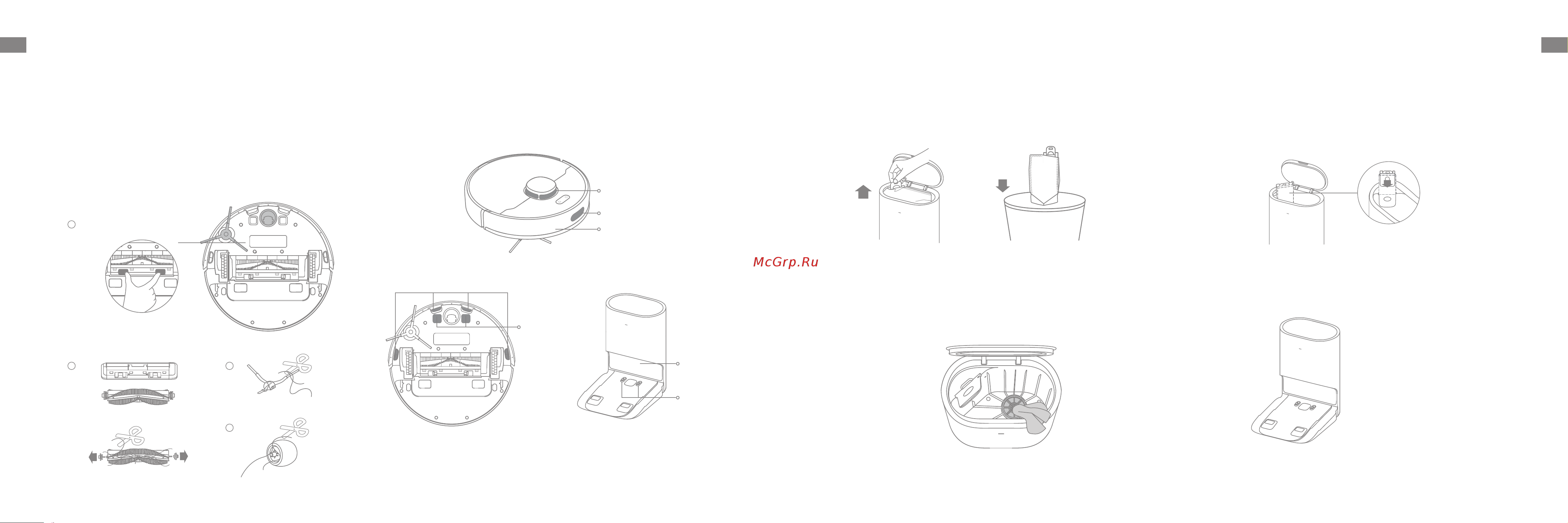

Routine Maintenance

1. Press the brush guard clips inwards to remove the brush guard and lift the

brush out of the robot.

2. Pull out the brush covers as shown in the diagram. Use a proper tool to

remove the hair tangled in the brush.

3. Remove and clean the side brush.

4. Use a tool such as a small screwdriver to separate the axle and tire of the

universal wheel. Do not use excessive force.

Main Brush, Side Brush and Universal Wheel Charging Contacts and Robot Sensors

Clean the charging contacts, robot sensors and the signaling area of the base

station with a soft, dry cloth:

Note: Wet cloth can damage sensitive elements within the robot and the base

station. Please use dry cloth for cleaning.

Laser Distance

Sensor (LDS)

Bumper

Return-to-Base Sensor

Cli Sensors

Charging

Contacts

Replace the Dust Collection Bag

Routine Maintenance

It is recommended to replace the bag every 4-6 weeks.

1. Discard the dust collection bag 3. Install a new dust collection bag

2. Wipe the lter with a dry cloth 4. Close the upper cover of auto-empty base

Note: When taking out the dust collection bag, close the dust bag handle to

avoid dust leaking out.

Note: Do not close the base forcelly, if the upper cover of base cannot be

closed and the dust collection bag is not installed.

Signaling

Area

Charging

Contacts
