(Original instructions) ENGLISH
9

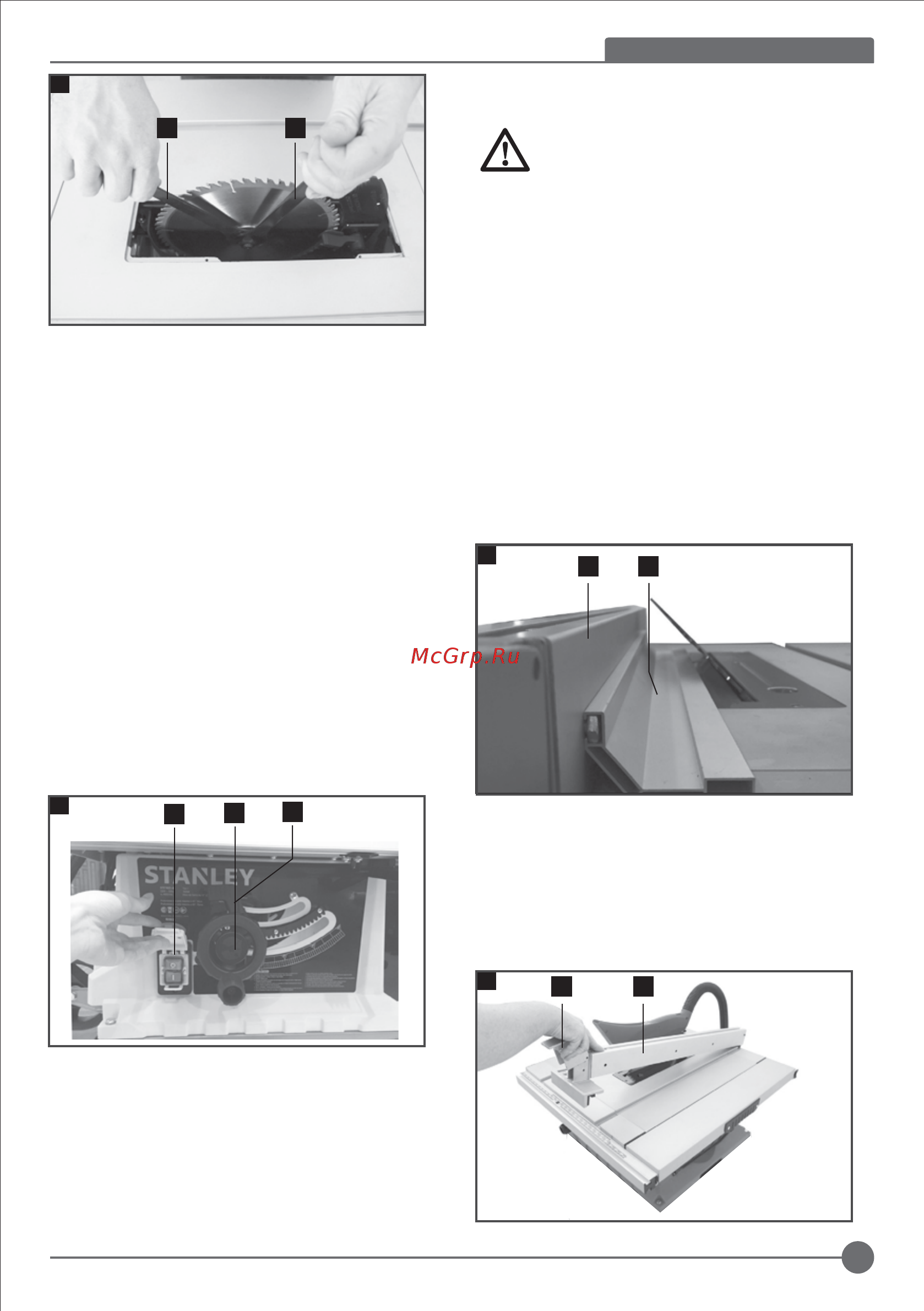

Setting the angle (Fig. J)
Set the required bevel angle from 0 to 45 degree
Before cutting, ensure the saw blade (4) and mitre
gauge (6) no collision
- Loose the Bevel adjustment locking knob (10).
- Set up the desired angle then lock the knob again
Working with the rip fence
Setting the fence height (Fig. K)
- The fence rail (i) of the rip fence (5) has two guiding
surface with different heights.
- Depending on the thickness of the material to be cut, the
higher side of the fence rail (i) has to be used for thick
material (work piece thickness above 25mm) and the
lower side of the fence rail for thin material (work piece
thickness below 25mm).
- For the adjustment, loosen the bolts on the side of the rip
fence (5) and push the fence rail (i) on he guide,
depending on the required position.
- Tighten the bolts again.
Rip fence assembly (Fig. L)
- Fix the rip fence (5) at the back side and press the locking
handle (15) downwards.
- When disassembly, pull the locking handle up and remove
the rip fence (5).
- The rip fence could be locked setting with the rear knurled
nut.
5. Warning! Turn the nut in the rotational direction of the saw
blade.
6. Remove the outer flange and take out the saw blade from
the inner flange, with diagonally downwards movement.
7. Carefully clean the flange with a before fixing the new saw
blade.
8. Insert the new saw blade and fasten the outer flange. The
outer flange has a Φ30mm raised boss which fits in side
the blade bore.
Warning! The teeth of a new blade are very sharp and can be
dangerous. Make sure the teeth point down at the front of the
table, aligned with the arrow marked on the saw blade guard
(2).
9. Attach the table insert (20) and the saw blade guard (2)
again and set them.
10. Before working, check the functionality of the guards.
On/Off switch (Fig. J)
- To switch the machine on, press the green start “I” button.
- To switch the machine off, press the red stop “O” button.
Cutting depth (Fig. J)
Turn the blade elevation handle (11) to set the blade to the
required cutting depth.
- Turn anti-clockwise; to increase the cutting depth
- Turn Clockwise; to reduce the cutting depth
After each new adjustment it is advisable to carry out a trial
cut in order to check the set dimensions.
I
17 17
J
8
11
10
K
i5
L
515
