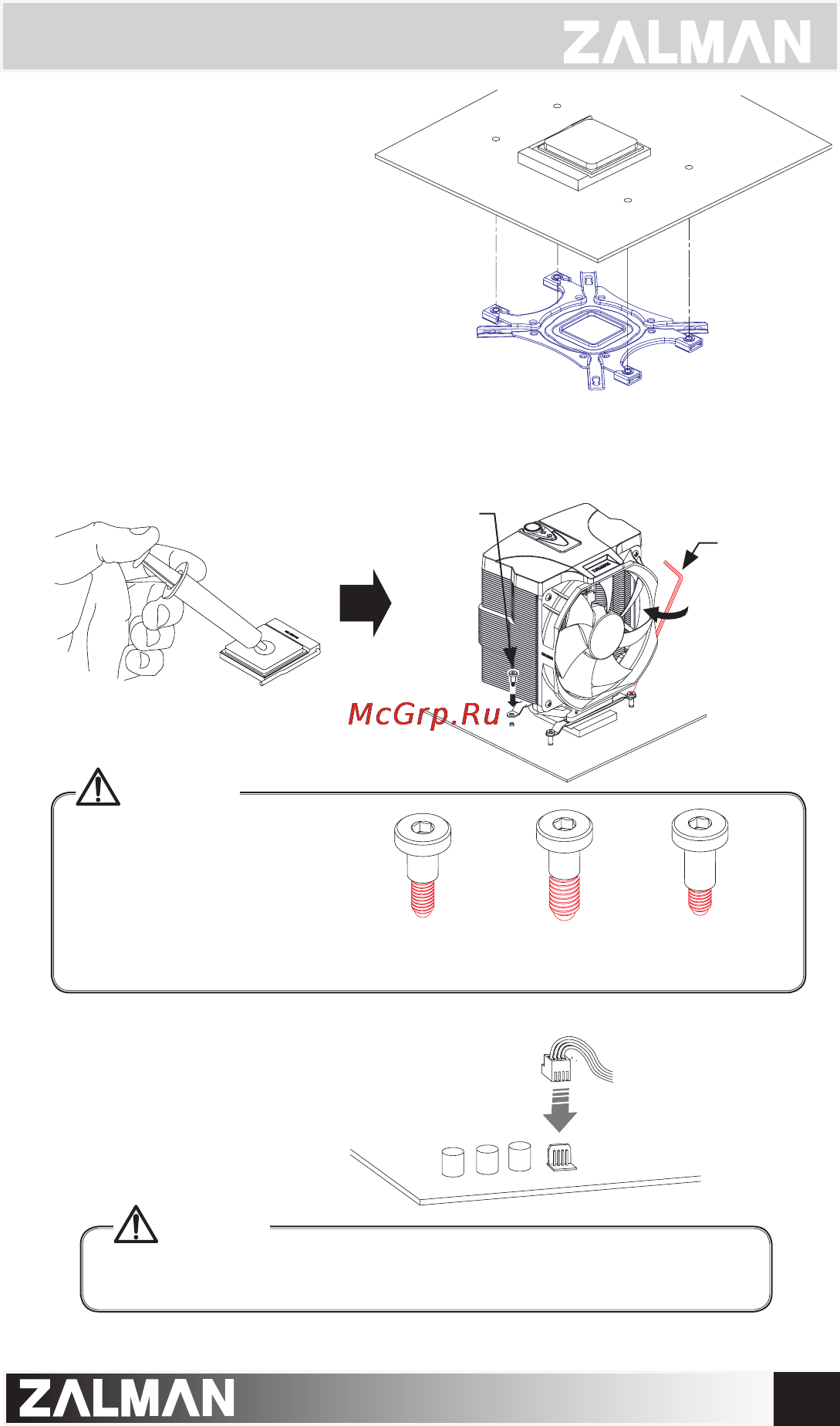

11
.COM
⑤
Align the Backplate’s Nuts
with the motherboard’s
Clip Support’s installation holes
and fasten to the motherboard.
M/B
Silver Bolt B
(3mm)
⑥
Apply a suitable amount of the included Thermal Grease on the CPU’s
surface and then fasten the Silver Bolts to install the cooler.
(Please use the designated Bolts in accordance with Socket Types.)
Check the size of the silver-
colored bolts before installing
because silver-colored bolt A
and B have similar color.
Gold Bolts
(Socket 1366)
Sliver Bolts A (4mm)
(Socket 2011)
Sliver Bolts B (3mm)
(Socket 1156/1155/
775/AMD)
Caution
Wrench
Please make sure that PWM Control Mode is activated in the
motherboard’s BIOS settings.
Caution
⑦
Connect the cooler’s 4-pin connector to the
motherboard’s CPU Fan header.
M/B
