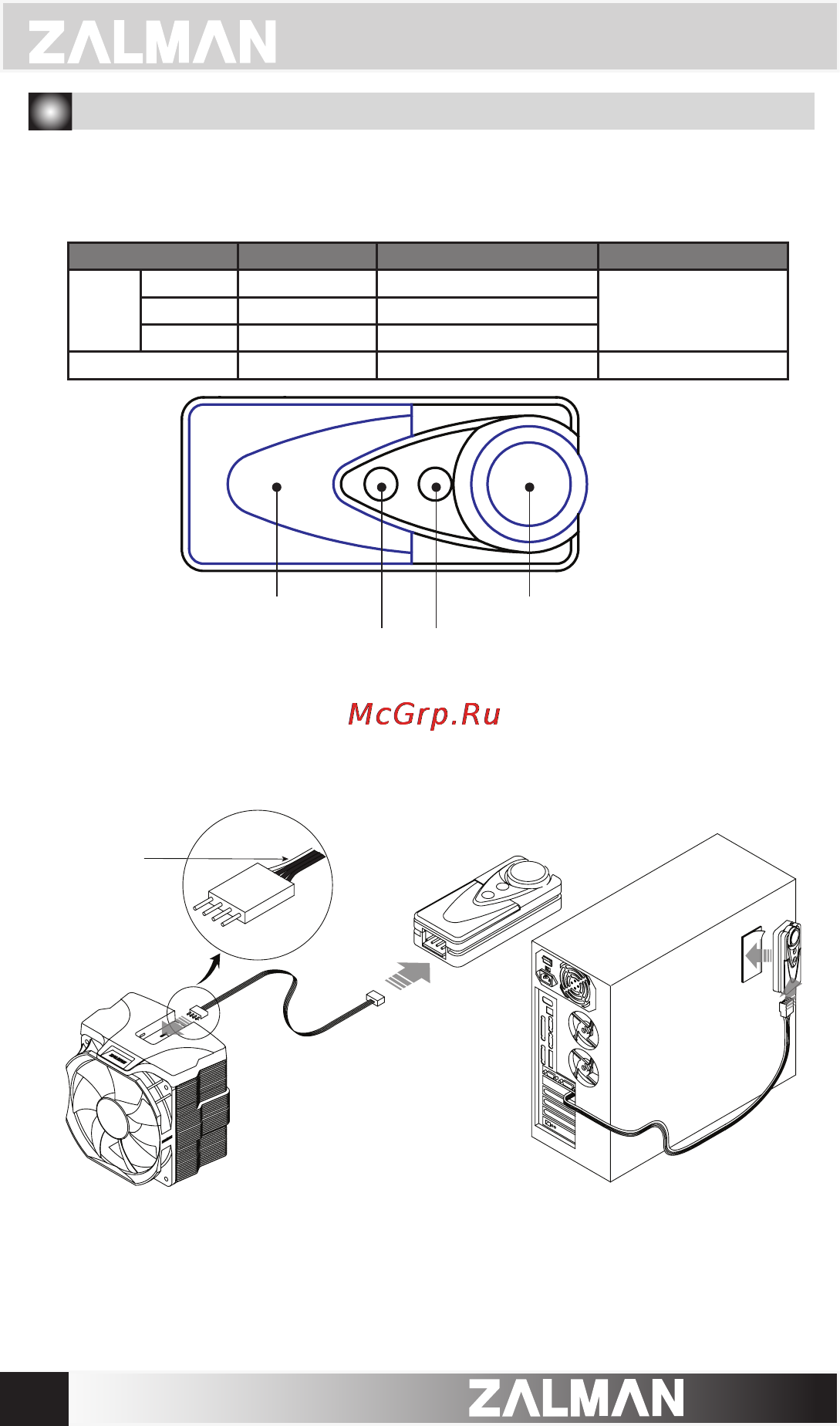

6. PWM Mate Operation
1) Mode Setting
Each iterative press of the PWM Mate’s button will select the next PWM Mate
mode (4 modes).
Mode Color Indicator RPM Manual RPM Dial
AUTO
High Red 1000~2150 rpm
NMid Purple 1000~1950 rpm
Low Blue 1000~1500 rpm
MANUAL Green 1000~2150 rpm Y
Mode Button
Manual RPM Dial
Auto Mode Indication LED
Manual Mode Indication LED
2) Usage of PWM Mate Extension Cable
After removing the PWM Mate from the main unit, the PWM Mate can be
relocated externally by connecting using the extension cable.
