Installation Requirements

1) Space Requirements

2) Air Guide Removal

3) Cooler Orientation

4) (For heatsink-installed RAM users) Check for physical

interference between the RAM and CPU

The cooler’s installation requires an unobstructed space of 140mm(width),

140mm(length), and 165mm(height), with the CPU as a central reference point.

Please check if components such as ODDs and PSU protrude into the required

space.

Air guides on enclosures must be removed before the cooler’s installation since

they protrude into the cooler’s required space.

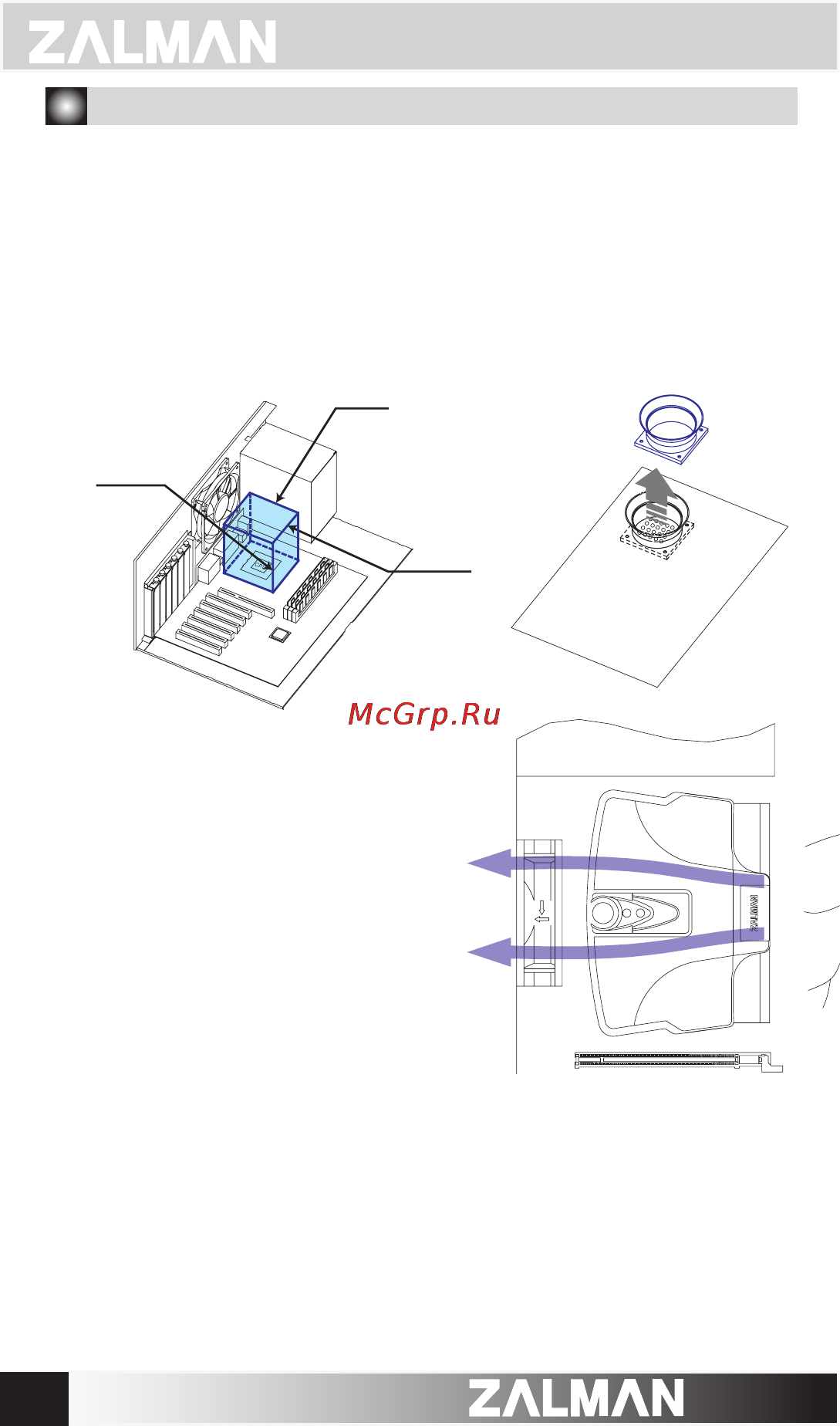

As shown in the diagram below, it

is recommended that the cooler be

installed so that air ows from the

cooler toward the enclosure’s rear

exhaust fan to be released.

* Recommended cooler orientation

may differ according to the

motherboard model.

For users of Intel and AMD motherboards, please check the RAM’s height before

installation. If the RAM’s height exceeds 36mm (1.42”), interference between CPU cooler

and RAM may prevent the use of Dual/Full-Channel Mode.

140㎜

165㎜

140㎜
