Zalman CNPS10X Extreme [6/12] Caution
![Zalman CNPS10X Extreme [6/12] Caution](/views2/1111007/page6/bg6.png)
6
.COM
Socket 775
Socket 1156/1155
Socket 1366
Take note of the orientation of the Nuts and the Side Caps.
X
O
Caution
2) Intel Socket 1366/1156/1155/775 Installation
①

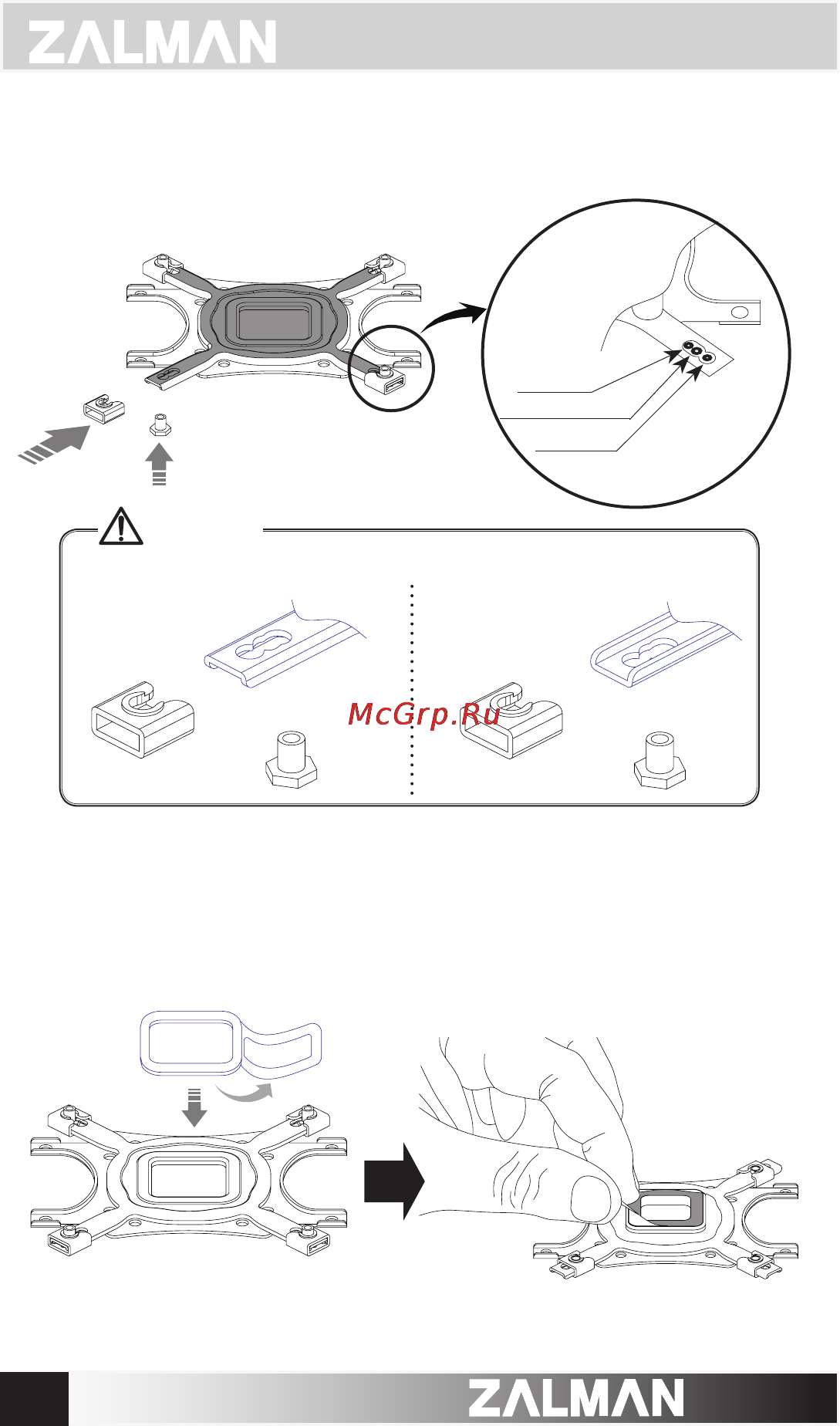

Install Bolts to the Backplate according to the Socket Type and secure
with Side Caps.
1
2
②
Socket 1366/1156/1155 Installation
Attach Double-sided Tape to the center of the Backplate and remove
the Double-sided Tape’s Cover.
※
Socket 1366/1156/1155 Installation does not require the Loading Block.
Double-sided Tape
