Zalman CNPS10X Extreme [8/12] Caution

.COM

④

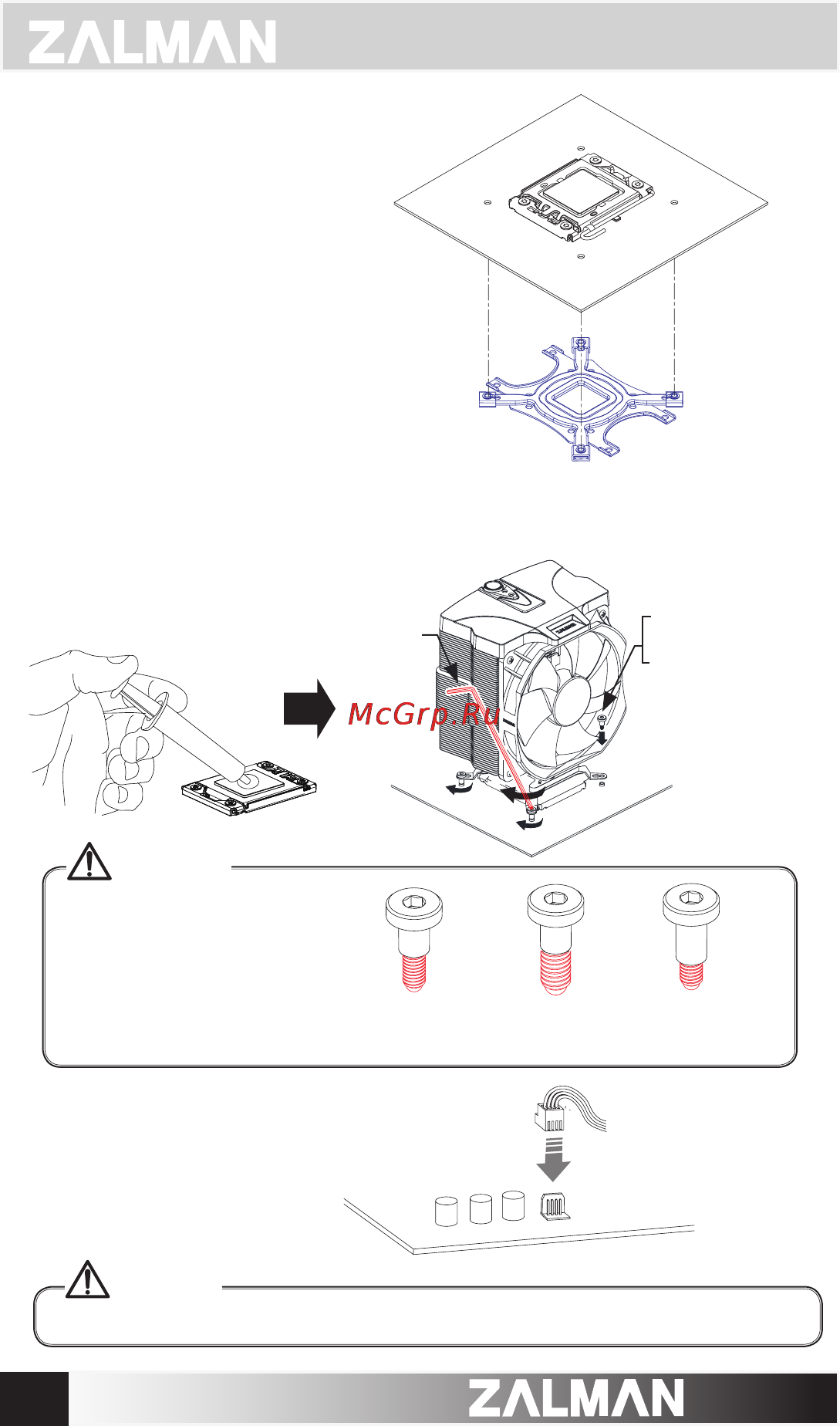

Align the Backplate’s Nuts with

the motherboard’s Clip Support

installation holes and then fasten

to the motherboard.

M/B

⑥

Connect the cooler’s 4-pin connector to the

motherboard’s CPU Fan header.

M/B

Gold Bolt

(Socket 1366)

Sliver Bolt B (3mm)

(Socket 1156/1155/775)

Wrench

⑤

Apply a suitable amount of the included Thermal Grease on the CPU’s

surface and then fasten the Bolts to install the cooler.

Check the size of the silver-

colored bolts before installing

because silver-colored bolt A

and B have similar color.

Gold Bolts

(Socket 1366)

Sliver Bolts A (4mm)

(Socket 2011)

Sliver Bolts B (3mm)

(Socket 1156/1155/

775/AMD)

Caution

Please make sure that PWM Control Mode is activated in the motherboard’s BIOS settings.
