Zalman CNPS10X Extreme [5/12] Intel socket 2011 installation
![Zalman CNPS10X Extreme [5/12] Intel socket 2011 installation](/views2/1111007/page5/bg5.png)
5
.COM

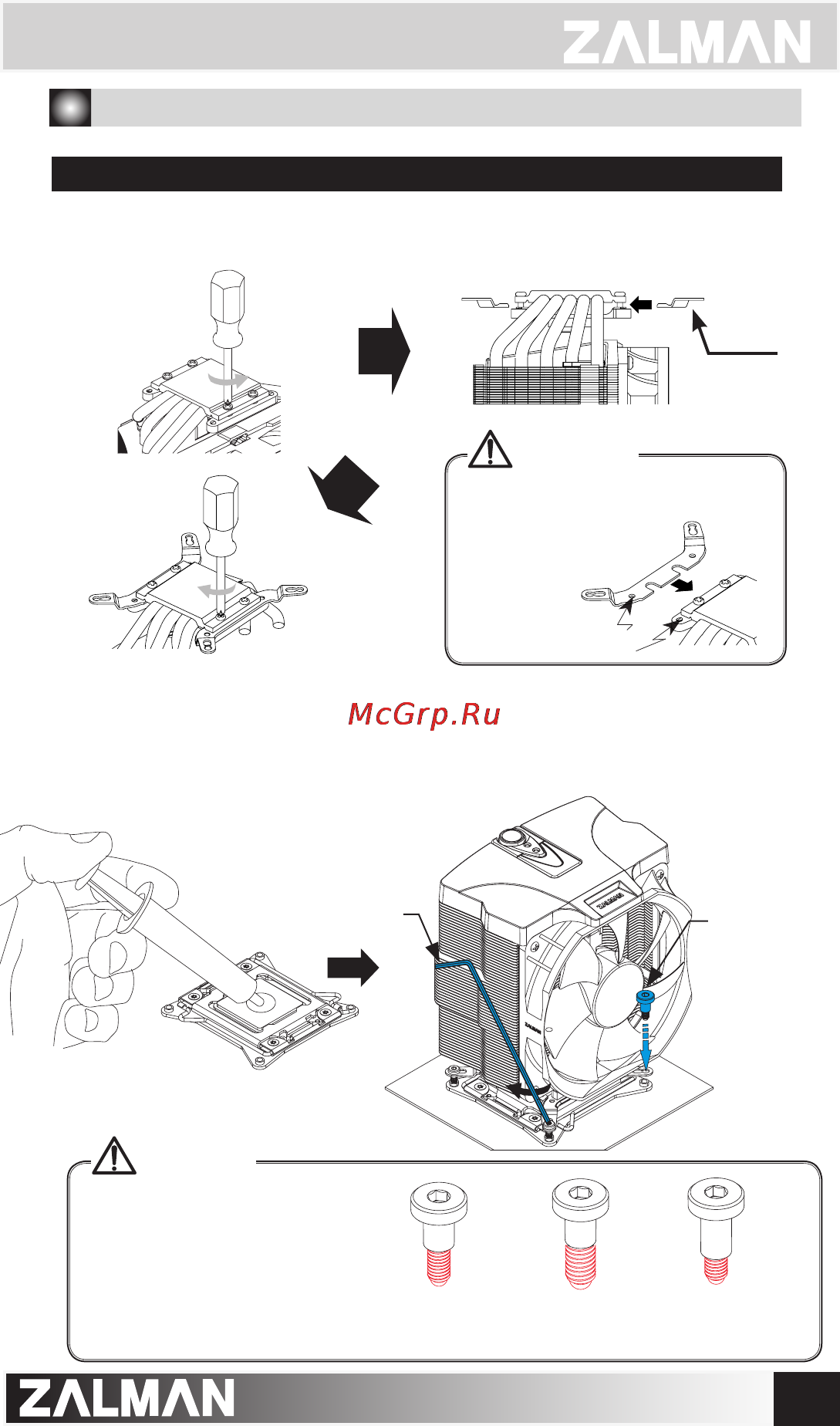

5. Installation
A
.
Intel Socket Installation
1) Intel Socket 2011 Installation
-
Unfasten the Bolts on the Cooler’s Base one thread, insert the Intel Clip
between the Cover and the Base, and then refasten the Bolts.
Make sure the Intel Clip’s ingresses
are ush against
the protrusions of
the Base Cover.
Align
Intel Clip
- Apply a suitable amount of the included Thermal Grease on the CPU’s
surface and then fasten the Bolts to install the cooler.
Check the size of the silver-
colored bolts before installing
because silver-colored bolt A
and B have similar color.
Gold Bolts
(Socket 1366)
Sliver Bolts A (4mm)
(Socket 2011)
Sliver Bolts B (3mm)
(Socket 1156/1155/
775/AMD)
Sliver Bolt A
(4mm)
Wrench
Caution
Caution
