RESERATOR 1
www.zalman.co.kr www.zalmanusa.com
10

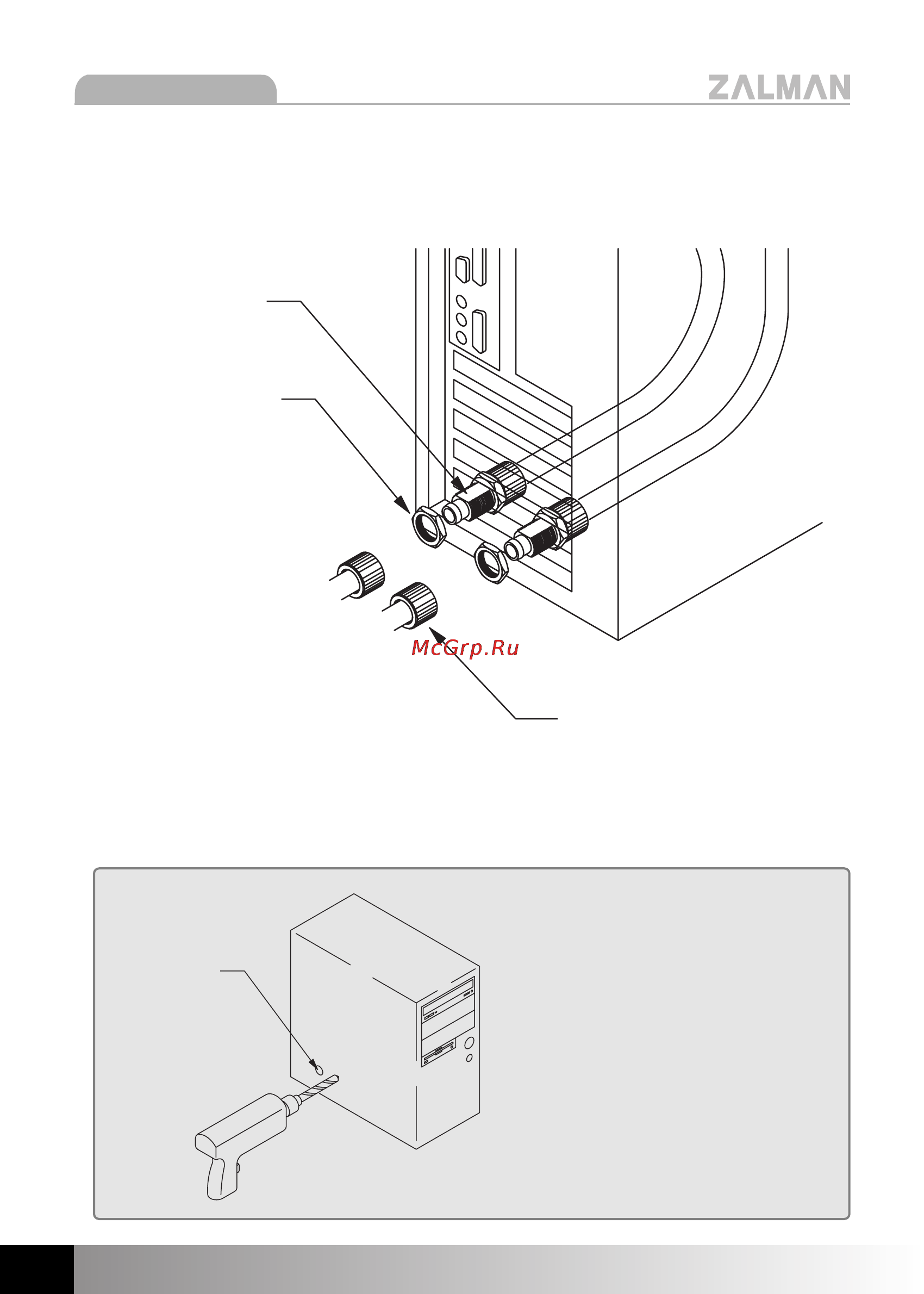

5.4 Fasten the Universal Fitting
If you want to drill the holes in the
side of the case for fastening, each
of them should be 16 mm in diameter.
The tube holes should be made at
the same height as the slot holes at
the back of the case.
Universal Fitting
Fitting Nut
Fitting Cap
If the universal fitting is to be fastened on the PCI slot hole in the back of the case, separate
the fitting cap and the fitting nut from the universal fitting. Then, insert the universal fitting into
the PCI slot hole from the inside towards the outside as shown and fasten with fitting nuts.
ф16 Hole
