RESERATOR 1

www.zalman.co.kr www.zalmanusa.com

English

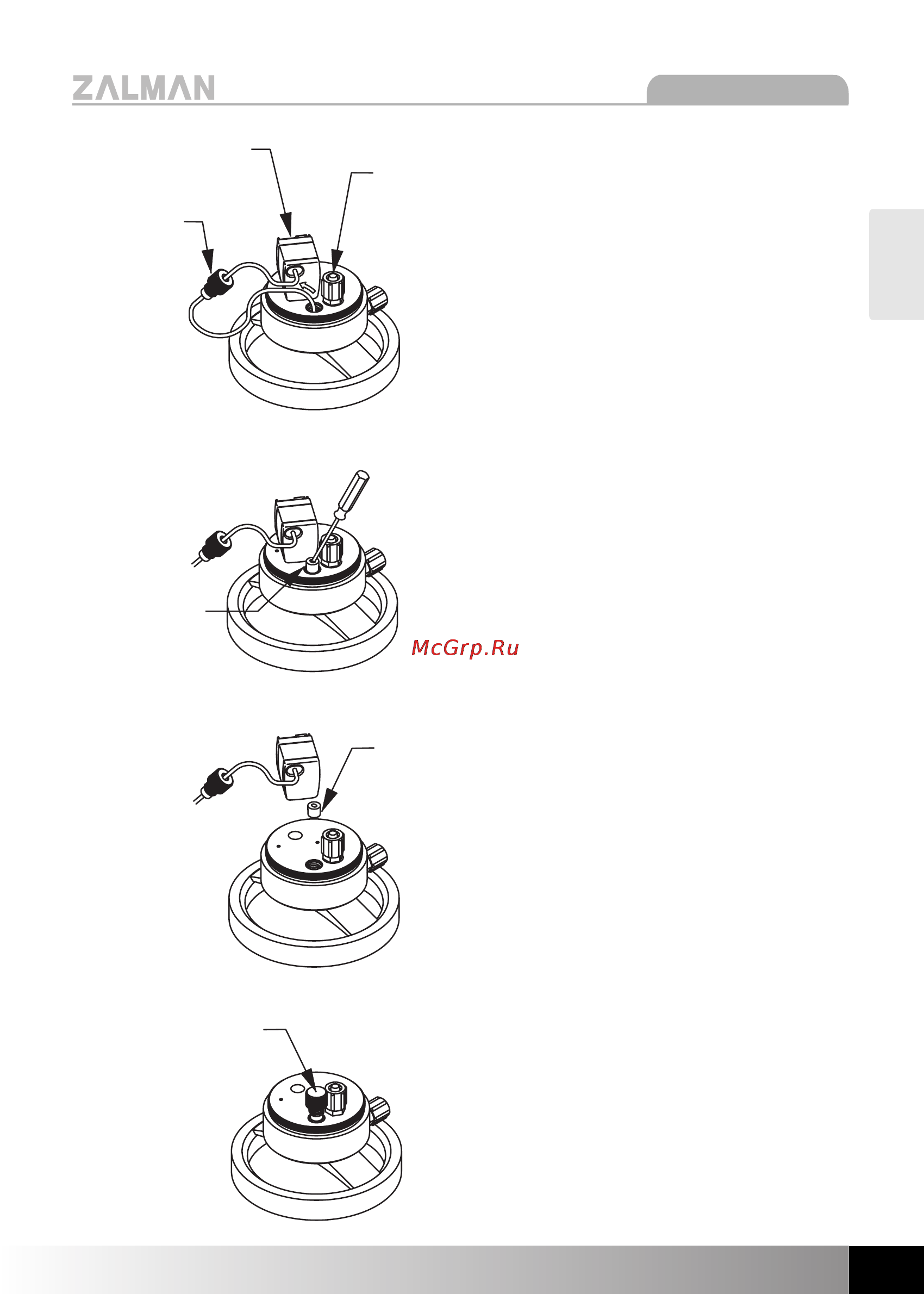

5) Take out the power cable - pull the

water pump power cable out through

the cable hole.

6)Remove the cable fitting - take the

cable fitting out of the hole as shown

by using a screwdriver or an awl.

7) Remove the integrated water pump -

pull the water pump off the sink base

as shown.

8)Put on the Sealing Bolt B - after

removing the cable fitting, screw on

the Sealing Bolt B. Fasten until tight. If

this is not done properly it may cause

leakage.

9)Reassemble the sink base - after all

the steps are taken, reattach the sink

base to the main body firmly. Take

proper care in doing this as leakage

may result if not done correctly.

Sealing Bolt A

Water Pump

Compression

Fitting

Cable Fitting

Sealing Bolt B
