Separate the Reserator and Water Block

When moving this product to another location, or replacing the coolant or the water block,

separate the Reserator and the water block from the silicone tubes as shown below.

7.1 Moving the Reserator or Changing the Coolant

1) Turn off the PC’s power.

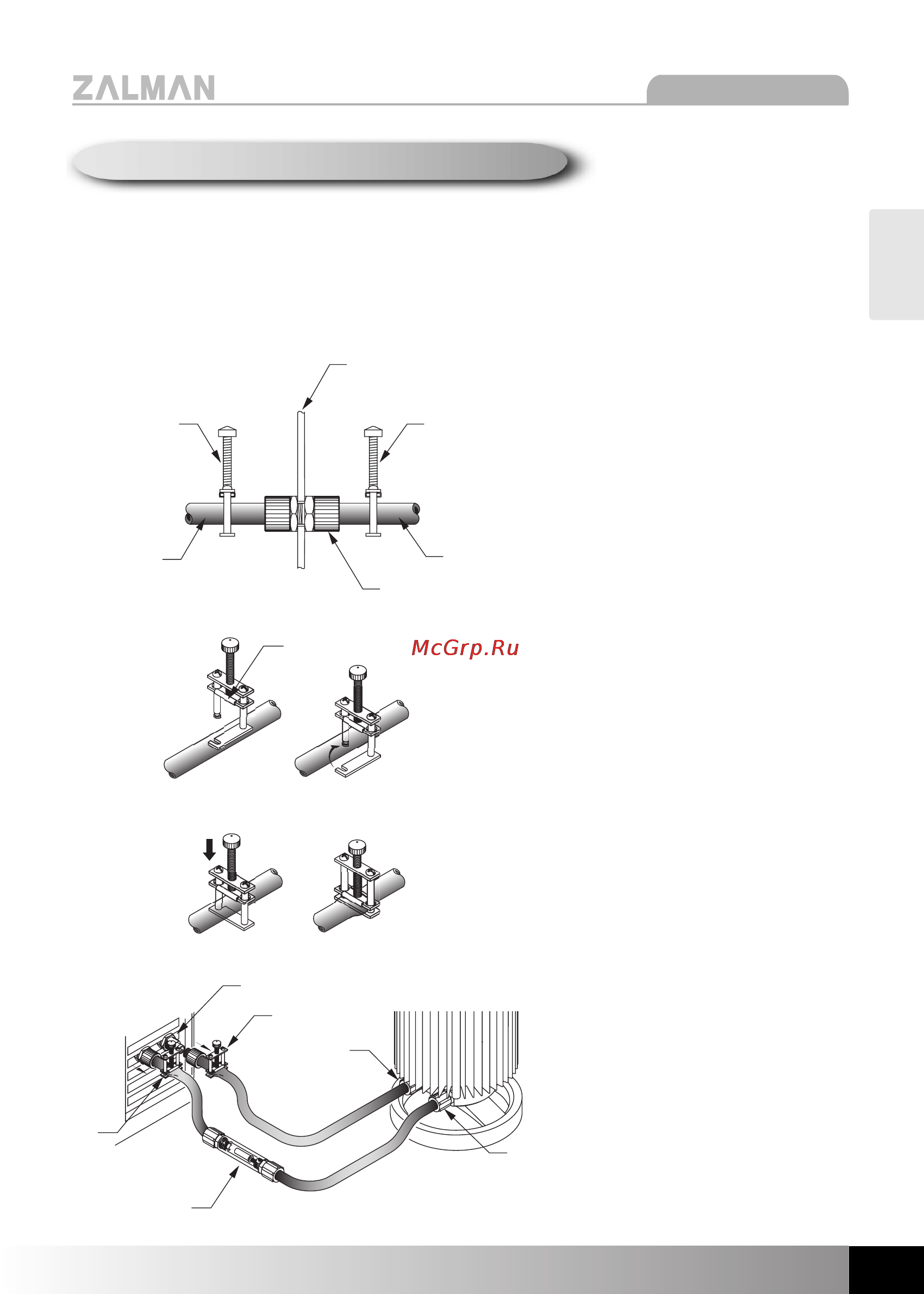

2) Using the tube clamps, as shown

in the diagram, insert the tubes in

to both sides of the Universal Fitting.

If the press clip isn’t properly tightened,

there may be leaks, so make sure

that the silicone tube is placed in

the middle of the clamp.

3) Turn clamp screw until it is tight.

4)Unscrew the Universal Fitting

Caps on the outside of the case

one by one. If you unscrew the

Fitting Socket Caps inside the

case, residual coolant may spill into

the case.

Computer Case

Clamp

Silicone

Tube

Universal Fitting

Silicone

Tube

Clamp

OUTSIDE INSIDE

①

②

③

④

PCI Slot Hole

Clamp

IN Compression

Fitting

OUT Compression Fitting

Clamp

Flow Indicator

Press Clip
