5.6 Confirm Correct Installation

5.7 Add Coolant

1) Check that the placement of the product confirms to section 5.1.

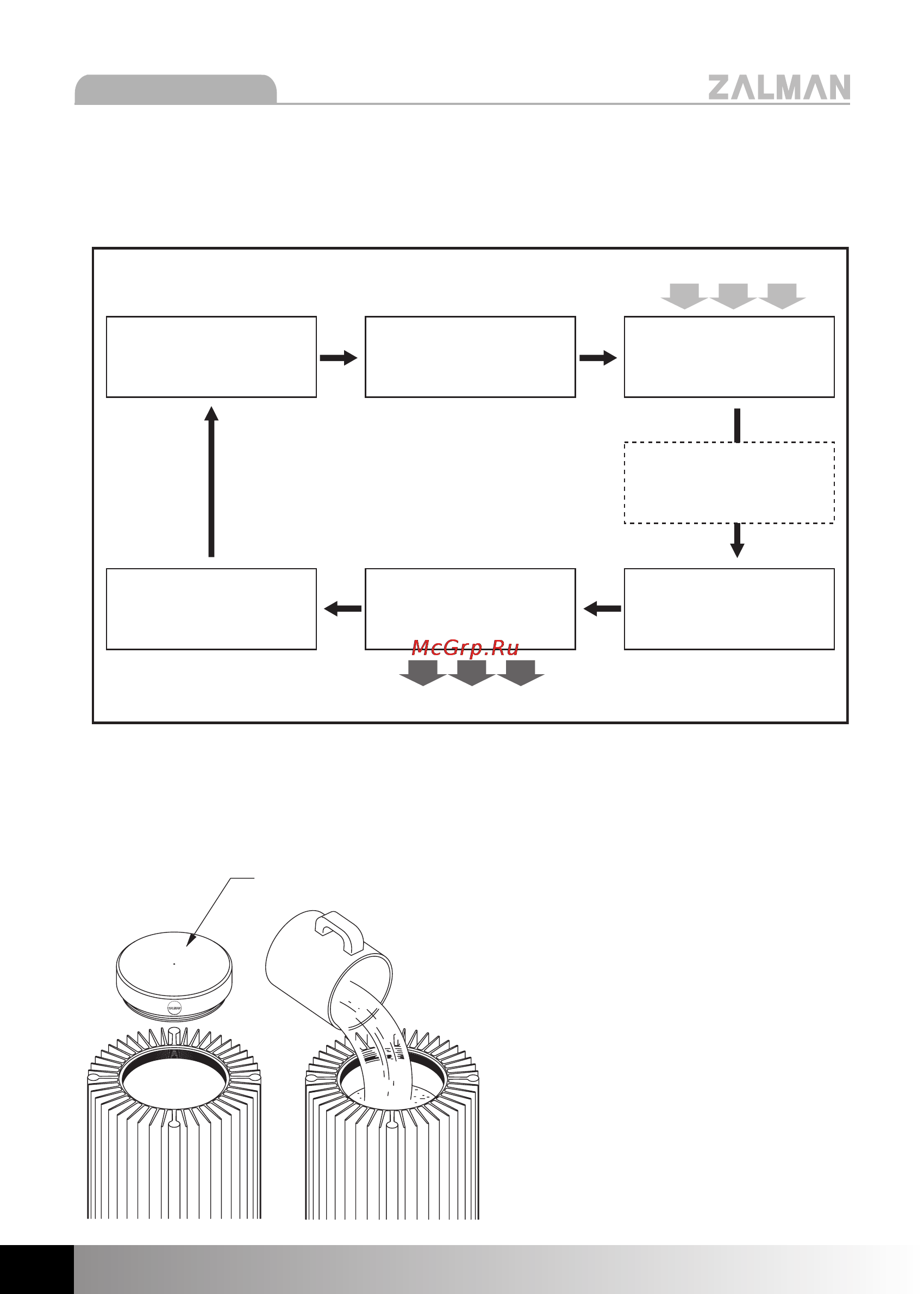

2) Confirm that the coolant circulation path is correct, as shown below.

3) Lightly tug the silicone tube connected to each of the Compression Fittings and the

Universal Fitting to check for loose ends.

1) Take off the Reserator’s cover.

Fill the Reserator to 80~90% of its height.

Distilled water is recommended, but

tap water can be used instead.

Reserator 1’s maximum capacity is 2.5

liters. When adding the coolant, make

sure that no contaminant is introduced.

Reserator OUT Flow Indicator

CPU Water Block

Integrated

Water Pump

Reserator

Reserator IN

GPU Water Block

Radiate Heat

Absorb Heat

Sink Cover
