Connecting Fitting and Silicone Tube - The Easy Way

1) Slide the Fitting Cap over the silicone tube

2) Push the silicone tube all the way inside the Fitting socket.

3) Screw on the Fitting Cap until it is completely fastened.

4) Pull the silicone tube slightly with your hands to see if it is loose. Cut about 100 mm

of the silicone tube and use it around the Fitting Cap to fasten the cap easily.

Be careful not to have the silicone tube fold or twist, as scratches and damage may

lead to leaks.

RESERATOR 1

www.zalman.co.kr www.zalmanusa.com

English

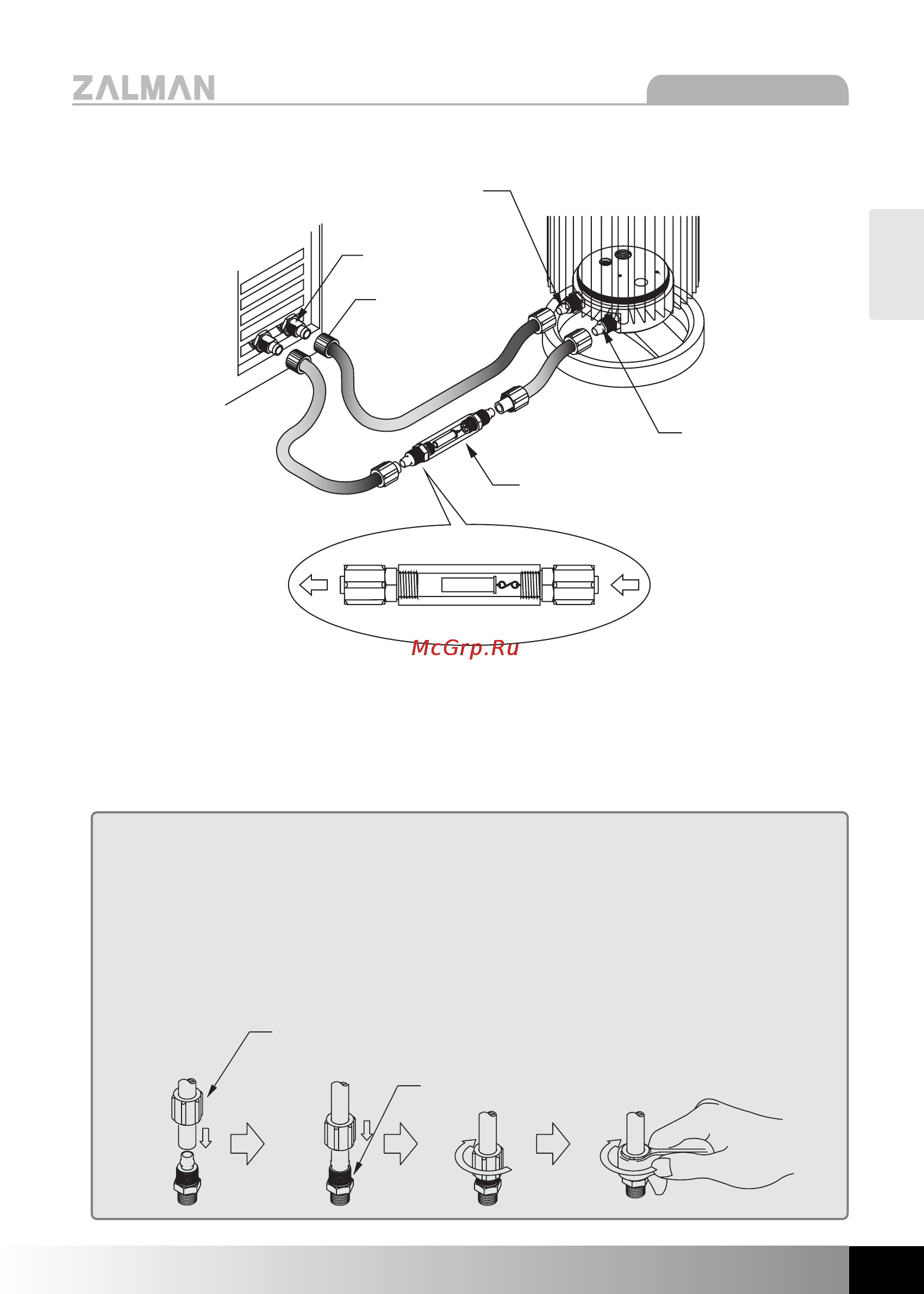

5.5 Connect the Reserator with the Universal Fitting

Using silicone tubes, connect the IN / OUT compressing fittings, the flow indicator, and the

universal fitting as shown above. The flow indicator is used to check the circulation of the

coolant, so it should be placed where it is easily visible.

Note) The flow indicator must be installed in the direction shown.

Fitting Cap

Fitting Socket

IN Compression Fitting

Universal Fitting

Fitting Cap

Flow Indicator

OUT Compression Fitting

IN Compression Fitting OUT Compression Fitting
