Develop ineo 4700P [134/217] Replacing supplies

User's Guide

- 134 -

Replacing supplies

Replacing the toner cartridge

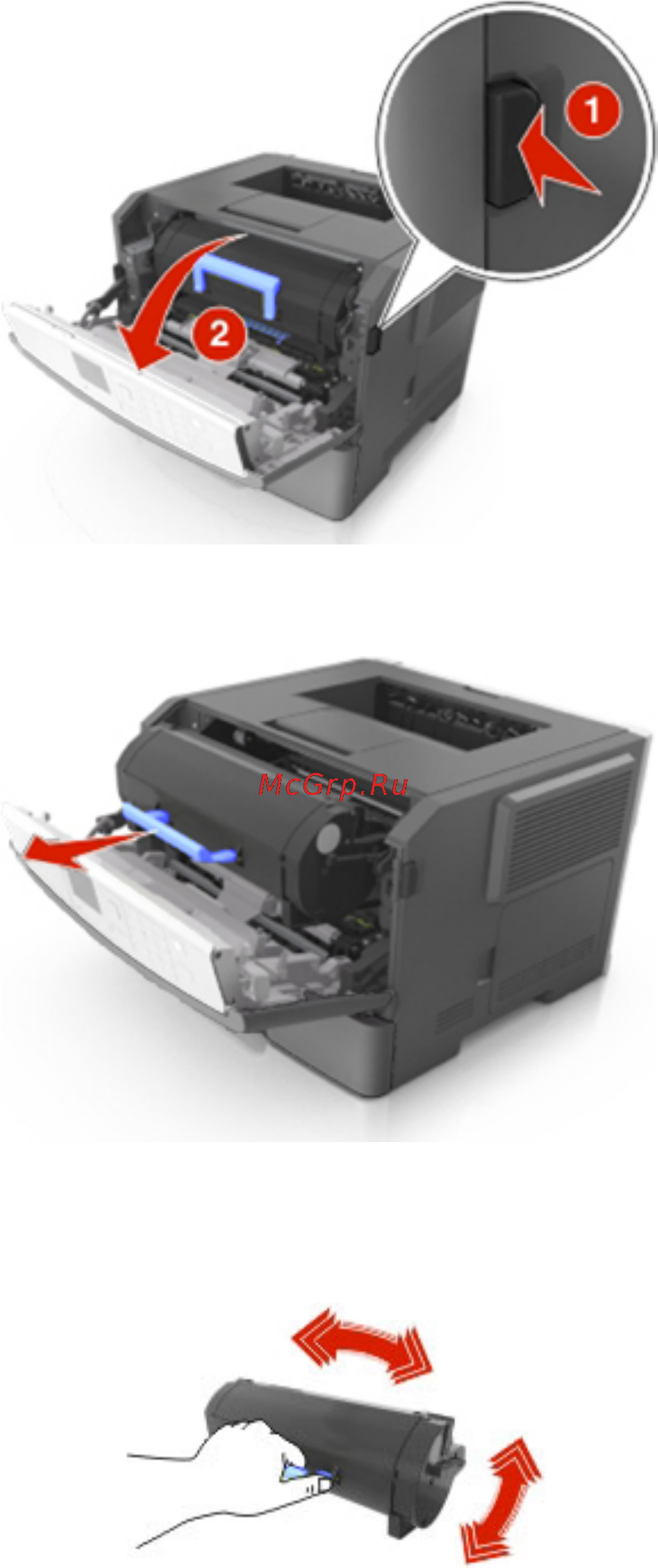

1. Press the button on the right side of the printer, and then open the front door.

2. Pull the toner cartridge out using the handle.

3. Unpack the toner cartridge, and then remove all packing materials.

4. Shake the new cartridge to redistribute the toner.
