Develop ineo 4700P [148/217] X page jam remove tray 1 to clear duplex 23y xx

User's Guide

- 148 -

[x]-page jam, remove tray 1 to clear duplex. [23y.xx]

CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from

a hot component, allow the surface to cool before touching it.

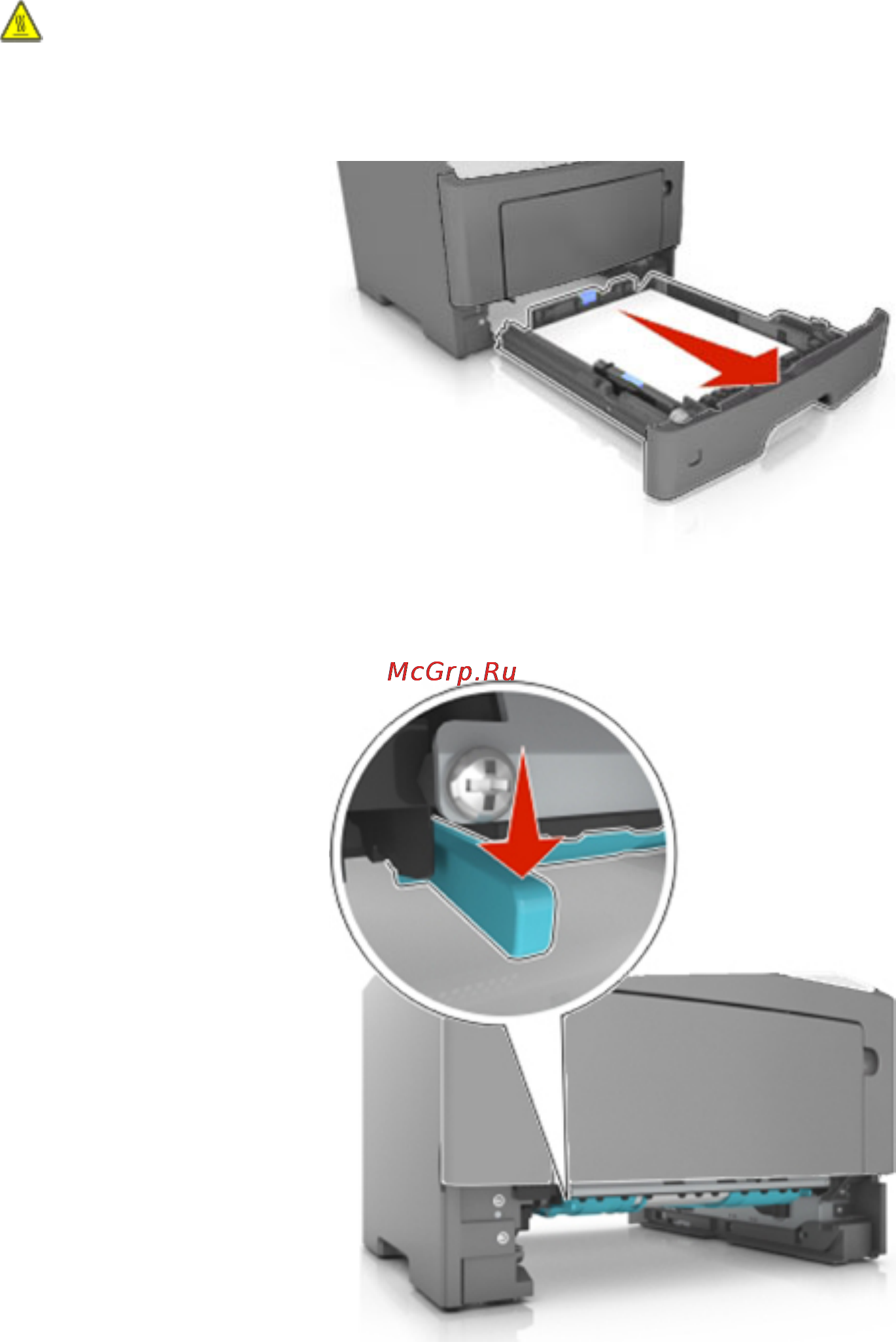

1. Pull the tray completely out of the printer.

2. Locate the blue lever, and then pull it down to release the jam.
