User's Guide

- 146 -

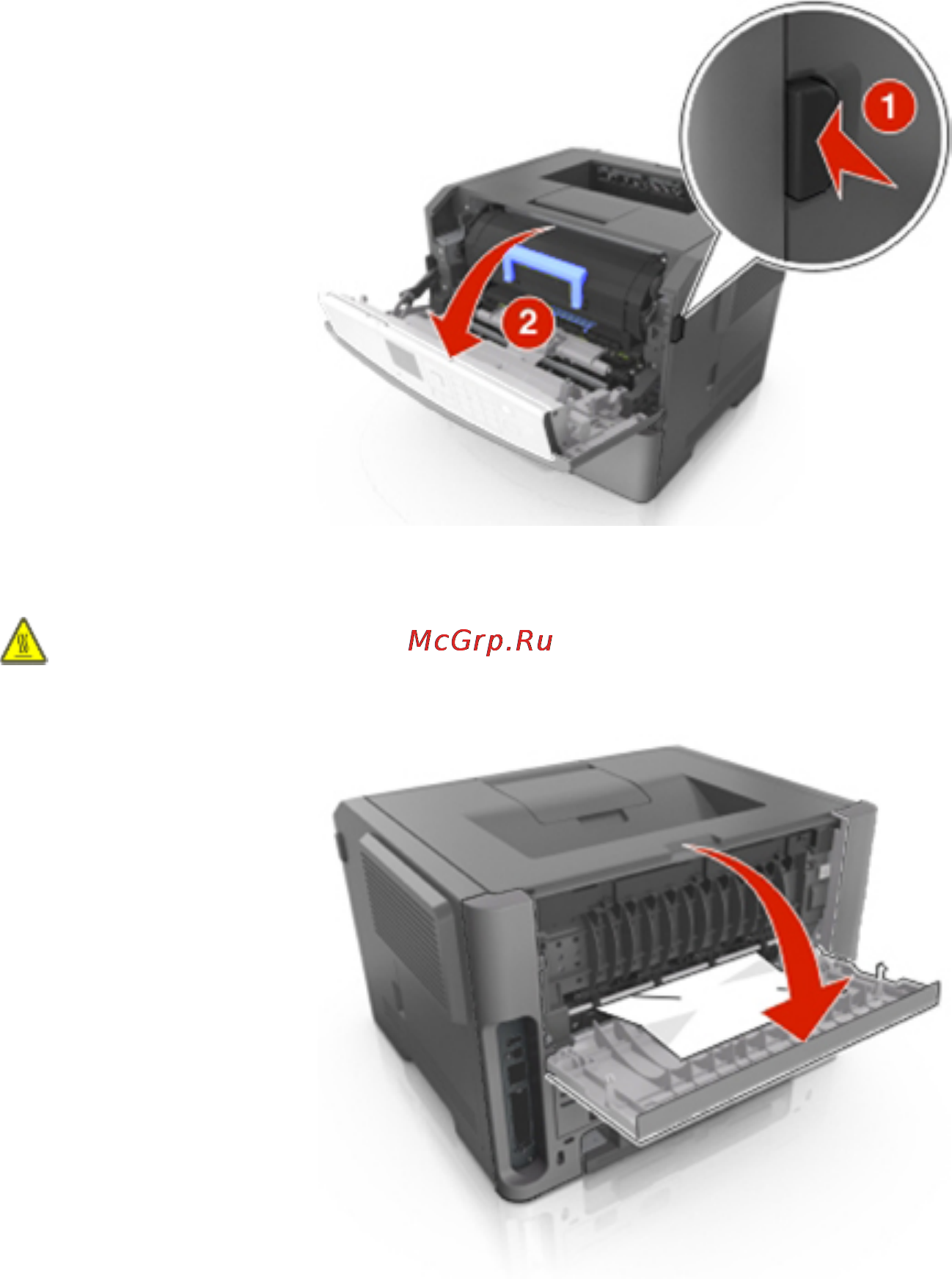

[x]-page jam, open rear door. [20y.xx]

1. Open the front door.

2. Gently pull down the rear door.

CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury

from a hot component, allow the surface to cool before touching it.
