Tc Electronic M350 [10/34] Rear panel
![Tc Electronic M350 [10/34] Rear panel](/views2/1011884/page10/bga.png)
8

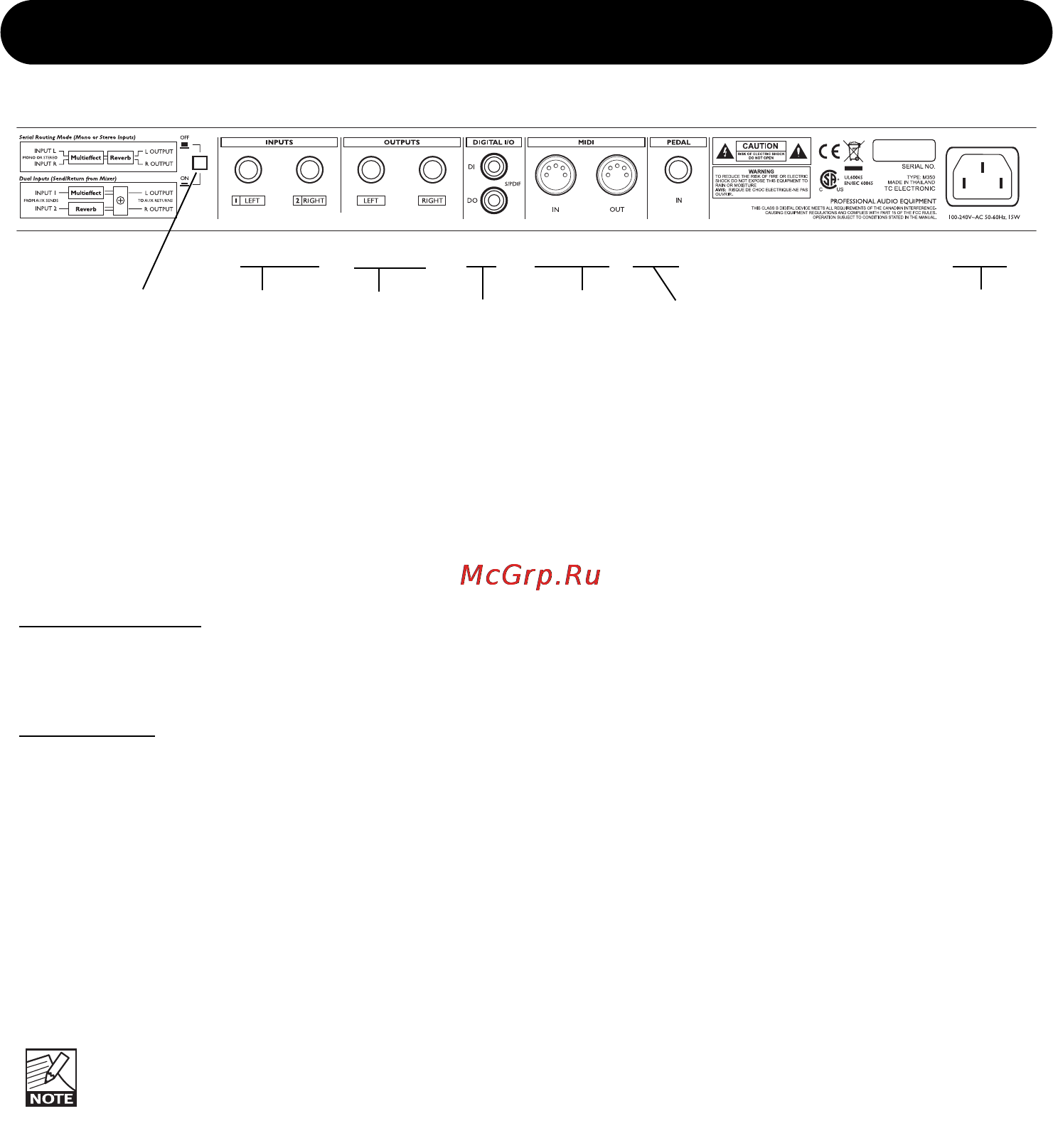

REAR PANEL
Balanced
Jack
Analog
Inputs
Pedal
Input
MIDI
In/Out
Routing Switch
Balanced
Jack
Analog
Outputs
Digital
S/PDIF
Input/
Output
Power
Input
100 – 240V
ROUTING switch
Switches between Dual Input and Serial routing
modes.
Dual Input mode:
Switch is in, and the green LED on the front
panel is on.
Serial mode:
Switch is out, and the green LED on the front
panel is off.
You can learn much more about these routing
options on page 23. See also the suggested
setups at pages 10-15.
Analog input
Analog input on 1/4 inch connectors.
Use left input for connecting a mono signal.
If you connect a source to the left input
only and use Dual Input mode, the input
signal is fed to both the Delay/Effects
engine and the Reverb engine. This means you
can then use the M350 as two independent
effect units with a common output.
Analog output
Analog output is a stereo output on two 1/4"
jack connectors.
Digital Input/Output
M350 can lock on an incoming 44.1 or 48kHz
digital signal via the S/PDIF digital in
RCA/phono connector.
M350 always sends on digital out.
- in analog mode, the digital output’s clock rate
is 44.1kHz.
- when locked to a 44.1kHz digital input signal,
the digital output’s clock rate is 44.1kHz.
- when locked to a 48kHz digital input signal,
the digital output’s clock rate is 48kHz.
Pedal input
The Pedal input allows you to bypass and “tap”
the global tempo via momentary switches. The
global tempo can be used to set delay time.
The connection is a 1/4" stereo jack with
Bypass on tip and Tap Tempo on ring.
