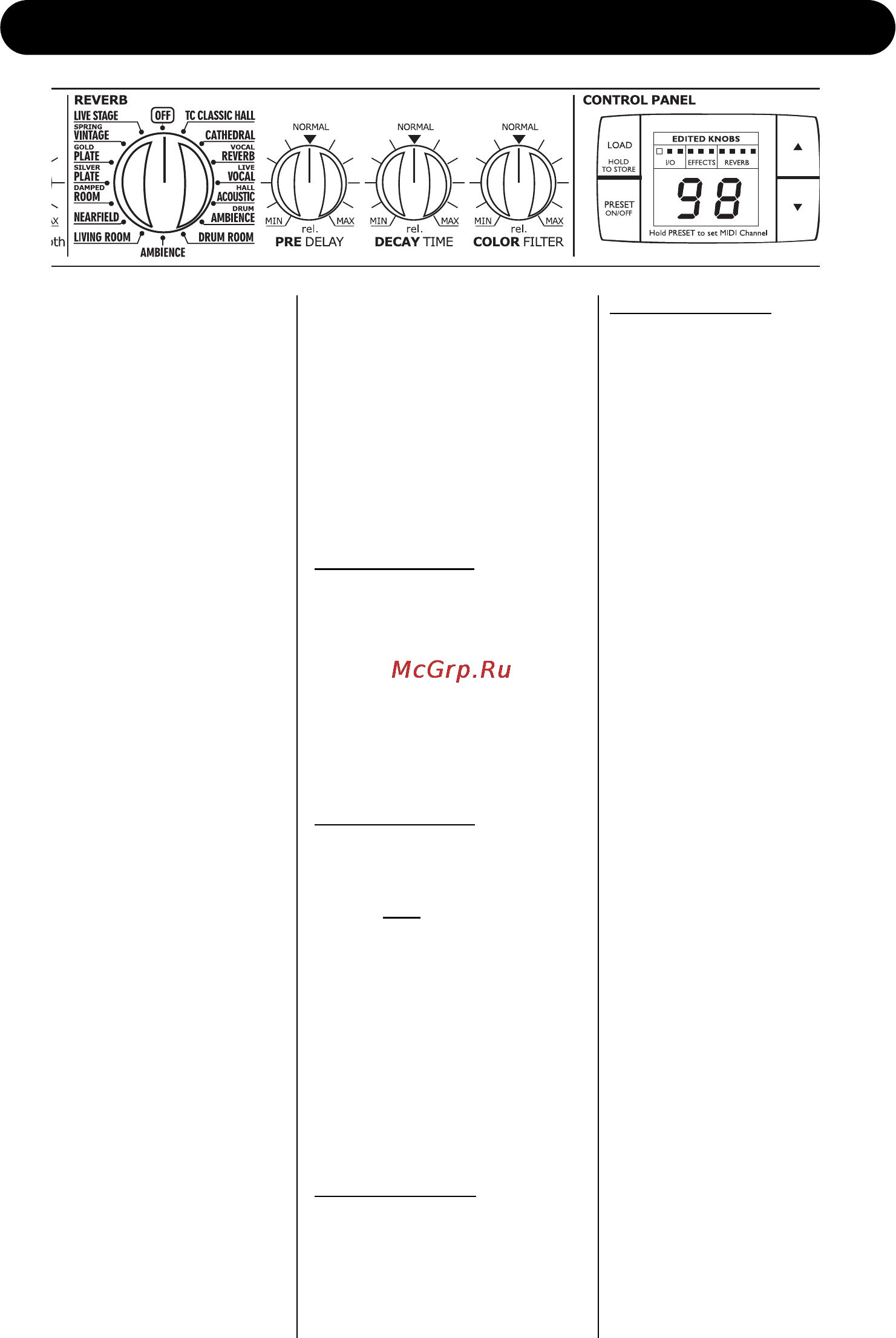

FRONT PANEL OVERVIEW
7
REVERB Type selector
Selects between 15 different
reverb types or sets the
Reverb engine to “Off”.
PRE DELAY knob
Controls the relative pre delay
of the selected Reverb.
DECAY knob
Controls the relative decay of
the selected reverb.
COLOR knob
Controls the relative color of
the selected reverb.
LOAD/HOLD TO STORE key
This key has two functions:
• Press once to load the
preset selected via the
CURSOR UP/DOWN keys.
• Press and hold to store the
current preset.
PRESET ON/OFF key
The M350 has two preset
modes:
Preset “Of
f” mode:
The display reads “- -”.
In this mode the M350 will play
effects according to the front
panel controls.
When going from preset “On”
to preset “Off” mode the
effects will always be updated
according to the positions of
the front controls.
Preset “On” mode:
The display reads a specific
preset number.
In this mode you can recall
various user presets by using
the UP/DOWN arrows followed
by LOAD.
(Note that the M350 holds no
stored factory presets apart
from the default settings in the
various effects).
Toggling between the preset
On/ preset Off modes
generates two situations:
From “On” to “Of
f”:
The preset is updated
according to the positions of
the front controls.
From “Of
f” to “On”:
The previously recalled preset
number starts blinking in the
display while the M350 still
processes the signal according
to the front controls. To
actually load the preset, press
LOAD.
Set MIDI channel
Press and hold the PRESET
ON/OFF key approx. 2.5 sec.
Now set the desired MIDI
channel 1 to 16 or “o” for
OMNI (receives on all
channels) or OF for Off, using
the ARROW UP/DOWN keys.
Via this menu a Bulk Dump
can also be performed (see
page 31).
Press PRESET ON/OFF key
once to exit the MIDI channels
set mode.
EDITED KNOBS LEDs
The LEDs are relevant in
Preset “On” mode only. They
indicate when the front
controls do not match the
settings stored in the actually
recalled preset.
ARROW UP/DOWN keys
Scroll between presets when
in preset “On” mode.
