Connecting and Setting up the M350

Setting up the M350 is very easy. It is, however, important to connect and setup the M350 correctly

according to your application. Setting up basically means: connecting, selecting one of the two

routing options via the switch on the rear panel and finally setting the MIX control on the front panel.

Find the setup you are about to create or similar on the following two pages – and follow the

instructions.

Dual Input mode

This setup applies to a mixer with two (or

more) AUX sends. It utilizes the two effect

sections in the M350 as two separate effects

with a common output.

• On the rear panel, select Dual Input routing

mode by leaving the switch in the “in” position.

• Connect AUX 1 send to the M350’s left input.

• Connect AUX 2 send to the M350’s right

input.

• Connect the M350’s left and right outputs to

the stereo AUX L/R returns of either AUX 1

or AUX 2.

• Set MIX to 100% wet, as in this setup you do

not

want the direct signal to pass through the

M350.

• Set input level to 12 o’clock position.

• Set BALANCE to 12 o’clock position.

• Select Reverb type and Delay/Effects type

using the selectors on the front panel.

• Set the AUX return level on the mixer to

approx. 50%.

• Now slowly turn up the AUX sends 1 and 2

on the mixer for the channels you wish to

add effect to.

• Adjust/fine-tune the M350 input level so the

INPUT LED on the front panel often is

orange but only rarely peaks at red color.

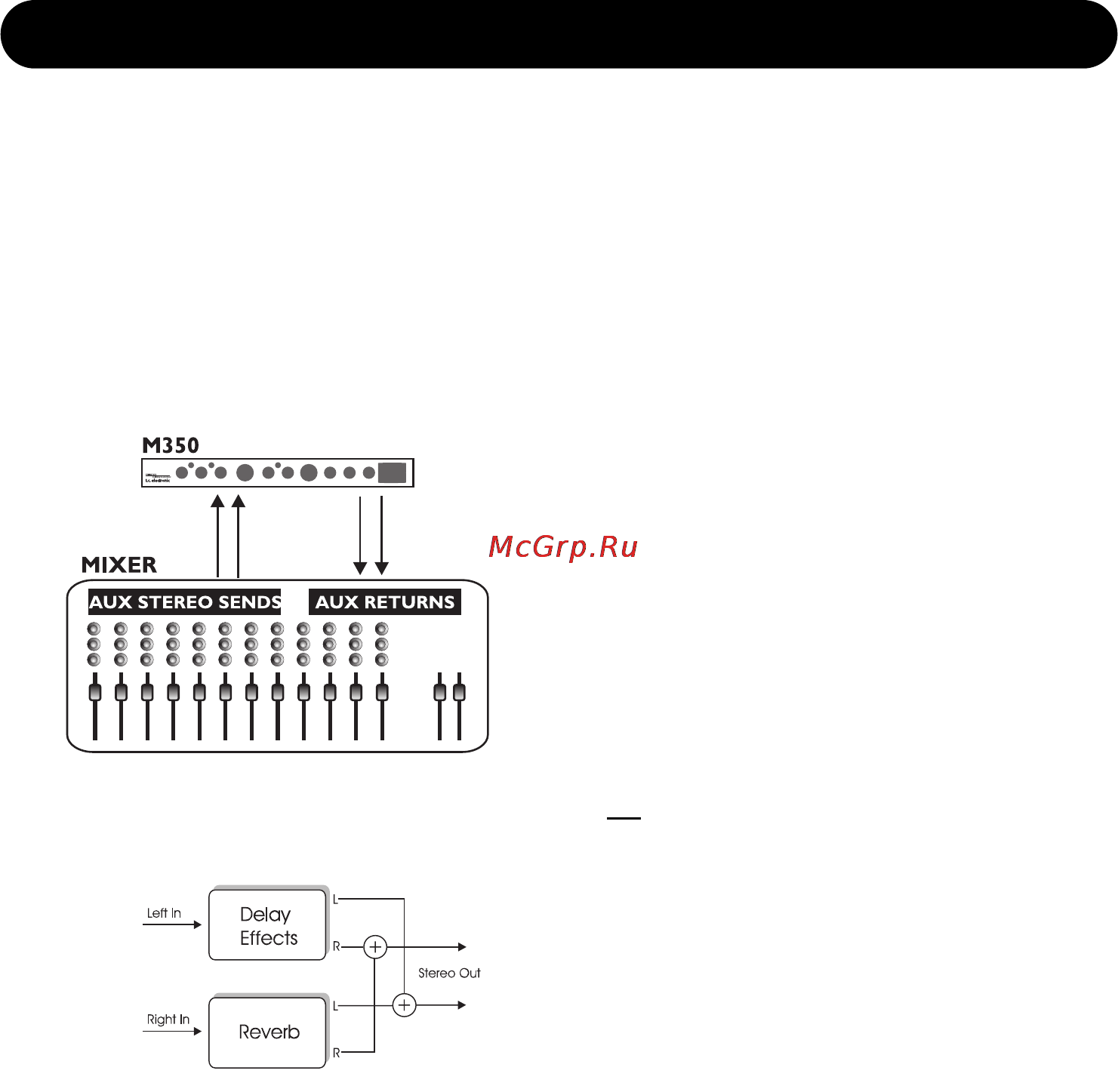

Setup

M350 Routing Schematic
