ROUTINGS

Parallel Routing (analog input only)

This routing gives you the opportunity to have

two effects in parallel on a single mono signal.

• Select the Dual Inputs routing by leaving the

ROUTING switch on the rear panel in “In”

position.

• Connect a mono signal to left input.

The input signal is now split and fed to both the

Delay/Effects engine and the Reverb engine.

Both engines then use left and right outputs as

common outputs.

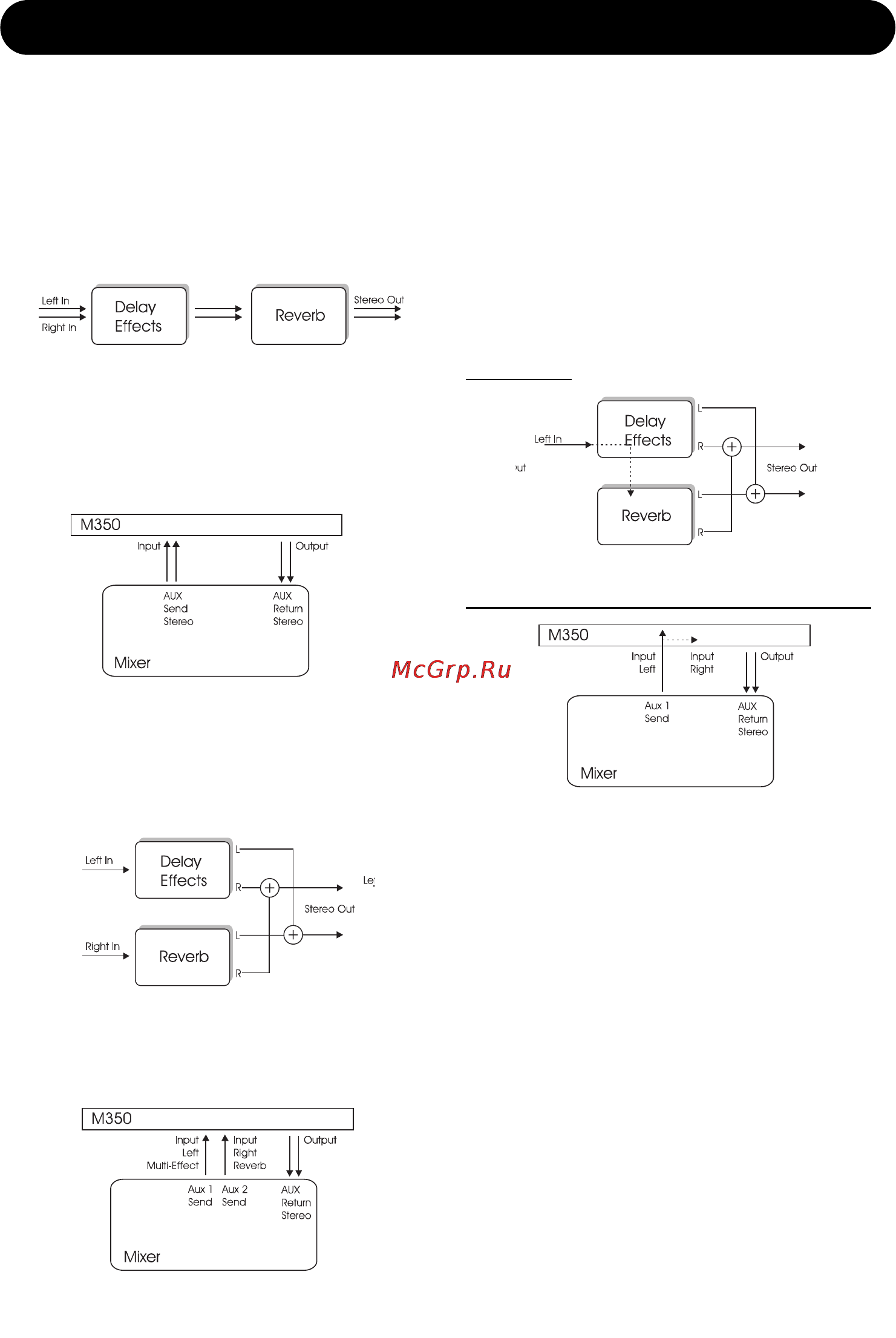

Signal Flow:

Connect the M350 according to this illustration:

Also see setup examples on pages 10 to 15.

It is essential that you have selected the correct

routing according to your setup:

Serial Routing

With this routing, the two engines are used as a

chain of two effects where the signal first

passes the Delay/Effects engine and thereafter

the Reverb engine.

This is the routing to select when you want to

add reverb to a signal after the signal has been

processed by the Delay/Effects engine.

Select the Serial Routing on the rear panel and

connect the M350 according to this illustration:

Dual Input routing mode

By routing two different signals to the two effect

engines, you can utilize the M350 as two

separate effect units with a common output.

Use this if you wish to use the M350 e.g. to add

delay to a guitar on one channel and reverb to

a vocal on another channel.
